tach output, 0-10V output, PWM speed control ....

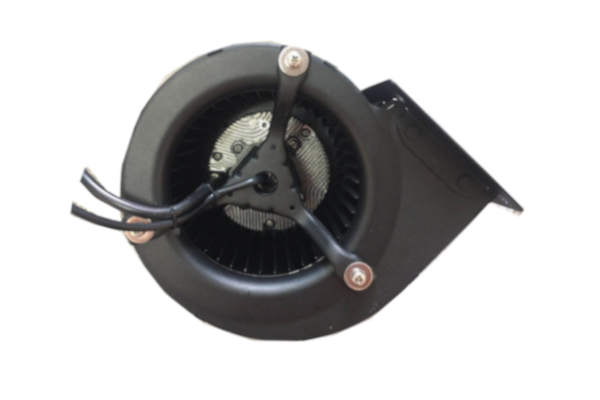

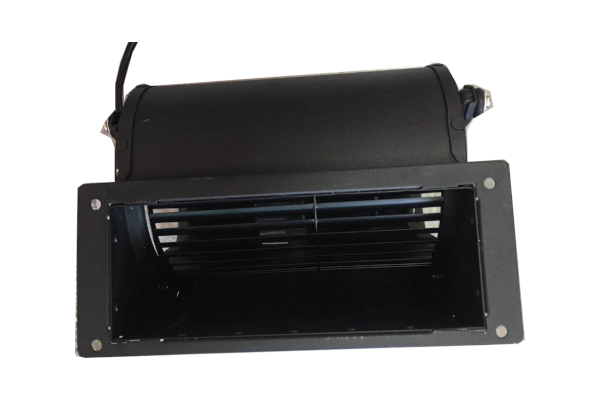

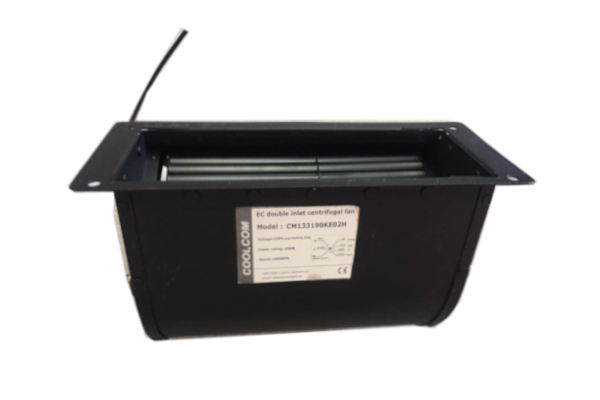

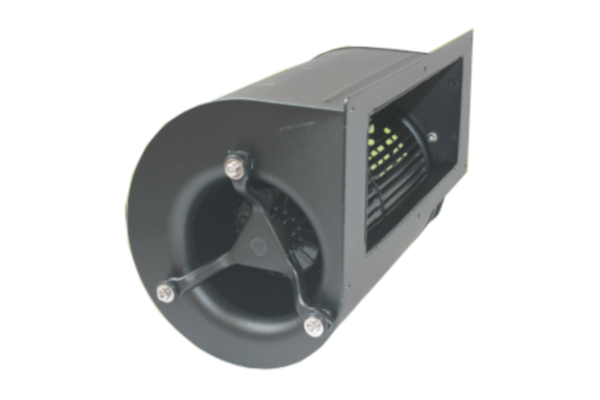

COOLCOM EC fan with high efficiency, low power consumption, large air value and quiet noise level , low power fan electronically commutated providing the efficiency of a DC fan with the simplicity of connecting to an AC power supply. Available with global voltage input accommodating 100VAC to 240VAC, allowing for a single model to be used in products for both 115VAC and 230VAC applications.

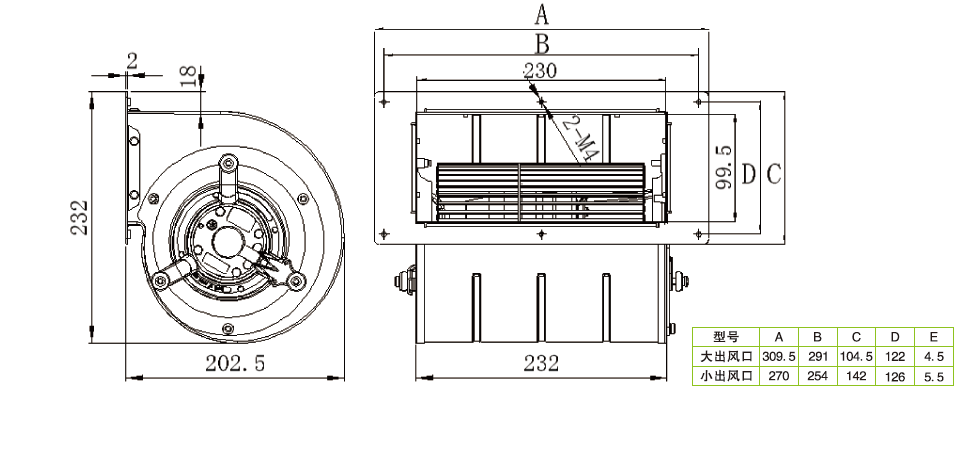

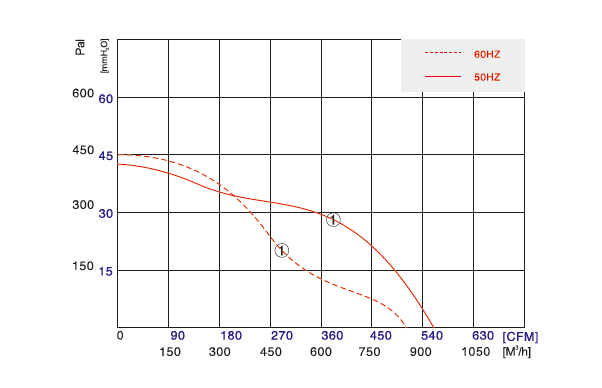

| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CFM) | Pressure(Pa) | Noise(dBA) | Weight(KG) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM133190KH01-EC | 133*190 | ball | 115 | 1.5 | 1350 | 565CFM | 435 pa | 56 dBA | 2.8KG | |
| CM133190KH02-EC | 133*190 | ball | 230 ( 50/60hz) | 1/1.3 | 1350/1550 | 548 CFM | 435/440 pa | 56/59 dBA | 2.8KG | |
| CM133190KH03H-EC | 133*190 | ball | 380 | 0.3 | 1350 | 536 CFM | 435 pa | 55 dBA | 2.8KG | |
| CM133190KH04-EC | 133*190 | ball | 440 | 0.3 | 1350 | 536 CFM | 435 pa | 56 dBA | 2.8KG |
