steel,aluminum,Φ80mm impeller diameter

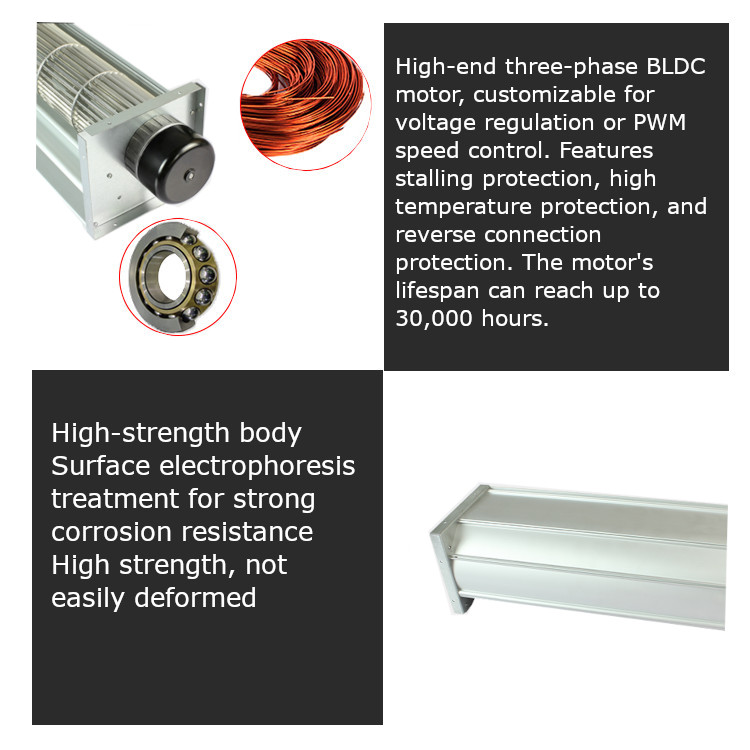

Motor type : 72mm/92mm Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 80mm
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C

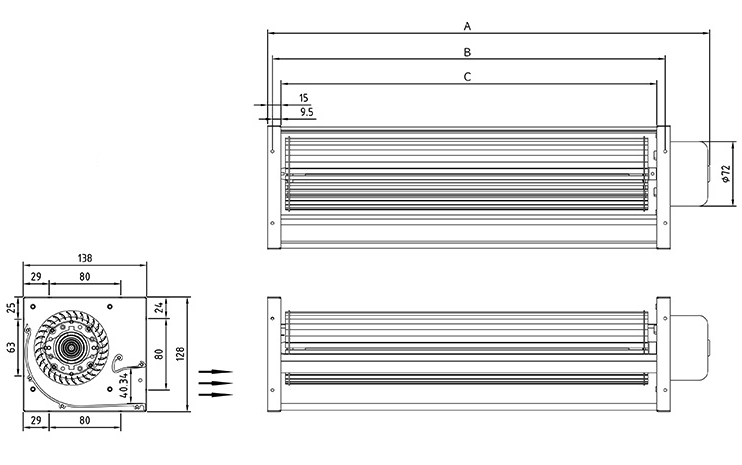

| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(rpm) | Air Flow(m3/h) | Pressure(Pa) | Noise(db) | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM80250HB24-PA | A=250 B=269 C=333 | BALL*3 | 24V | 0.8 | 1800 | 380 | 6.8 | 54 | - | |
| CM80300HB24-PA | A=300 B=319 C=383 | BALL*3 | 24V | 1.0 | 1800 | 460 | 6.8 | 54 | - | |
| CM80360HB24-PA | A=360 B=379 C=443 | BALL*3 | 24V | 1.35 | 1800 | 550 | 6.8 | 54 | - | |
| CM80420HB24-PA | A=420 B=439 C=503 | BALL*3 | 24V | 1.5 | 1800 | 650 | 6.8 | 55 | - | |
| CM80440HB24-PA | A=440 B=459 C=423 | BALL*3 | 24V | 1.6 | 1800 | 680 | 6.8 | 55 | - | |
| CM80520HB24-PA | A=520 B=539 C=603 | BALL*3 | 24V | 1.9 | 1800 | 800 | 6.8 | 56 | - | |
| CM80620HB24-PA | A=620 B=639 C=703 | BALL*3 | 24V | 1.9 | 1700 | 960 | 6.5 | 56 | - | |
| CM80720HB24-PA | A=720 B=739 C=803 | BALL*3 | 24V | 1.5 | 1600 | 920 | 6 | 56 | - |
