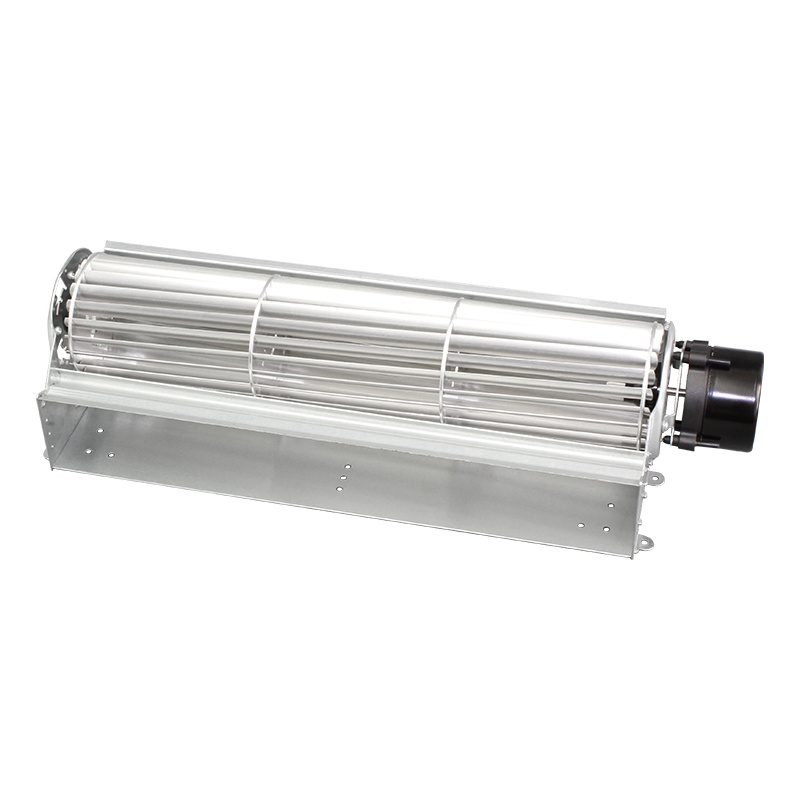

steel,aluminum,Φ65mm impeller diameter
Motor type : Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 60mm
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Blower | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM65190HB12-PA | A=253 B=200 C=190 | BALL | 12 | 0.43 | 1700 | 160 | 29 | 44 | Single | |
| CM65190HB24-PA | A=253 B=200 C=190 | BALL | 24 | 0.23 | 1700 | 160 | 29 | 44 | Single | |
| CM65240HB12-PA | A=305 B=252 C=242 | BALL | 12 | 0.56 | 1600 | 200 | 28 | 43 | Single | |
| CM65240HB24-PA | A=305 B=252 C=242 | BALL | 24 | 0.29 | 1600 | 200 | 28 | 43 | Single | |
| CM65300HB12-PA | A=365 B=312 C=302 | BALL | 12 | 0.64 | 1500 | 255 | 27 | 43 | Single | |
| CM65300HB24-PA | A=365 B=312 C=302 | BALL | 24 | 0.33 | 1500 | 255 | 27 | 43 | Single | |
| CM65360HB12-PA | A=425 B=372 C=362 | BALL | 12 | 0.67 | 1400 | 290 | 26 | 42 | Single | |
| CM65360HB24-PA | A=425 B=372 C=362 | BALL | 24 | 0.34 | 1400 | 290 | 26 | 42 | Single | |
| CM65420HB12-PA | A=485 B=432 C=422 | BALL | 12 | 0.76 | 1300 | 330 | 25 | 41 | Single | |
| CM65420HB24-PA | A=485 B=432 C=422 | BALL | 24 | 0.4 | 1300 | 330 | 25 | 41 | Single |
