steel,aluminum,Φ60mm impeller diameter
Motor type : 50mm or 72mm Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 60mm
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C

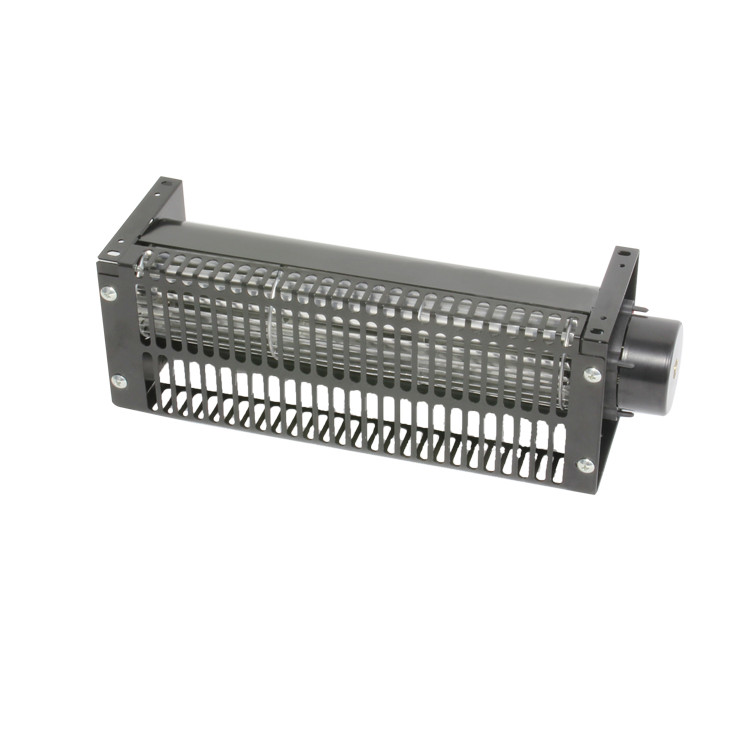

coolcom cross-flow fans with high air flow value and very good noise characteristics . Application areas:building Radator, air purifier, Stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. with long life span more than 60Khours when operated in room temperature,also compatible with a high operating temperature
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(m3/h) | Pressure(pa) | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM60120HB12-PF | A=186 B=138 C=123 | BALL*3 | 12 | 0.74 | 2600 | 102 | 52 | 45 | - | |
| CM60120HB24-PF | A=186 B=138 C=123 | BALL*3 | 24 | 0.35 | 2600 | 102 | 52 | 45 | - | |
| CM60180HB12-PF | A=246 B=199 C=184 | BALL*3 | 12 | 1.00 | 2400 | 150 | 47 | 46 | - | |
| CM60180HB24-PF | A=246 B=199 C=184 | BALL*3 | 24 | 0.47 | 2350 | 145 | 47 | 45 | - | |
| CM60240HB12-PF | A=307 B=259 C=245 | BALL*3 | 12 | 1.20 | 2200 | 210 | 43 | 45 | - | |
| CM60240HB24-PF | A=307 B=259 C=245 | BALL*3 | 24 | 0.55 | 2200 | 210 | 43 | 45 | - | |
| CM60300HB12-PF | A=366 B=321 C=306 | BALL*3 | 12 | 1.35 | 2100 | 250 | 41 | 43 | - | |
| CM60300HB24-PF | A=368 B=321 C=306 | BALL*3 | 24 | 0.63 | 2000 | 240 | 41 | 43 | - | |
| CM60360HB12-PF | A=430 B=383 C=368 | BALL*3 | 12 | 1.45 | 2000 | 290 | 41 | 43 | - | |
| CM60360HB24-PF | A=430 B=383 C=368 | BALL*3 | 24 | 0.67 | 1900 | 280 | 38 | 42 | - | |
| CM60420HB12-PF | A=492 B=444 C=429 | BALL*3 | 12 | 1.53 | 1900 | 300 | 38 | 42 | - | |
| CM60420HB24-PF | A=492 B=444 C=429 | BALL*3 | 24 | 0.73 | 1800 | 290 | 36 | 42 | - | |
| CM60420UB24-PF | A=492 B=444 C=429 | BALL*3 | 24 | 2.55 | 3200 | 537 | 86 | 50 | - |
