steel,aluminum,Φ60mm impeller diameter
Motor type : 72mm Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 60mm
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C

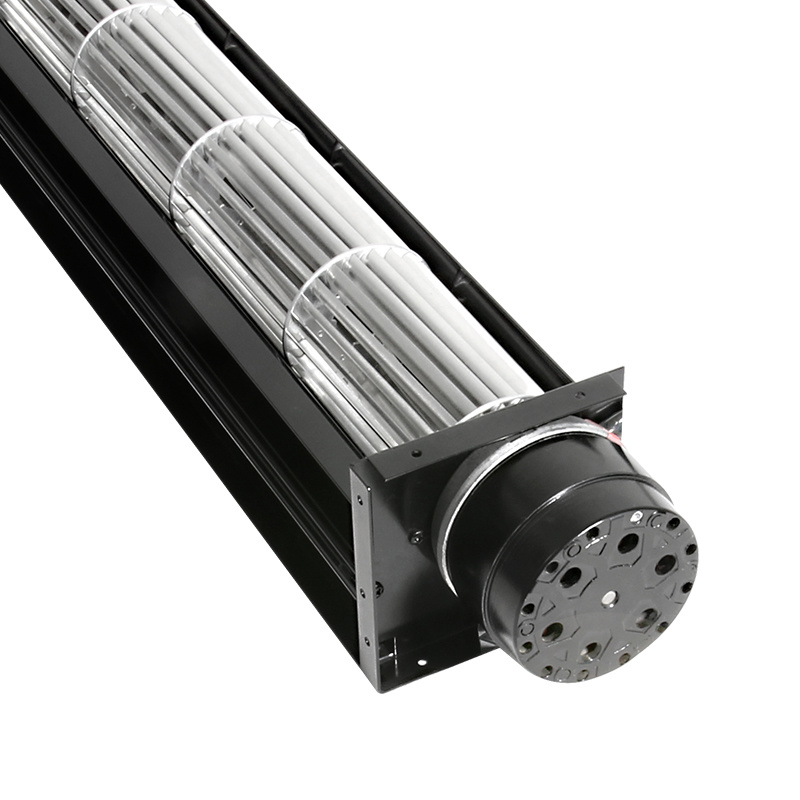

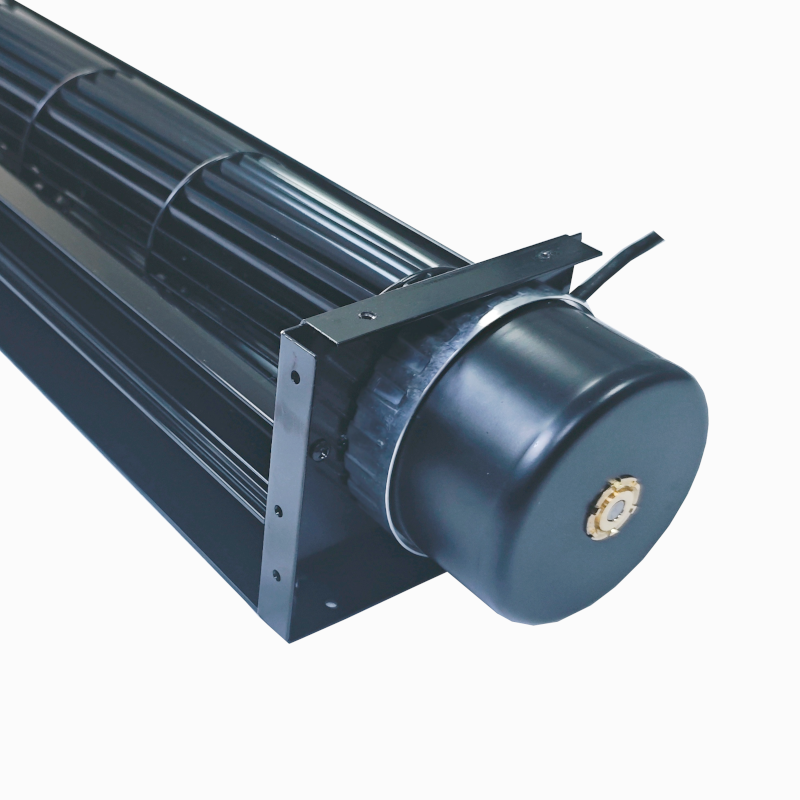

coolcom Tangential fan with high air flow value and very good noise characteristics . Application areas:building Radator, air purifier, Stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. with long life span more than 60Khours when operated in room temperature,also compatible with a high operating temperature

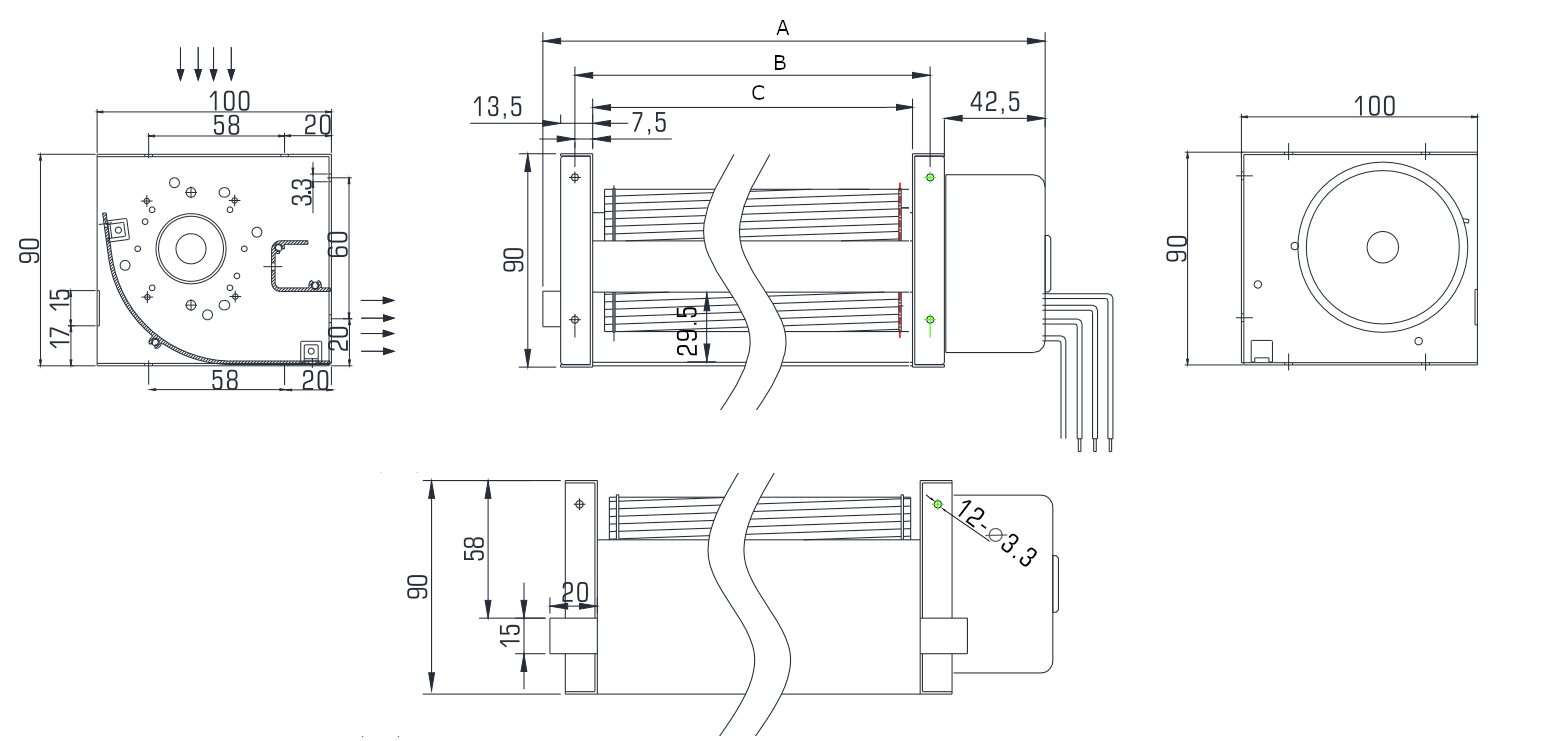

| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Blower | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM60520HB24-LL | A=600 B=535 C=520 | BALL | 24 | 0.6 | 1800 | 330 | 50 | 47 | Single | |
| CM60610HB24-LL | A=690 B=625 C=610 | BALL | 24 | 0.6 | 1800 | 380 | 50 | 47 | Single |
