steel,aluminum,Φ60mm impeller diameter
Motor type : 50mm or 72mm Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 60mm
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C

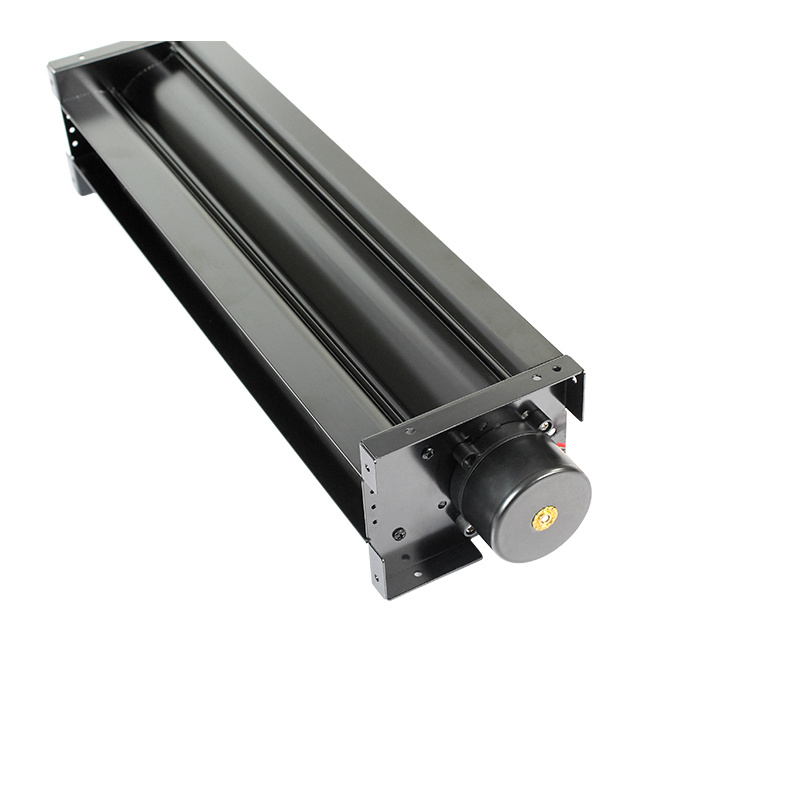

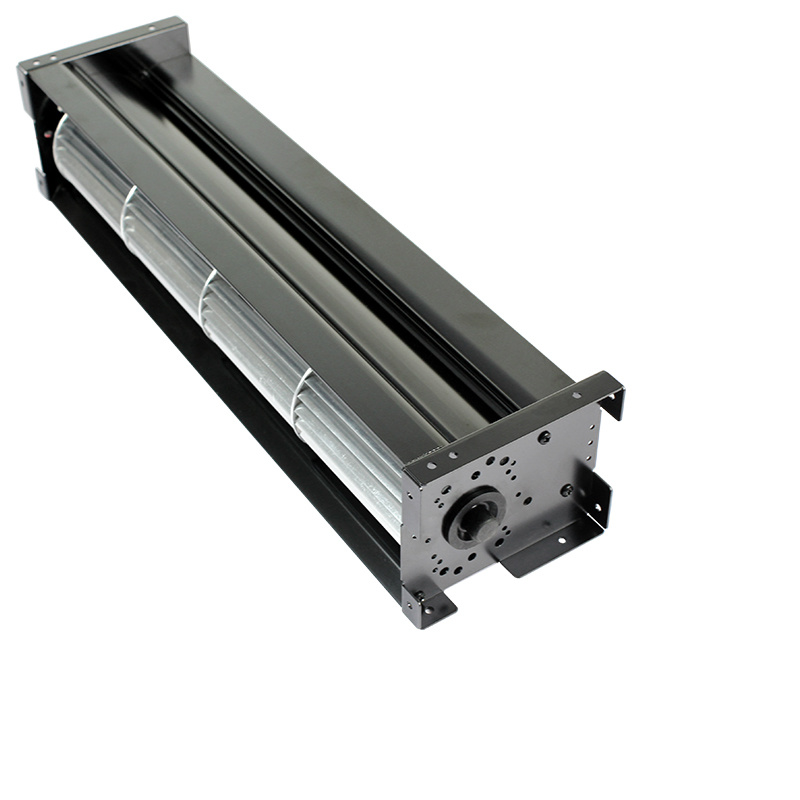

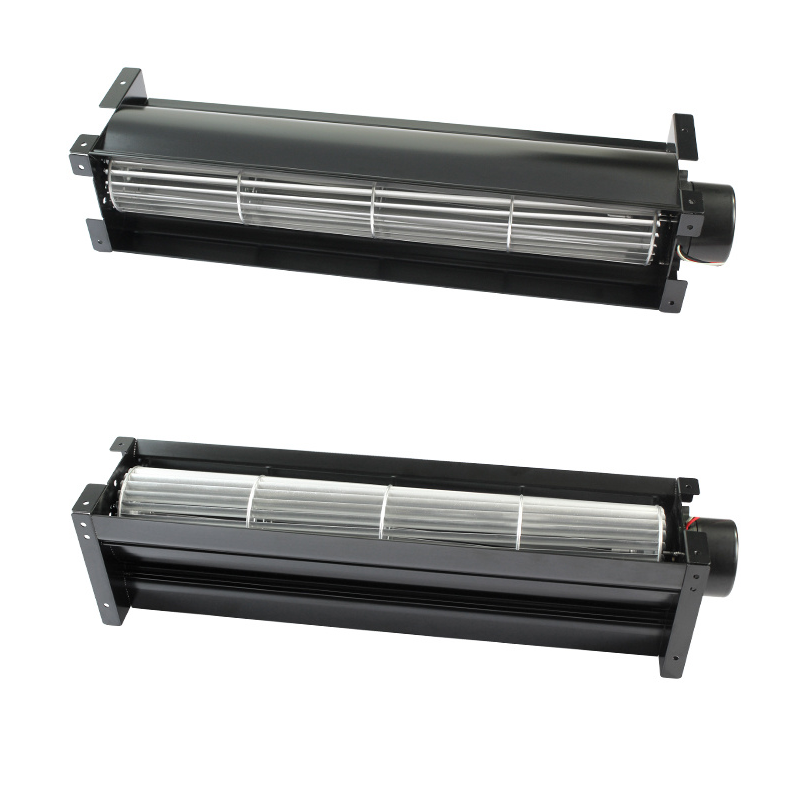

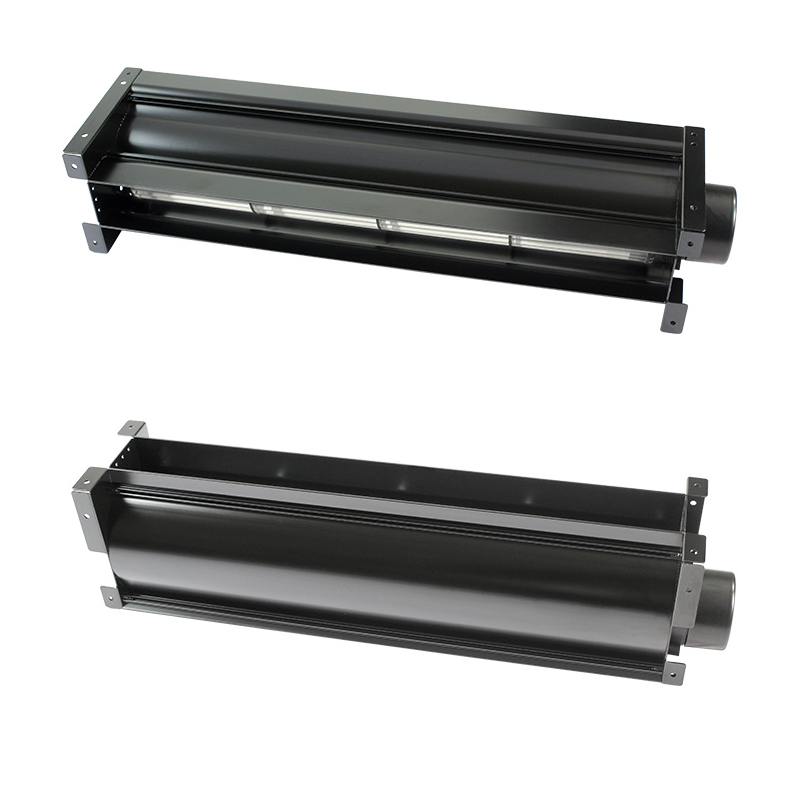

coolcom Tangential fan with high air flow value and very good noise characteristics . Application areas:building Radator, air purifier, Stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. with long life span more than 60Khours when operated in room temperature,also compatible with a high operating temperature

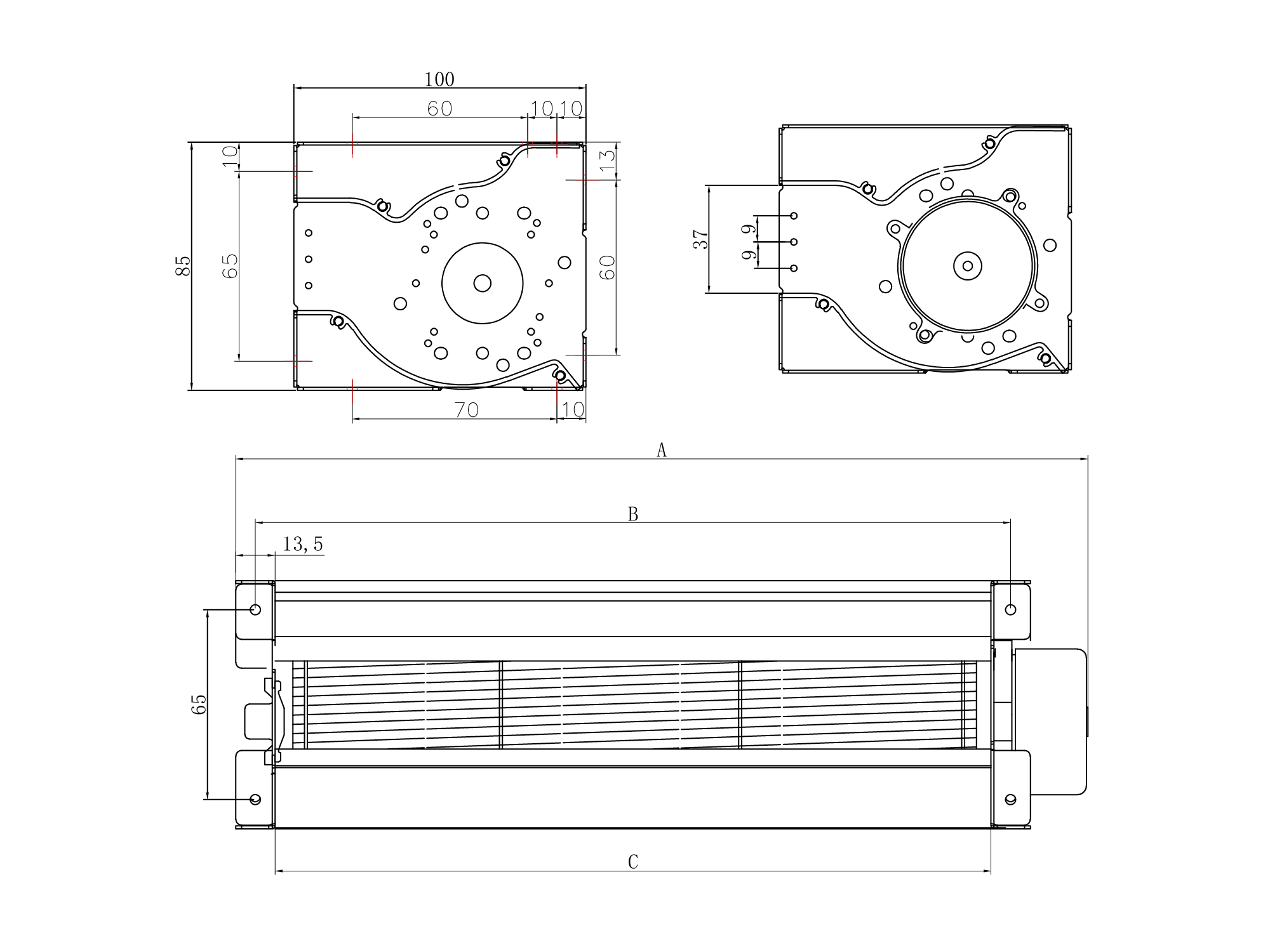

| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Blower | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM60250HB24-DC | A=292 B=258.5 C=245 | BALL | 24V | 0.17 | 2000 | 145 | 20 | 32 | Single | |
| CM60300HB24-DC | A=347 B=313.5 C=300 | BALL | 24V | 0.21 | 2000 | 175 | 20 | 32 | Single | |
| CM60360HB24-DC | A=415 B=381.5 C=268 | BALL | 24V | 0.22 | 2000 | 208 | 20 | 33 | Single | |
| CM60420HB24-DC | A=472 B=438.5 C=425 | BALL | 24V | 0.24 | 2000 | 245 | 20 | 33 | Single | |
| CM60520HB24-DC | A=567 B=533.5 C=520 | BALL | 24V | 0.26 | 2000 | 300 | 20 | 34 | Single | |
| CM60610HB24-DC | A=657 B=623.5 C=610 | BALL | 24V | 0.31 | 2000 | 350 | 20 | 34 | Single |
