steel,aluminum,Φ50mm impeller diameter
Motor type : Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 50mm
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C

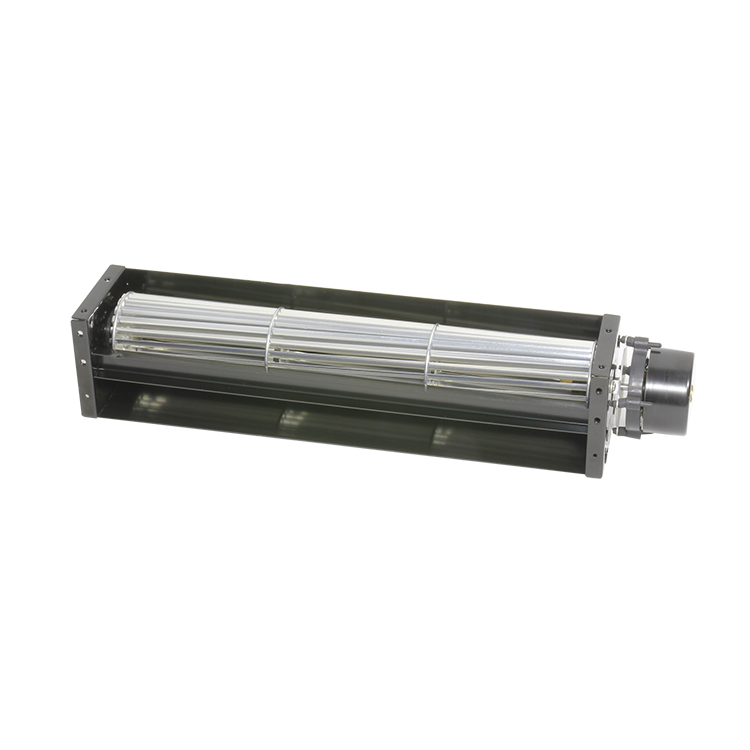

coolcom cross-flow fans with high air flow value and very good noise characteristics . Application areas:building Radator, air purifier, Stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. with long life span more than 60Khours when operated in room temperature,also compatible with a high operating temperature
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(m3/h) | Pressure(Pa) | Noise(dB） | Weight（g） | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM50090HB12-PB | A=166 B=108 C=98 | NMB BALL*3 | 12 | 0.20 | 2400 | 60 | 40 | 34 | 320 | |
| CM50090HB24-PB | A=166 B=108 C=98 | NMB BALL*3 | 24 | 0.11 | 2400 | 60 | 40 | 34 | 320 | |
| CM50150HB12-PB | A=226 B=168 C=158 | NMB BALL*3 | 12 | 0.44 | 2400 | 110 | 45 | 42 | 600 | |
| CM50150HB24-PB | A=226 B=168 C=158 | NMB BALL*3 | 24 | 0.24 | 2400 | 110 | 45 | 42 | 600 | |
| CM50250HB12-PB | A=310 B=258 C=248 | NMB BALL*3 | 12 | 0.66 | 2400 | 150 | 45 | 43 | 650 | |
| CM50250HB24-PB | A=310 B=258 C=248 | NMB BALL*3 | 24 | 0.33 | 2400 | 150 | 45 | 43 | 650 | |
| CM50290HB12-PB | A=363 B=308 C=290 | NMB BALL*3 | 12 | 0.91 | 2400 | 210 | 45 | 44 | 700 | |
| CM50290HB24-PB | A=363 B=308 C=290 | NMB BALL*3 | 24 | 0.43 | 2400 | 210 | 45 | 44 | 700 | |
| CM50350HB12-PB | A=422 B=368 C=358 | NMB BALL*3 | 12 | 1.13 | 2400 | 330 | 45 | 44 | 770 | |
| CM50350HB24-PB | A=422 B=368 C=358 | NMB BALL*3 | 24 | 0.57 | 2400 | 330 | 45 | 44 | 770 | |
| CM50420HB12-PB | A=476 B=428 C=418 | NMB BALL*3 | 12 | 1.16 | 2400 | 395 | 45 | 43 | 850 | |
| CM50420HB24-PB | A=476 B=428 C=418 | NMB BALL*3 | 24 | 0.61 | 2400 | 395 | 45 | 43 | 850 |
