steel,aluminum,Φ43mm impeller diameter
Motor type : Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 43mm
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C

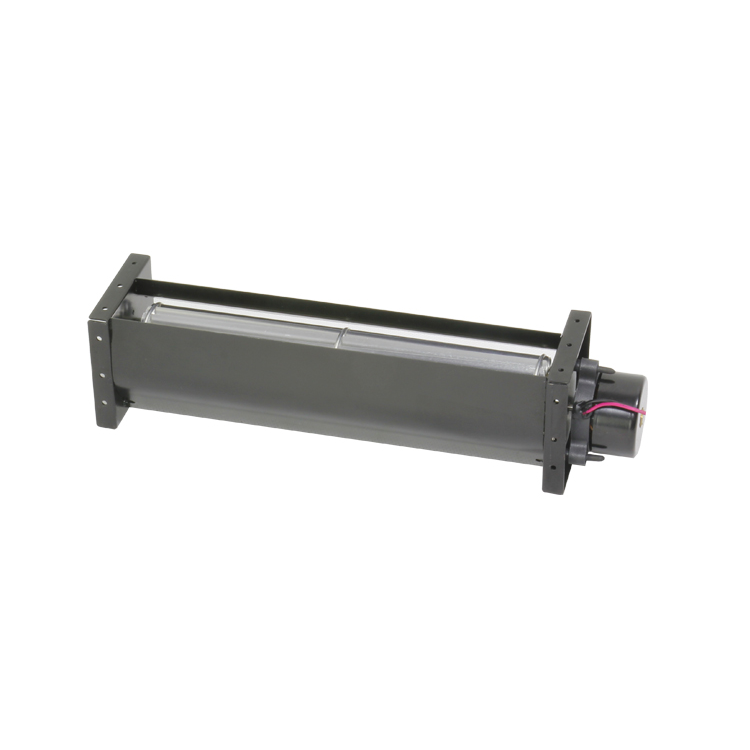

coolcom cross-flow fans with high air flow value and very good noise characteristics . Application areas:building Radator, air purifier, Stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. with long life span more than 60Khours when operated in room temperature,also compatible with a high operating temperature

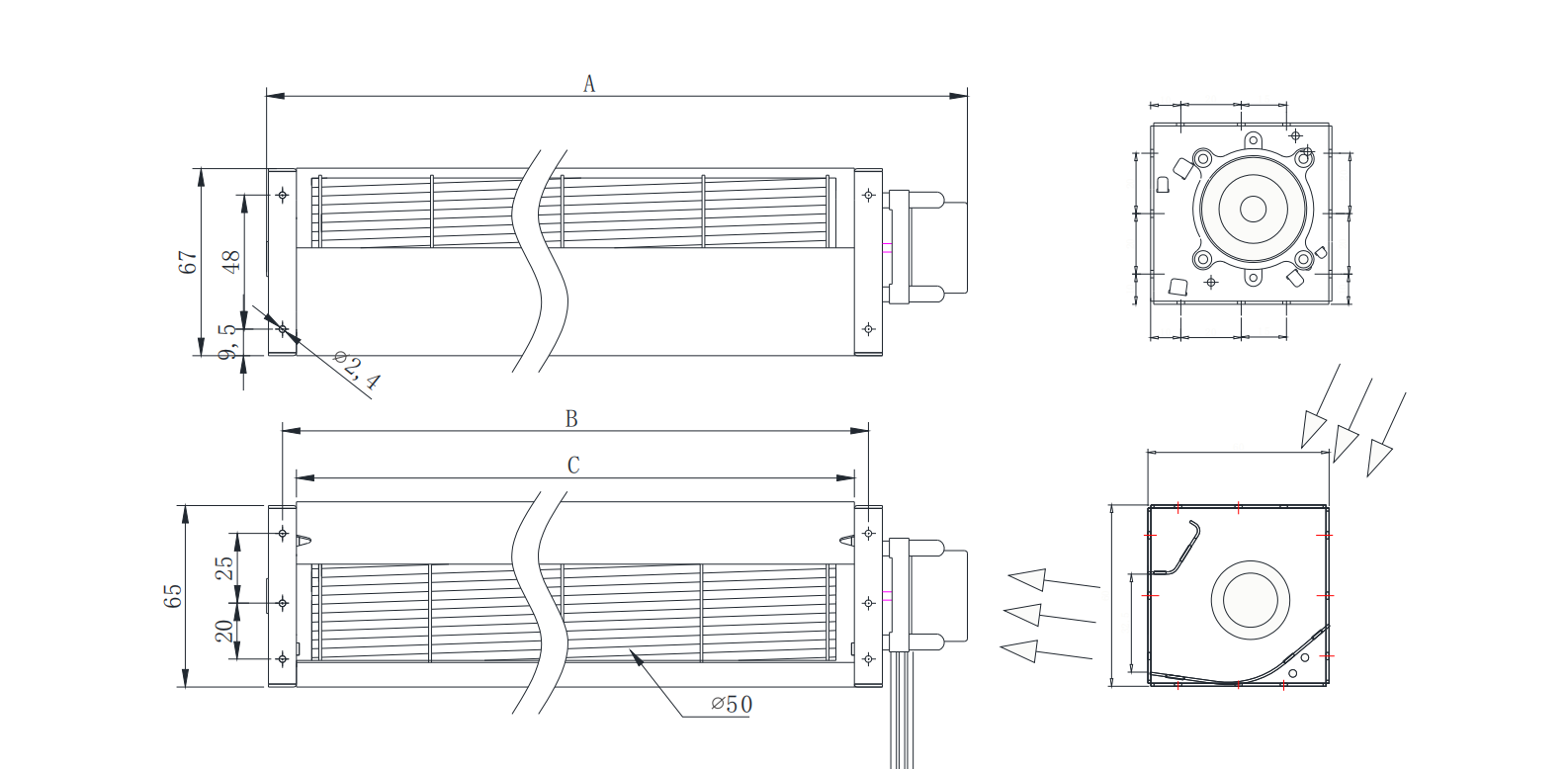

| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM43090HB12-PA | A=150 B=108 C=98 | BALL*3 | 12 | 0.28 | 2600 | 63 | 14 | 36 | 210 | |
| CM43090HB12-PA | A=150 B=108 C=98 | BALL*3 | 24 | 0.12 | 2600 | 63 | 14 | 36 | 210 | |
| CM43150HB12-PA | A=212 B=170 C=160 | BALL*3 | 12 | 0.32 | 2600 | 85 | 15 | 36 | 260 | |
| CM43150HB24-PA | A=212 B=170 C=160 | BALL*3 | 24 | 0.16 | 2600 | 85 | 15 | 36 | 260 | |
| CM43190HB12-PA | A=250 B=208 C=198 | BALL*3 | 12 | 0.36 | 2600 | 105 | 15 | 37 | 300 | |
| CM43190HB24-PA | A=250 B=208 C=198 | BALL*3 | 24 | 0.18 | 2600 | 105 | 15 | 37 | 300 | |
| CM43250HB12-PA | A=302 B=260 C=250 | BALL*3 | 12 | 0.43 | 2600 | 133 | 16 | 37 | 490 | |
| CM43250HB24-PA | A=302 B=260 C=250 | BALL*3 | 24 | 0.24 | 2600 | 133 | 16 | 37 | 490 | |
| CM43290HB12-PA | A=352 B=310 C=300 | BALL*3 | 12 | 0.46 | 2600 | 160 | 17 | 38 | 530 | |
| CM43290HB24-PA | A=352 B=310 C=300 | BALL*3 | 24 | 0.27 | 2600 | 160 | 17 | 38 | 530 | |
| CM43350HB12-PA | A=400 B=358 C=348 | BALL*3 | 12 | 0.50 | 2600 | 185 | 18 | 39 | 570 | |
| CM43350HB24-PA | A=400 B=358 C=348 | BALL*3 | 24 | 0.29 | 2600 | 185 | 18 | 39 | 570 | |
| CM43420HB12-PA | A=472 B=430 C=420 | BALL*3 | 12 | 0.52 | 2600 | 202 | 19 | 40 | - | |
| CM43420HB24-PA | A=472 B=430 C=420 | BALL*3 | 24 | 0.33 | 2600 | 202 | 19 | 40 | - |
