steel,aluminum,Φ40mm impeller diameter
Motor type : Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 40mm
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C
coolcom Tangential fan with high air flow value and very good noise characteristics . Application areas:building Radator, air purifier, Stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. with long life span more than 60Khours when operated in room temperature,also compatible with a high operating temperature

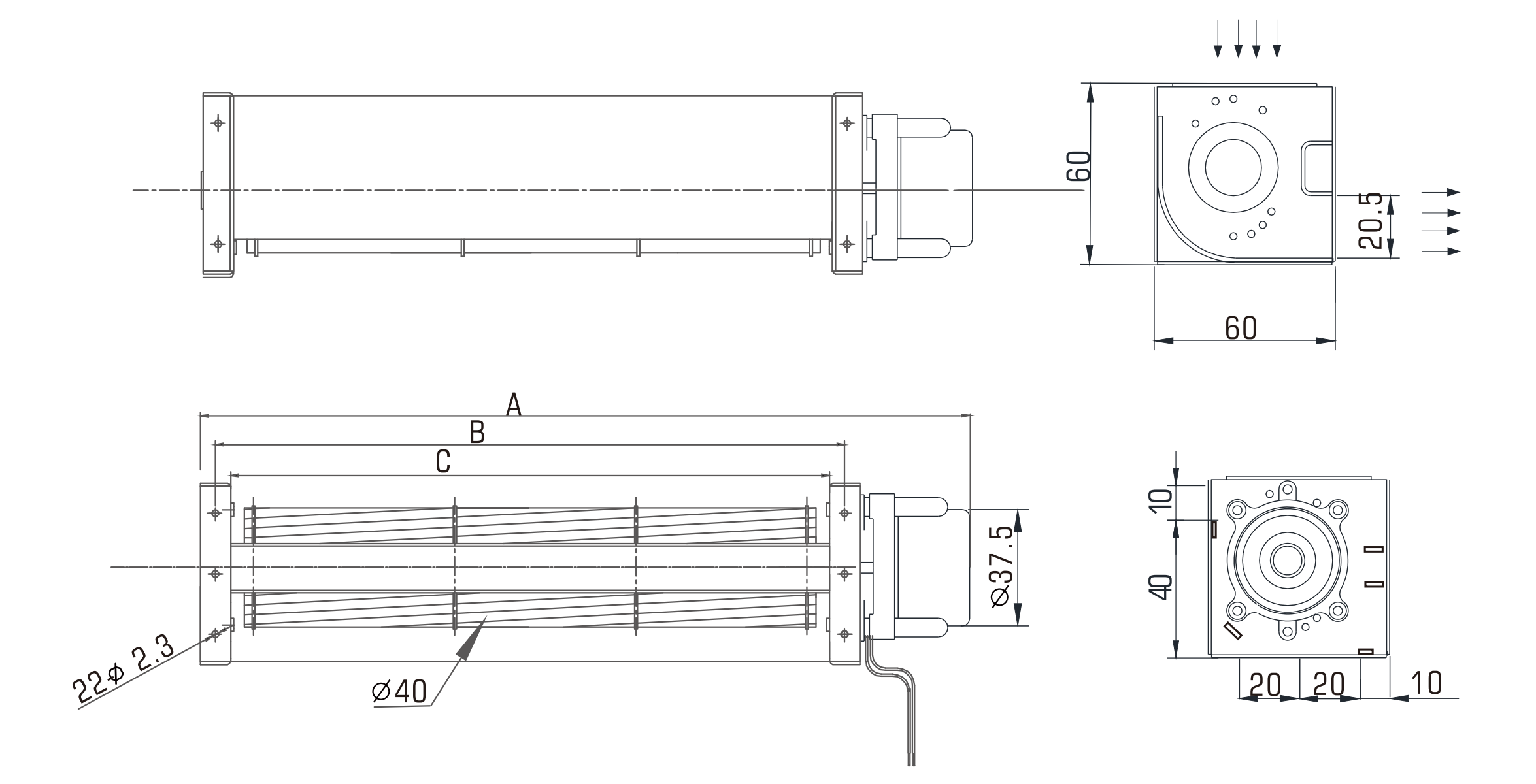

| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(rpm） | Air Flow(m3/h) | Pressure(pa) | Noise(db) | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM40090HB12-PB | A=149 B=108 C=98 | BALL | 12 | 0.12 | 2600 | 30 | 15 | 30 | 210 | |
| CM40090HB24-PB | A=149 B=108 C=98 | BALL | 24 | 0.08 | 2600 | 30 | 15 | 30 | 210 | |
| CM40150HB12-PB | A=210 B=170 C=160 | BALL | 12 | 0.16 | 2600 | 65 | 20 | 33 | 250 | |
| CM40150HB24-PB | A=210 B=170 C=160 | BALL | 24 | 0.11 | 2600 | 65 | 20 | 33 | 250 | |
| CM40190HB12-PB | A=249 B=208 C=198 | BALL | 12 | 0.20 | 2600 | 92 | 25 | 34 | 300 | |
| CM40190HB24-PB | A=249 B=208 C=198 | BALL | 24 | 0.17 | 2600 | 92 | 25 | 34 | 300 | |
| CM40250HB12-PB | A=300 B=260 C=250 | BALL | 12 | 0.25 | 2600 | 116 | 27 | 35 | 400 | |
| CM40250HB24-PB | A=300 B=260 C=250 | BALL | 24 | 0.21 | 2600 | 116 | 27 | 35 | 400 | |
| CM40290HB12-PB | A=352 B=310 C=300 | BALL | 12 | 0.31 | 2600 | 138 | 29 | 36 | 540 | |
| CM40290HB24-PB | A=352 B=310 C=300 | BALL | 24 | 0.25 | 2600 | 138 | 29 | 36 | 540 | |
| CM40350HB12-PB | A=417 B=358 C=348 | BALL | 12 | 0.38 | 2600 | 162 | 32 | 37 | 570 | |
| CM40350HB24-PB | A=417 B=358 C=348 | BALL | 24 | 0.26 | 2600 | 162 | 32 | 37 | 570 | |
| CM40420HB12-PB | A=472 B=430 C=420 | BALL | 12 | 0.46 | 2600 | 195 | 34 | 38 | 600 | |
| CM40420HB24-PB | A=472 B=430 C=420 | BALL | 24 | 0.31 | 2600 | 195 | 34 | 38 | 600 |
