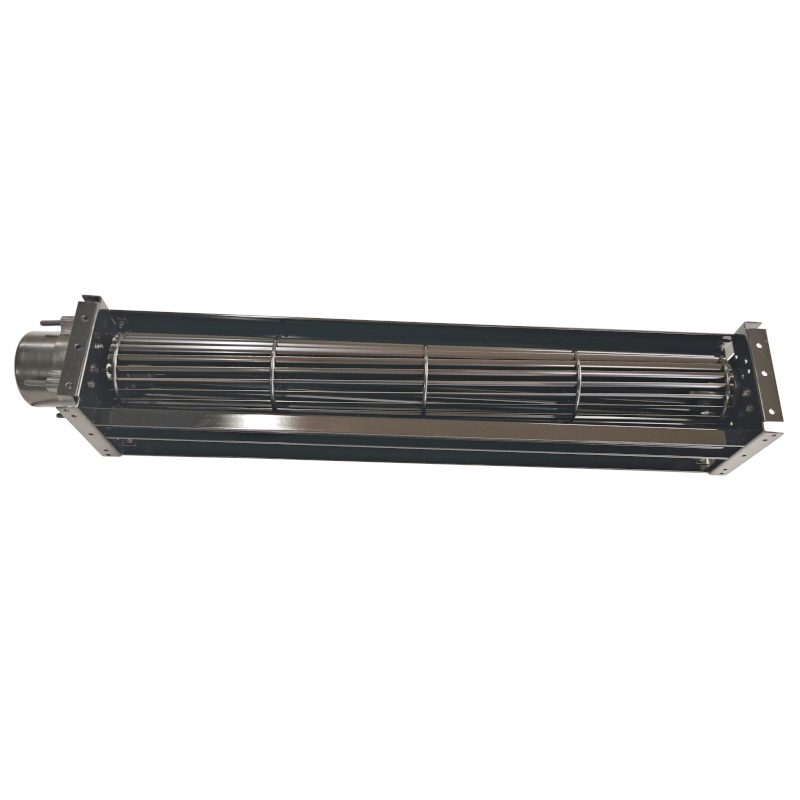

Dc cross flow fan CM30-PB series

video

Material:

steel,aluminum,Φ30mm impeller diameter

Optional functions:

Motor type : Three-phase, Single-phase BLDC
Optional voltage : 12v,24v,48v
Speed Control : 0-10V / PWM control
Speed : 2400rpm,Customizable according to customer requirements
Impeller Diameter: 30mm
Bearing: Precision ball bearings
Certifications: UL, CE, CCC
Lifespan at Normal Temperature: Ball bearings - 30,000 hours
Insulation Class: Class B
Operating Environment: -20°C to +70°C

Features:

coolcom Tangential fans with high air flow value and very good noise characteristics . Application areas:building Radator, air purifier, Stove jacket cooling, thermal storage heaters, overhead projectors, tanning beds, air-conditioning and heating units. with long life span more than 60Khours when operated in room temperature,also compatible with a high operating temperature

Specifications

Model Size(mm) Bearing Type Rated Voltage(V) Current(A) Speed(rpm) Air Flow(pa) Pressure(m3/h) Noise(db) Weight Buy it now
CM30090HB12-PB A=152 B=108 C=98 BALL 12 0.1 3000 17 35 29 180
CM30090HB24-PB A=152 B=108 C=98 BALL 24 0.05 3000 17 35 29 180
CM30150HB12-PB A=214 B=170 C=160 BALL 12 0.12 2800 15 42 30 210
CM30150HB24-PB A=214 B=170 C=160 BALL 24 0.14 2800 15 42 30 210
CM30190HB12-PB A=252 B=208 C=198 BALL 12 0.14 2700 14 52 31 230
CM30190HB24-PB A=252 B=208 C=198 BALL 24 0.08 2700 14 52 31 230
CM30250HB12-PB A=302 B=258 C=248 BALL 12 0.16 2600 14 65 32 260
CM30250HB24-PB A=302 B=258 C=248 BALL 24 0.09 2600 14 65 32 260
CM30290HB12-PB A=354 B=310 C=300 BALL 12 0.18 2500 13 72 33 290
CM30290HB24-PB A=354 B=310 C=300 BALL 24 0.09 2500 13 72 33 290
CM30350HB12-PB A=406 B=362 C=352 BALL 12 0.20 2400 12 84 35 320
CM30350HB24-PB A=406 B=362 C=352 BALL 24 0.10 2400 12 84 35 320

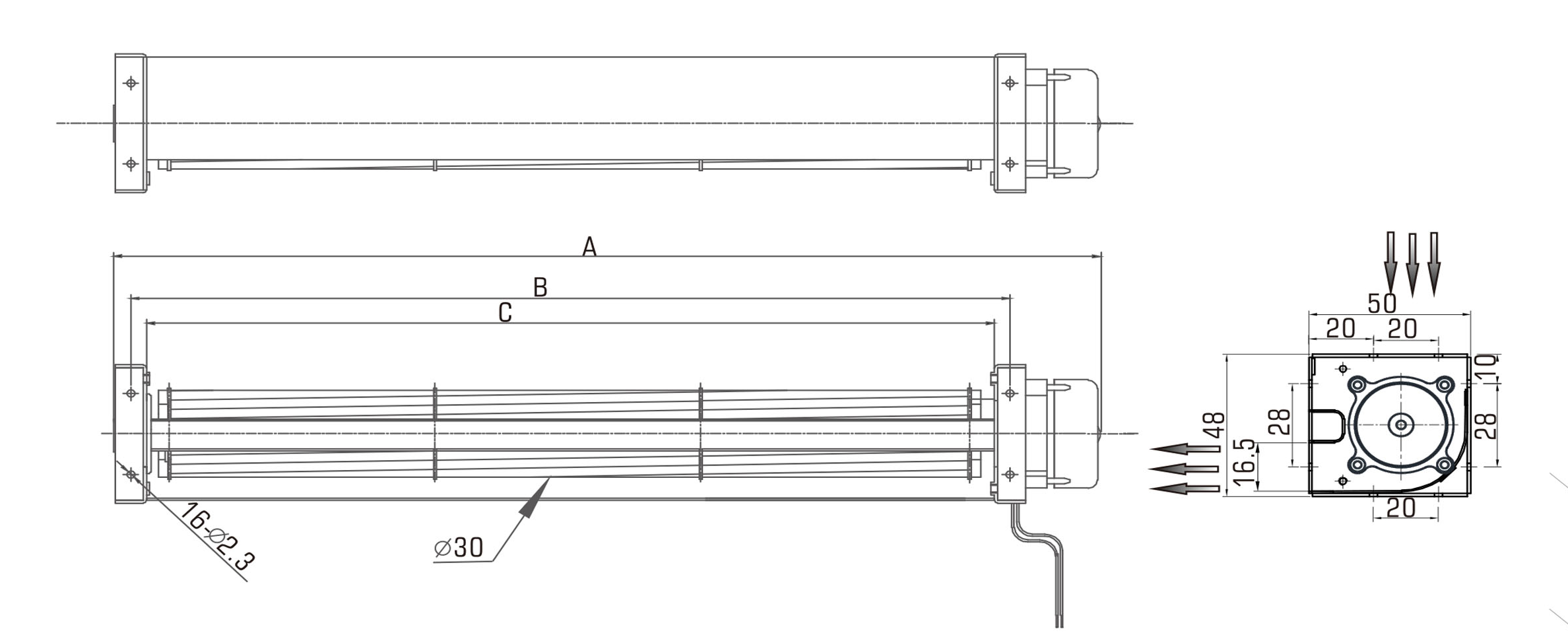

Dimensions

Fan Performance Curve
