sheet steel, galvanised, insulation: Class B
Protection of overload, overvoltage, locked-rotor and polarity, tachoutput, 0-10V pwm speed control, waterproof: IP44

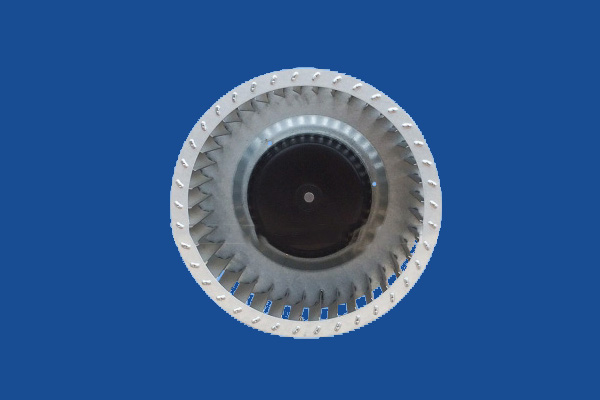

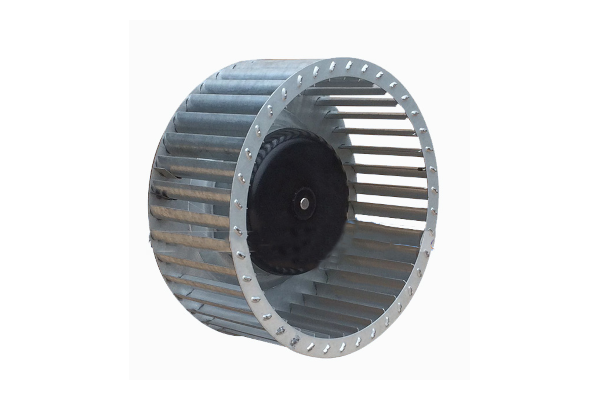

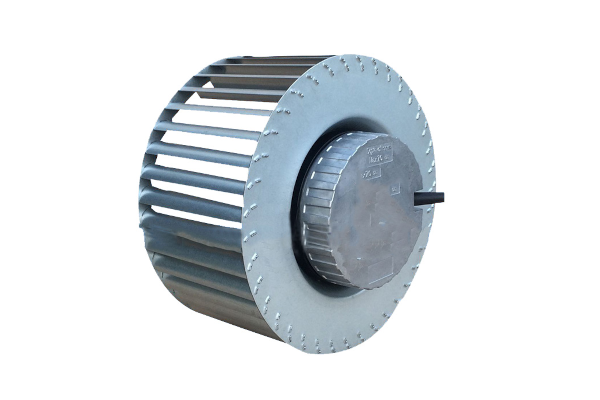

Coolcom Forward Curved DC centrifugal fans offer exceptional airflow and pressure performance with a variety of voltage, speed control, and alarm output options.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM14079CB12HF | 140*79 | 2 ball | 12 | 3.8 | 2000 | 434.5 | 738.8 | 54 | 900 | |
| CM14079CB12MF | 140*79 | 2 balls | 12 | 2.1 | 1600 | 301.5 | 487.6 | 48 | 900 | |
| CM14079CB24UF | 140*79 | 2 balls | 24 | 2.9 | 2400 | 443 | 1040 | 58 | 900 | |
| CM14079CB24HF | 140*79 | 2 balls | 24 | 1.7 | 2000 | 434.5 | 738.8 | 54 | 900 | |
| CM14079CB24MF | 140*79 | 2 balls | 24 | 0.9 | 1600 | 301.5 | 487.6 | 48 | 900 | |
| CM14079CB48UF | 140*79 | 2 balls | 48 | 1.4 | 2400 | 443 | 1040 | 58 | 900 | |
| CM14079CB48HF | 140*79 | 2 balls | 48 | 0.8 | 2000 | 434.5 | 738.8 | 54 | 900 | |
| CM14079CB48MF | 140*79 | 2 balls | 48 | 0.4 | 1600 | 301.5 | 487.6 | 48 | 900 |
