PBT with 30% glass filled UL94-V0
RD,tach output, PWM speed control, temperature control ,locked-rotor,polarity

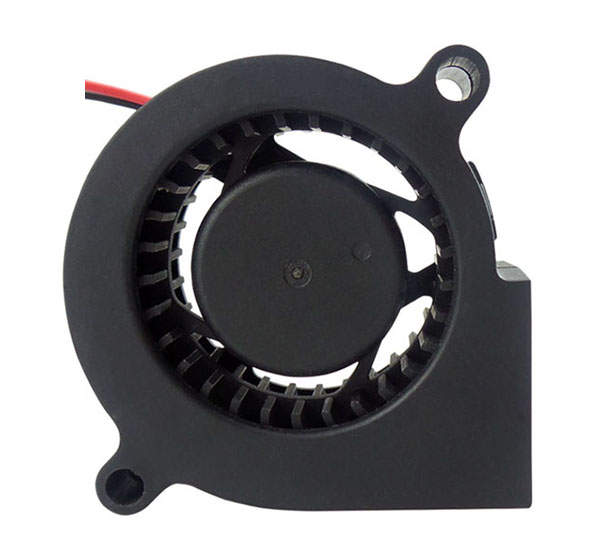

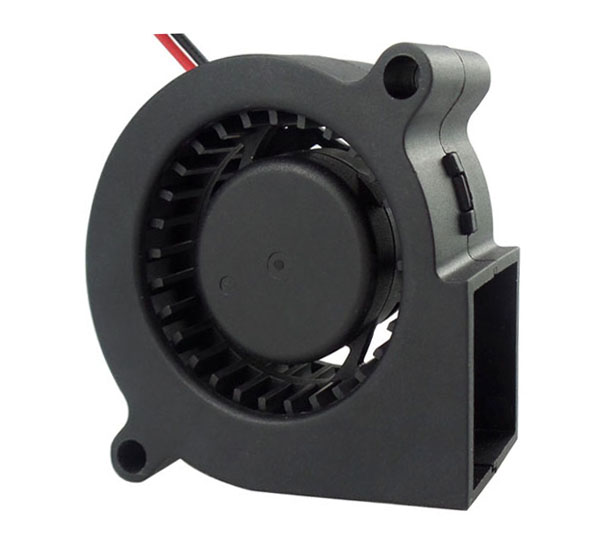

with low noise level and outstanding efficiency. coolcom blower for an extremely wide range of applications,available for voltage range 24V,12V and 05V.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM5020KB24H | 50*50*20 | ball or sleeve | 24 | 0.13 | 6000 | 5.8 | 21.3 | 42.2 | 32g | |
| CM5020KB24M | 50*50*20 | ball or sleeve | 24 | 0.09 | 5000 | 4.5 | 11.7 | 39.1 | 32g | |
| CM5020KB24L | 50*50*20 | ball or sleeve | 24 | 0.05 | 4000 | 3.4 | 6.3 | 31.5 | 32g | |
| CM5020KB12H | 50*50*20 | ball or sleeve | 12 | 0.25 | 6000 | 5.8 | 21.3 | 42.2 | 32 | |
| CM5020KB12M | 50*50*20 | ball or sleeve | 12 | 0.16 | 5000 | 4.5 | 11.7 | 39.1 | 32 | |
| CM5020KB12L | 50*50*20 | ball or sleeve | 12 | 0.09 | 4000 | 3.4 | 6.3 | 31.5 | 32g | |
| CM5020KB05H | 50*50*20 | ball or sleeve | 05 | 0.5 | 6000 | 5.8 | 21.3 | 42.2 | 32g | |
| CM5020KB05M | 50*50*20 | ball or sleeve | 05 | 0.32 | 5000 | 4.5 | 11.7 | 39.1 | 32g | |
| CM5020KB05L | 50*50*20 | ball or sleeve | 05 | 0.18 | 4000 | 3.4 | 6.3 | 31.5 | 32g |
