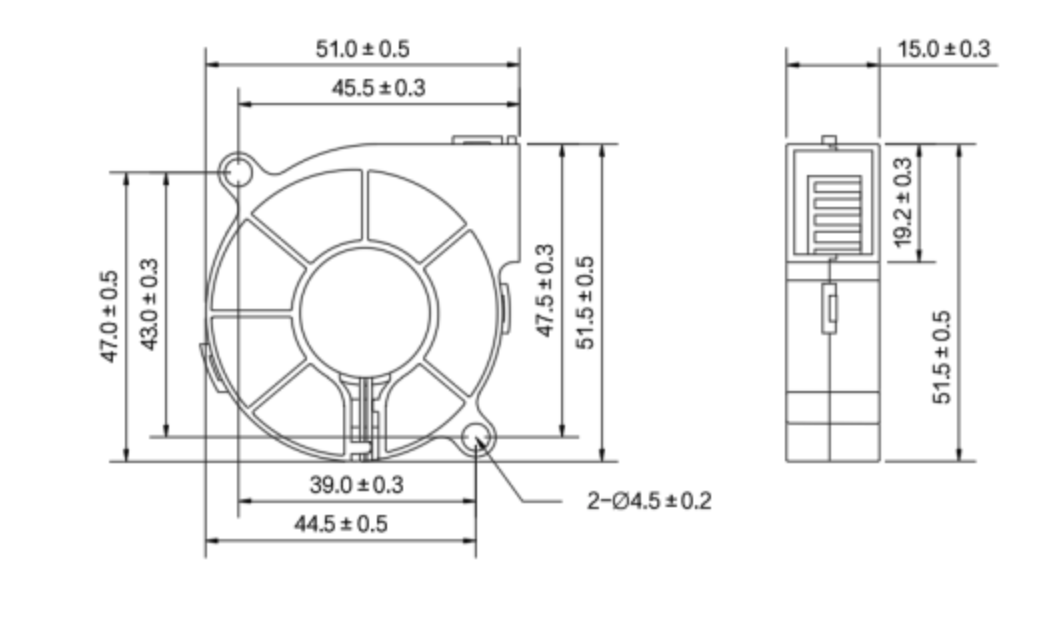

PBT(black) UL94-V0(51*51.5*15.0mm)
Optional voltage : 5v,12v,24v
Optional Bearing : ball bearing, hydraulic bearing
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)

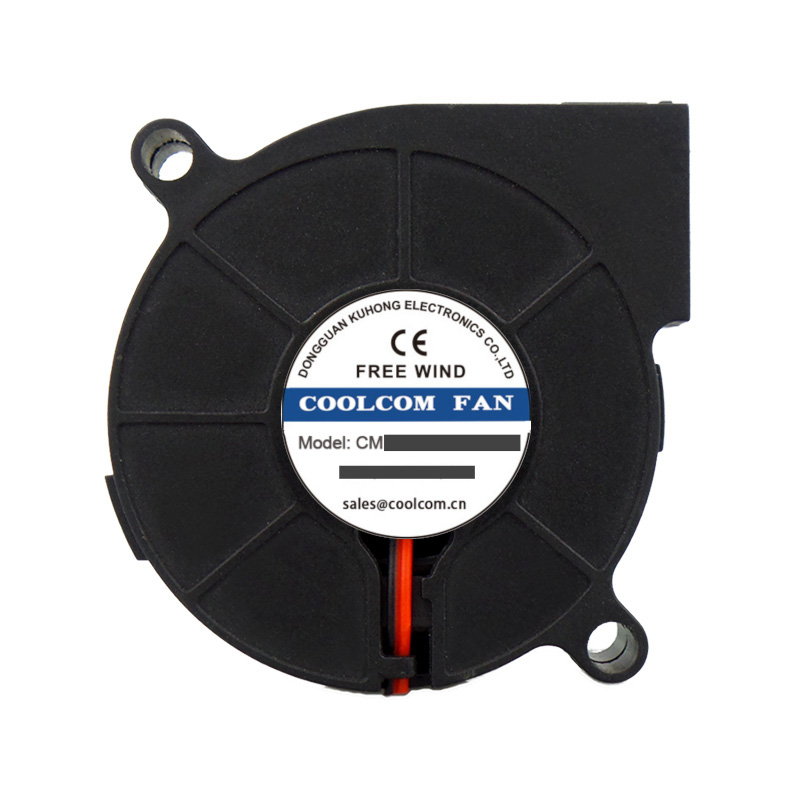

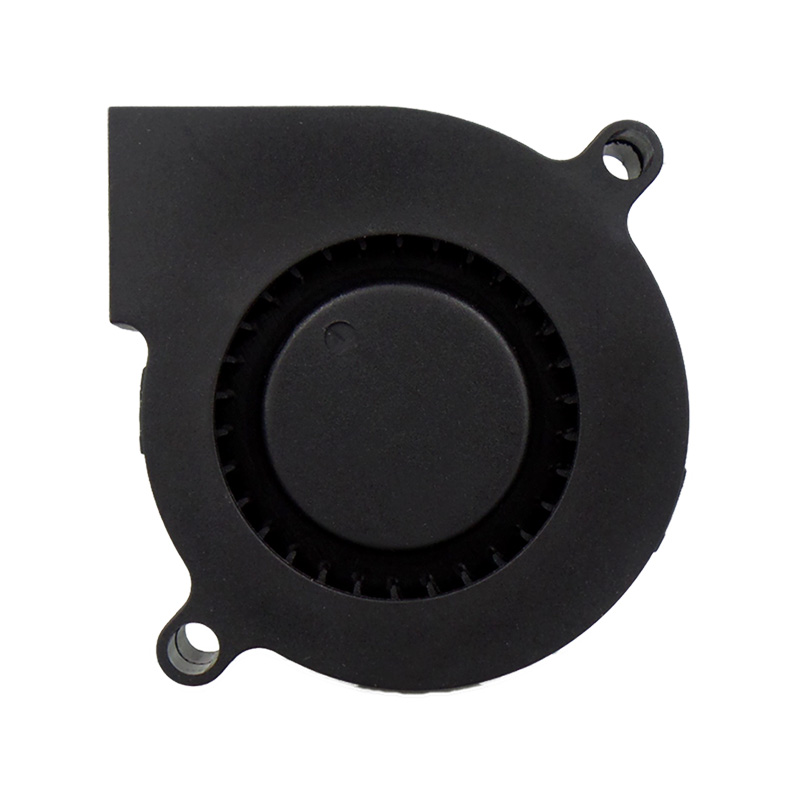

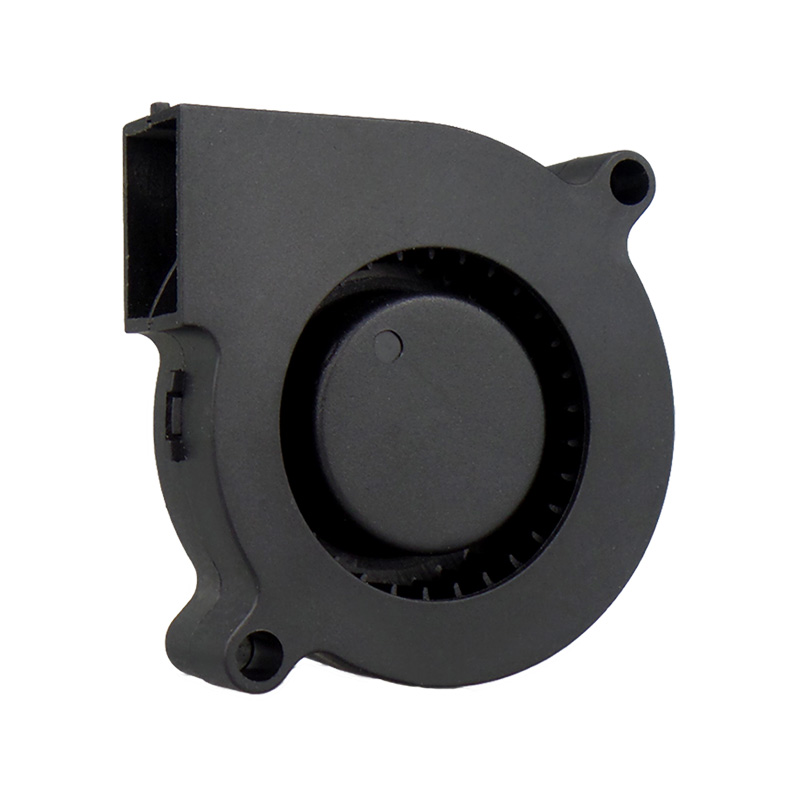

Coolcom burshless DC axial fans offer a wide range of cooling
Suitable for: Mini motherboard, Air purifier, 3D printer, etc.

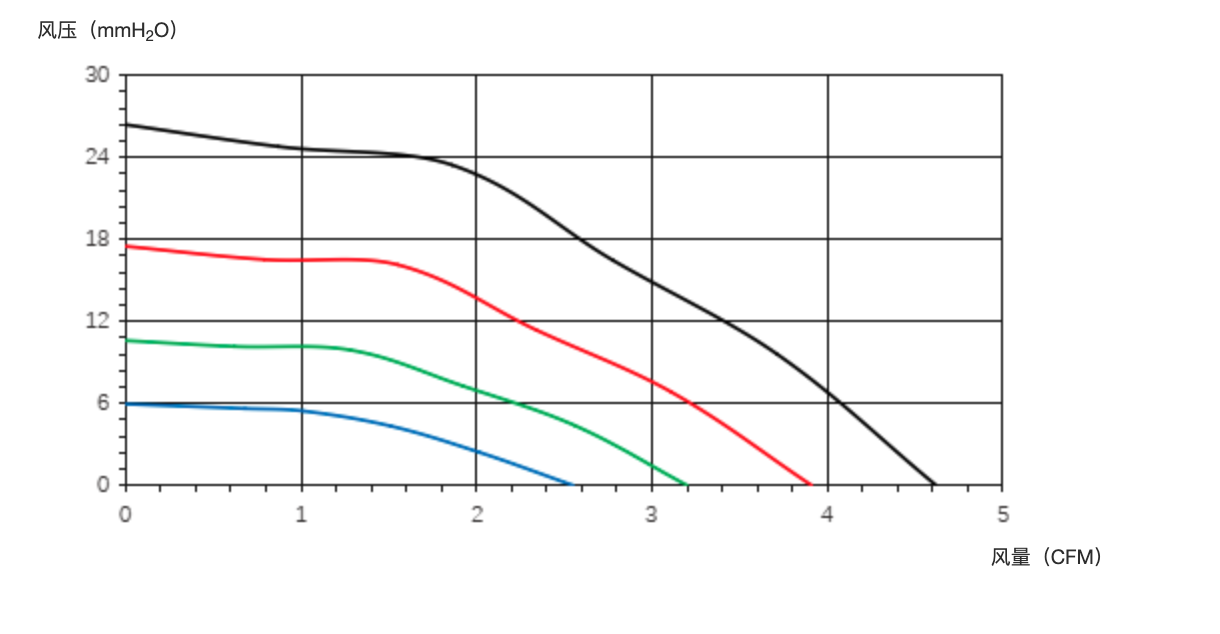

| Model | Size(mm) | Curve Color | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CFM) | Pressure(mmh2o) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM5015NKB24U | 51*51.5*15.0 | black | 24 | 0.15 | 7000 | 4.62 | 26.39 | 50.6 | 26 | |
| CM5015NKB24H | 51*51.5*15.0 | red | 24 | 0.08 | 6000 | 3.91 | 17.49 | 45.7 | 26 | |
| CM5015NKB24M | 51*51.5*15.0 | green | 24 | 0.06 | 5000 | 3.20 | 10.59 | 40.2 | 26 | |
| CM5015NKB24L | 51*51.5*15.0 | blue | 24 | 0.04 | 4000 | 2.55 | 5.95 | 34.3 | 26 | |
| CM5015NKB12U | 51*51.5*15.0 | black | 12 | 0.25 | 7000 | 4.62 | 26.39 | 50.6 | 26 | |
| CM5015NKB12H | 51*51.5*15.0 | red | 12 | 0.14 | 6000 | 3.91 | 17.49 | 45.7 | 26 | |
| CM5015NKB12M | 51*51.5*15.0 | greem | 12 | 0.08 | 5000 | 3.32 | 10.59 | 40.2 | 26 | |
| CM5015NKB12L | 51*51.5*15.0 | blue | 12 | 0.05 | 4000 | 2.55 | 5.95 | 34.3 | 26 | |
| CM5015NKB05U | 51*51.5*15.0 | black | 05 | 0.35 | 7000 | 4.62 | 26.39 | 50.6 | 26 | |
| CM5015NKB05H | 51*51.5*15.0 | red | 05 | 0.25 | 6000 | 3.91 | 17.49 | 45.7 | 26 | |
| CM5015NKB05M | 51*51.5*15.0 | green | 05 | 0.20 | 5000 | 3.32 | 10.59 | 40.2 | 26 | |
| CM5015NKB05L | 51*51.5*15.0 | blue | 05 | 0.10 | 4000 | 2.55 | 5.95 | 34.2 | 26 |
