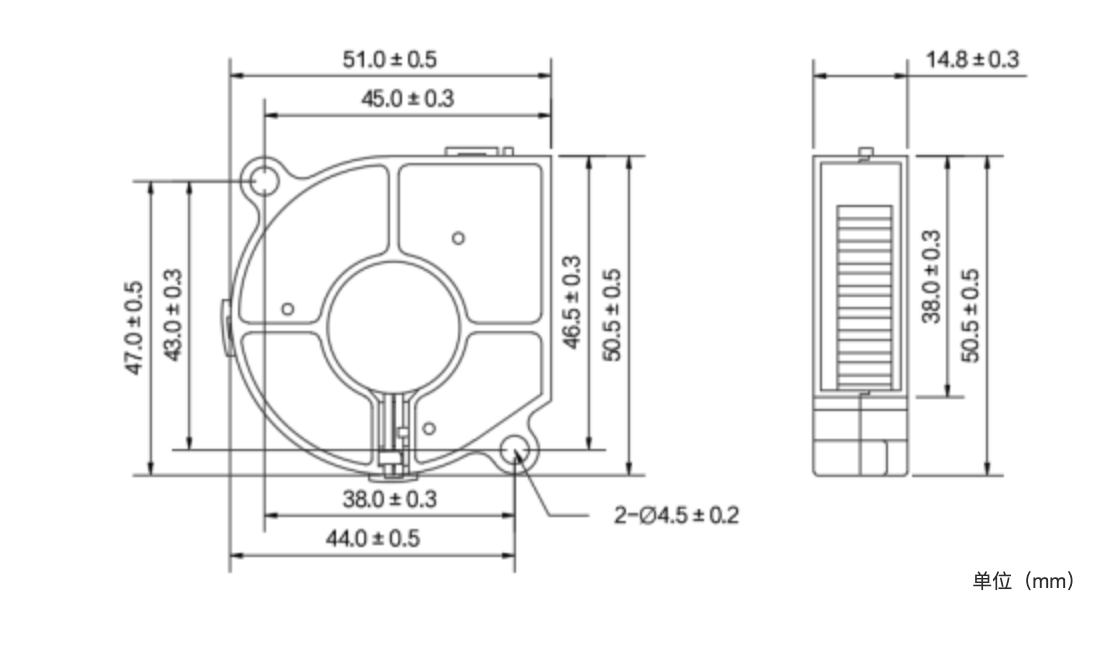

PBT(black) UL94-V0(51*50.5*14.8mm)
Optional voltage : 5v,12v,24v
Optional Bearing : ball bearing, hydraulic bearing
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)

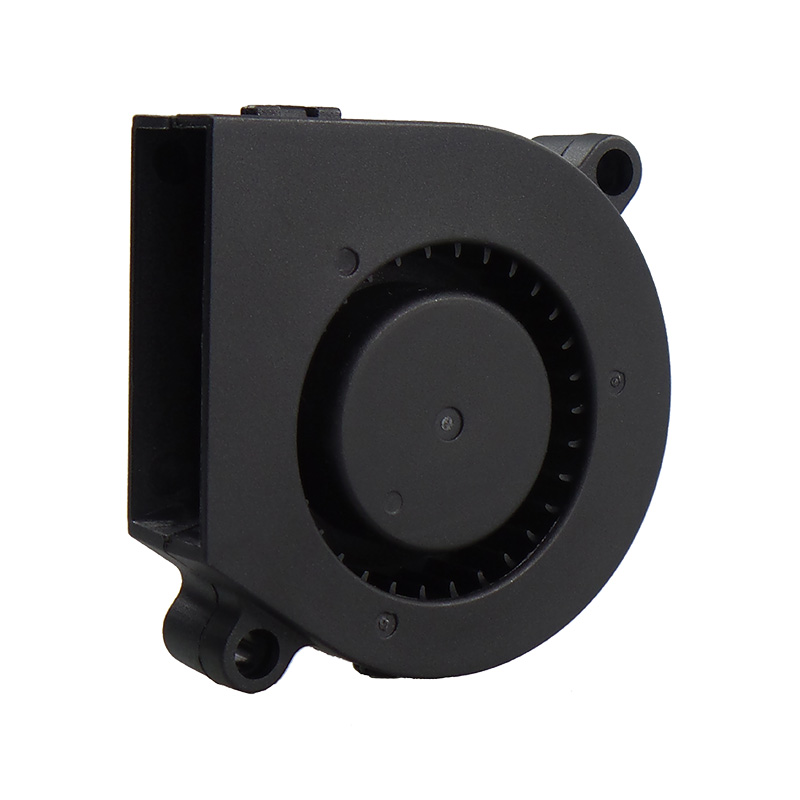

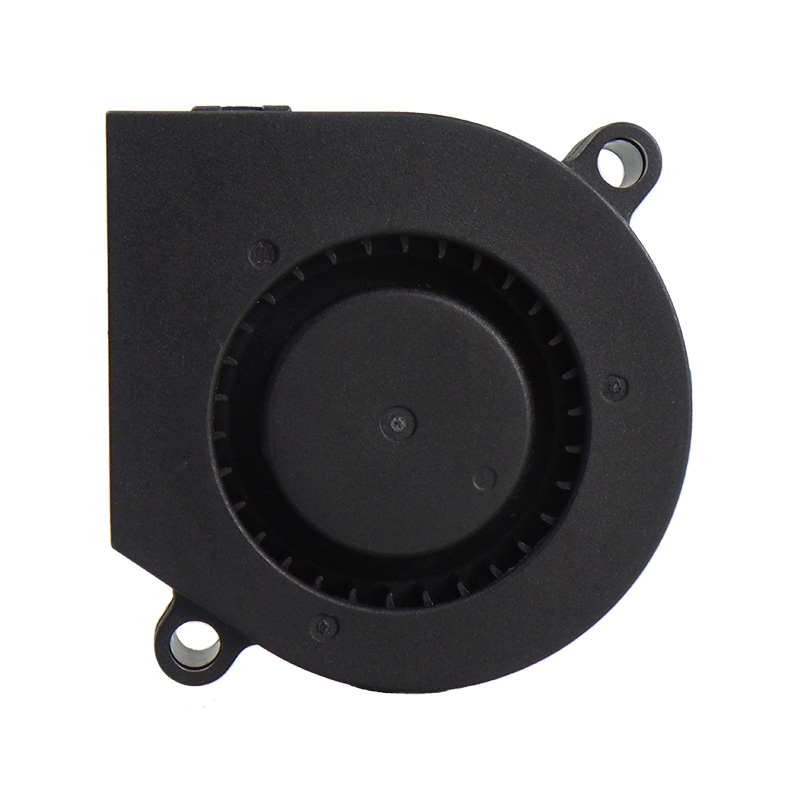

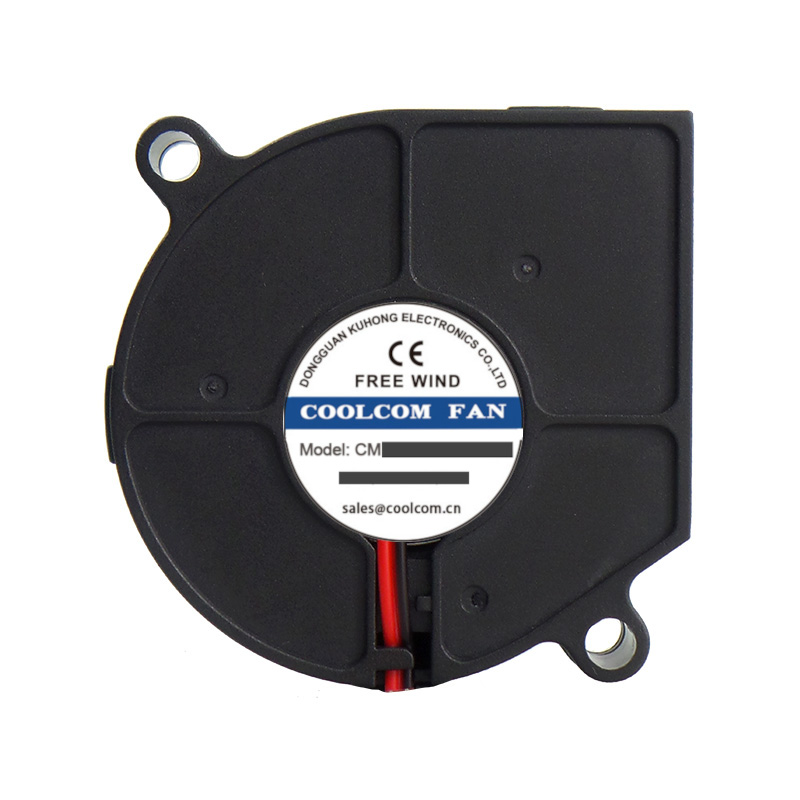

Coolcom burshless DC axial fans offer a wide range of cooling solutions. with large air flow value and low noise level
Suitable for: Mini motherboard, etc.

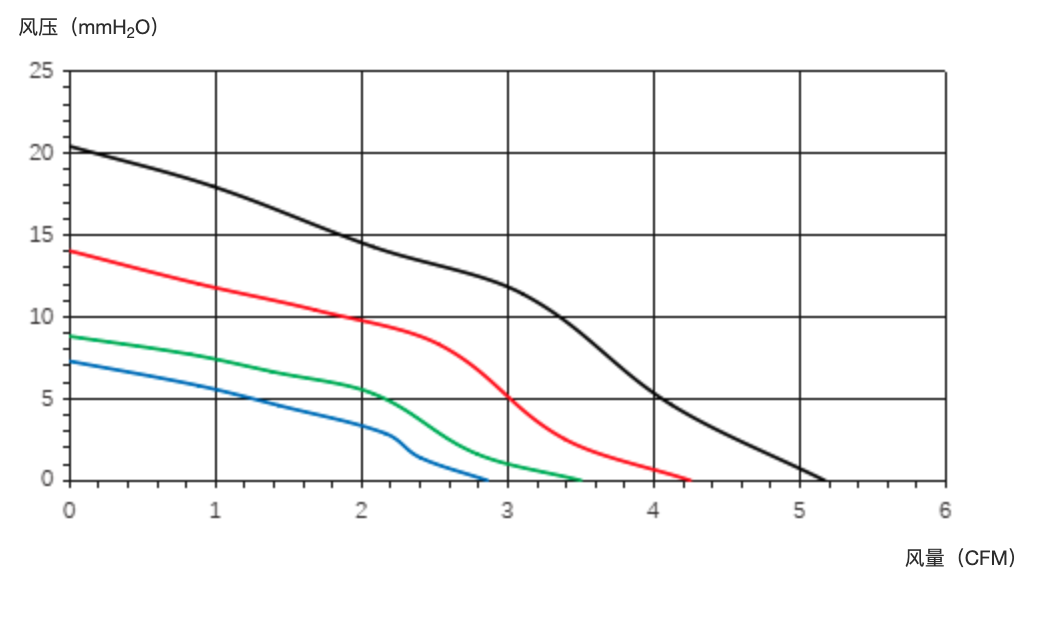

| Model | Size(mm) | Curve Color | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CFM) | Pressure(mmh2o) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM5015LKB24U | 51*50.5*14.8 | black | 24 | 0.10 | 7000 | 5.17 | 20.42 | 48.5 | 23 | |
| CM5015LKB24H | 51*50.5*14.8 | red | 24 | 0.06 | 6000 | 4.25 | 14.03 | 43.7 | 23 | |
| CM5015LKB24M | 51*50.5*14.8 | green | 24 | 0.04 | 5000 | 3.50 | 8.81 | 38.2 | 23 | |
| CM5015LKB24L | 51*50.5*14.8 | blue | 24 | 0.03 | 4000 | 2.86 | 7.29 | 30.4 | 23 | |
| CM5015LKB12U | 51*50.5*14.8 | black | 12 | 0.20 | 7000 | 5.17 | 20.42 | 48.5 | 23 | |
| CM5015LKB12H | 51*50.5*14.8 | red | 12 | 0.13 | 6000 | 4.25 | 14.03 | 43.7 | 23 | |
| CM5015LKB12M | 51*50.5*14.8 | green | 12 | 0.08 | 5000 | 3.50 | 8.81 | 38.2 | 23 | |
| CM5015LKB12L | 51*50.5*14.8 | blue | 12 | 0.06 | 4000 | 2.86 | 7.29 | 30.4 | 23 | |
| CM5015LKB05U | 51*50.5*14.8 | black | 05 | 0.45 | 7000 | 5.17 | 20.42 | 48.5 | 23 | |
| CM5015LKB05H | 51*50.5*14.8 | red | 05 | 0.30 | 6000 | 4.25 | 14.03 | 43.7 | 23 | |
| CM5015LKB05M | 51*50.5*14.8 | green | 05 | 0.20 | 5000 | 3.50 | 8.81 | 38.2 | 23 | |
| CM5015LKB05L | 51*50.5*14.8 | blue | 05 | 0.12 | 4000 | 2.86 | 7.29 | 30.4 | 23 |
