PBT(black) UL94-V0(49.5*49*10.5mm)
Optional voltage : 5v,12v,24v
Optional Bearing : ball bearing, hydraulic bearing
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)

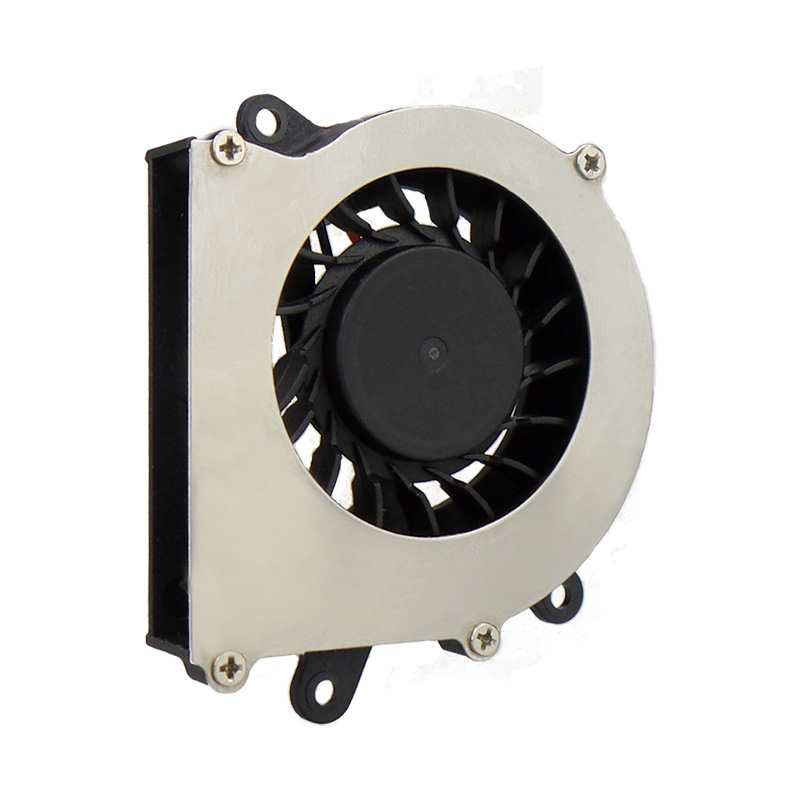

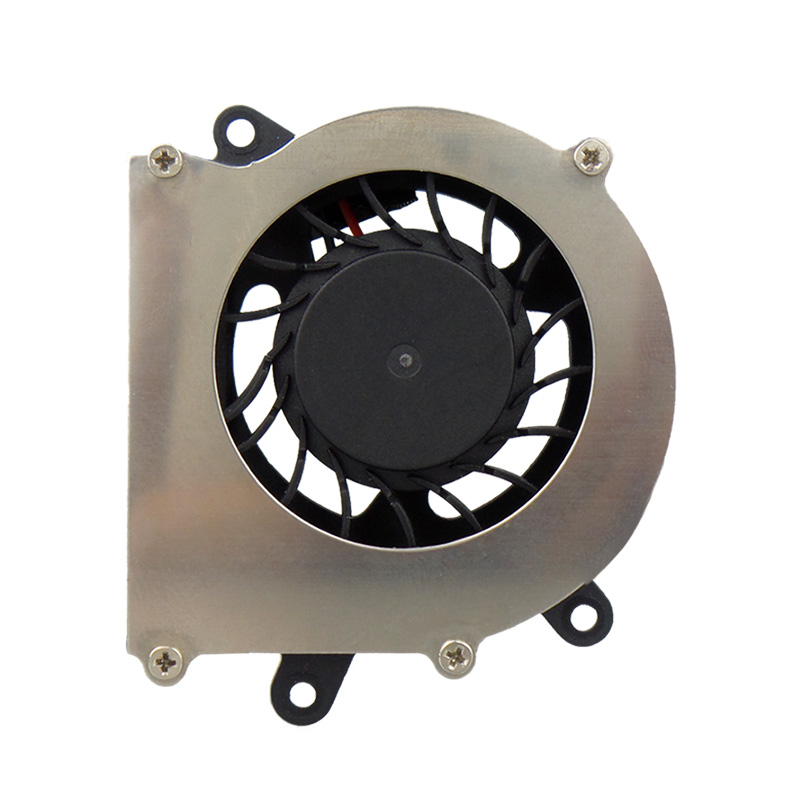

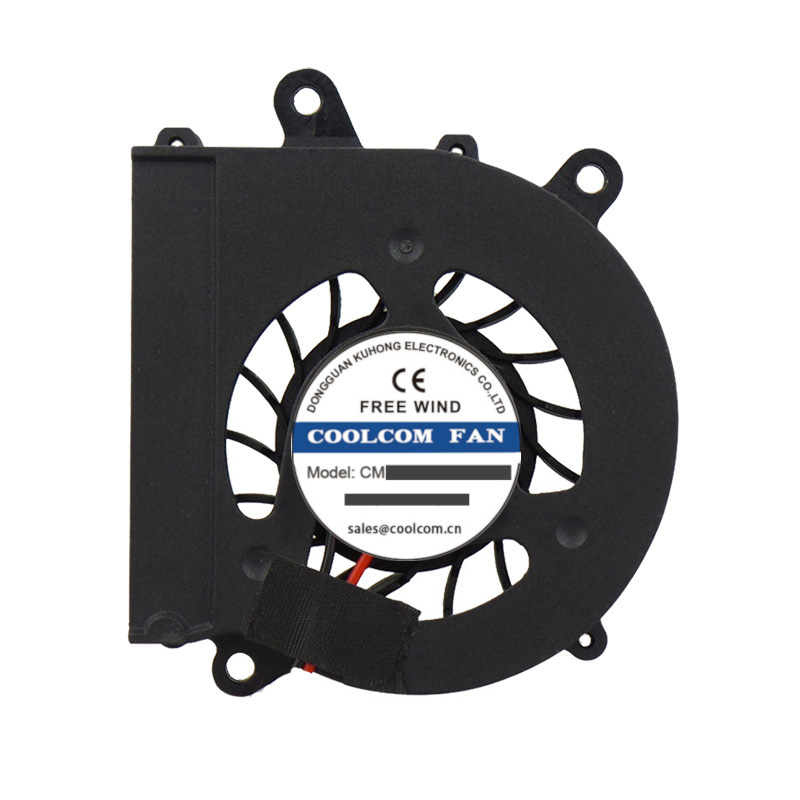

Coolcom burshless DC axial fans offer a wide range of cooling solutions. with large air flow value and low noise level
Suitable for: Projection equipment, projector, etc.
| Model | Size(mm) | Curve Color | Rated Voltage(v) | Current(A) | Speed(RPM) | Air Flow(CFM) | Pressure(mmh2o) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM5010BKB24U | 49.5*49*10.5 | black | 24 | 0.12 | 7000 | 4.53 | 21.06 | 40.3 | 16 | |
| CM5010BKB24H | 49.5*49*10.5 | red | 24 | 0.08 | 6000 | 3.84 | 14.84 | 34.5 | 16 | |
| CM5010BKB24M | 49.5*49*10.5 | green | 24 | 0.05 | 5000 | 3.21 | 9.39 | 29.4 | 16 | |
| CM5010BKB24L | 49.5*49*10.5 | blue | 24 | 0.03 | 4000 | 2.68 | 5.85 | 25.2 | 16 | |
| CM5010BKB12U | 49.5*49*10.5 | black | 12 | 0.25 | 7000 | 4.53 | 21.06 | 40.3 | 16 | |
| CM5010BKB12H | 49.5*49*10.5 | red | 12 | 0.20 | 6000 | 3.84 | 14.84 | 34.5 | 16 | |
| CM5010BKB12M | 49.5*49*10.5 | green | 12 | 0.15 | 5000 | 3.21 | 9.39 | 29.4 | 16 | |
| CM5010BKB12L | 49.5*49*10.5 | blue | 12 | 0.10 | 4000 | 2.68 | 5.85 | 25.2 | 16 | |
| CM5010BKB05U | 49.5*49*10.5 | black | 5 | 0.30 | 7000 | 4.53 | 21.06 | 40.3 | 16 | |
| CM5010BKB05H | 49.5*49*10.5 | red | 5 | 0.24 | 6000 | 3.84 | 14.84 | 34.5 | 16 | |
| CM5010BKB05M | 49.5*49*10.5 | green | 5 | 0.18 | 5000 | 3.21 | 9.39 | 29.4 | 16 | |
| CM5010BKB05L | 49.5*49*10.5 | blue | 5 | 0.12 | 4000 | 2.68 | 5.85 | 25.2 | 16 |
