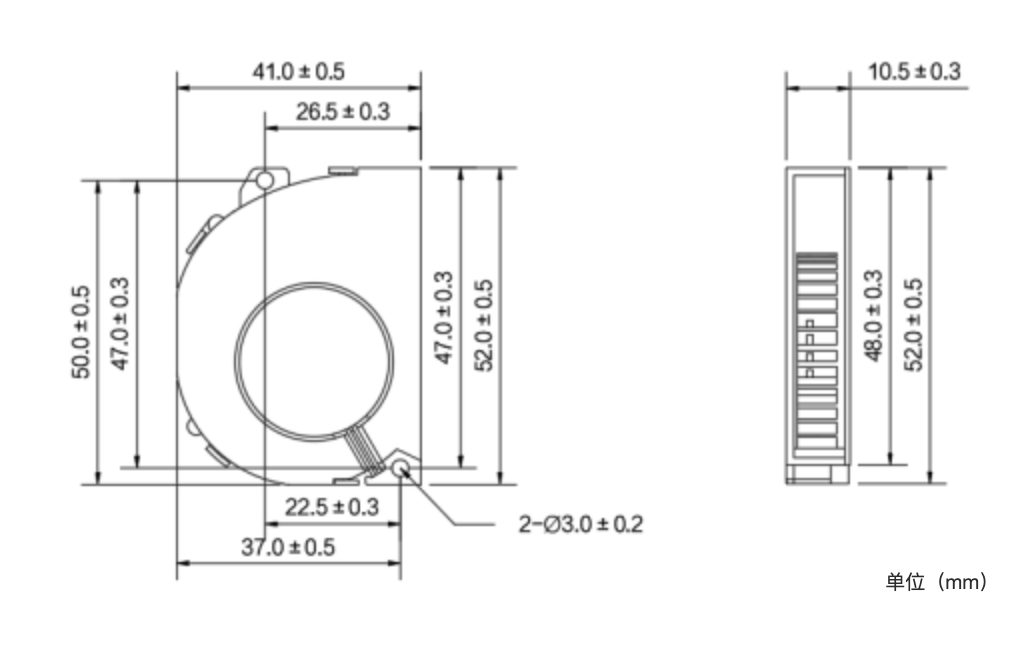

PBT(black) UL94-V0(41*52*10.7mm)
Optional voltage : 5v,12v,24v
Optional Bearing : ball bearing, hydraulic bearing
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)
Coolcom burshless DC axial fans offer a wide range of cooling
Suitable for: Mini motherboard, projector, etc.

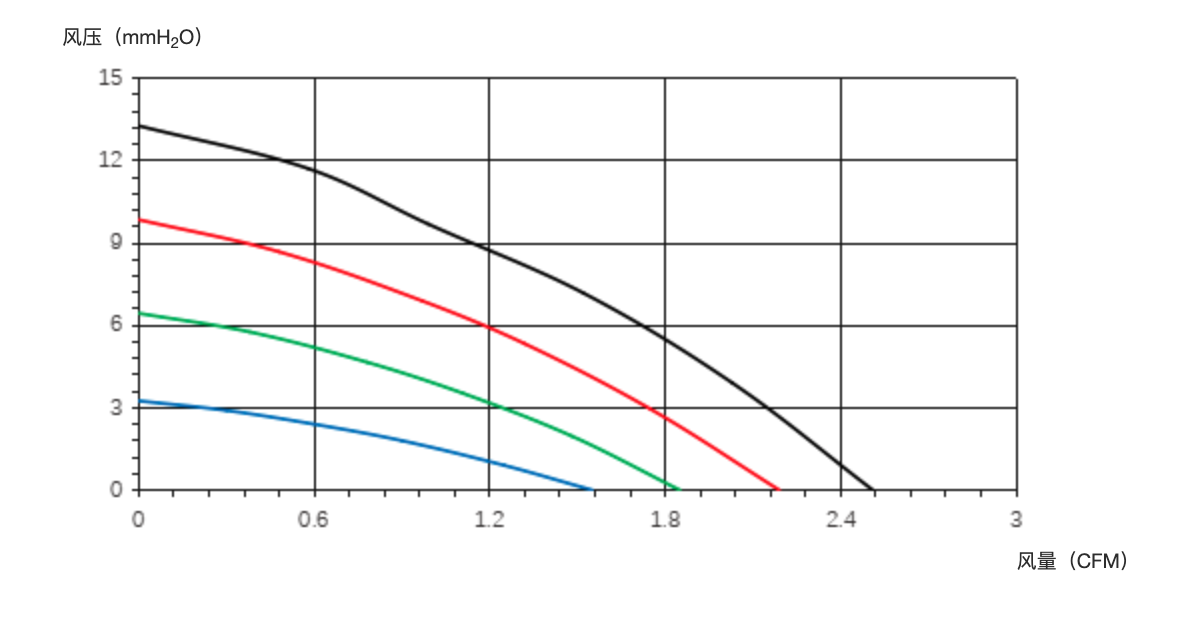

| Model | Size(mm) | Curve Color | Rated Voltage(v) | Current(A) | Speed(rpm) | Air Flow(cfm) | Pressure(mmh2o)) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM5010NKB24U | 41*52*10.7 | black | 24 | 0.15 | 7000 | 5.08 | 21.98 | 42.8 | 15 | |
| CM5010NKB24H | 41*52*10.7 | red | 24 | 0.10 | 6000 | 4.13 | 15.61 | 35.2 | 15 | |
| CM5010NKB24M | 41*52*10.7 | green | 24 | 0.05 | 5000 | 3.29 | 9.24 | 29.7 | 15 | |
| CM5010NKB24L | 41*52*10.7 | blue | 24 | 0.03 | 4000 | 2.75 | 8.92 | 24.4 | 15 | |
| CM5010NKB12U | 41*52*10.7 | black | 12 | 0.25 | 7000 | 5.08 | 21.98 | 42.8 | 15 | |
| CM5010NKB12H | 41*52*10.7 | red | 12 | 0.18 | 6000 | 4.13 | 15.61 | 35.2 | 15 | |
| CM5010NKB12M | 41*52*10.7 | green | 12 | 0.10 | 5000 | 3.29 | 9.24 | 29.7 | 15 | |
| CM5010NKB12L | 41*52*10.7 | blue | 12 | 0.06 | 4000 | 2.75 | 8.92 | 24.4 | 15 | |
| CM5010NKB05U | 41*52*10.7 | black | 5 | 0.350 | 7000 | 5.08 | 21.98 | 42.8 | 15 | |
| CM5010NKB05H | 41*52*10.7 | red | 5 | 0.30 | 6000 | 4.13 | 15.61 | 35.2 | 15 | |
| CM5010NKB05M | 41*52*10.7 | green | 5 | 0.20 | 5000 | 3.29 | 9.24 | 29.7 | 15 | |
| CM5010NKB05L | 41*52*10.7 | blue | 5 | 0.12 | 4000 | 2.75 | 8.92 | 24.4 | 15 |
