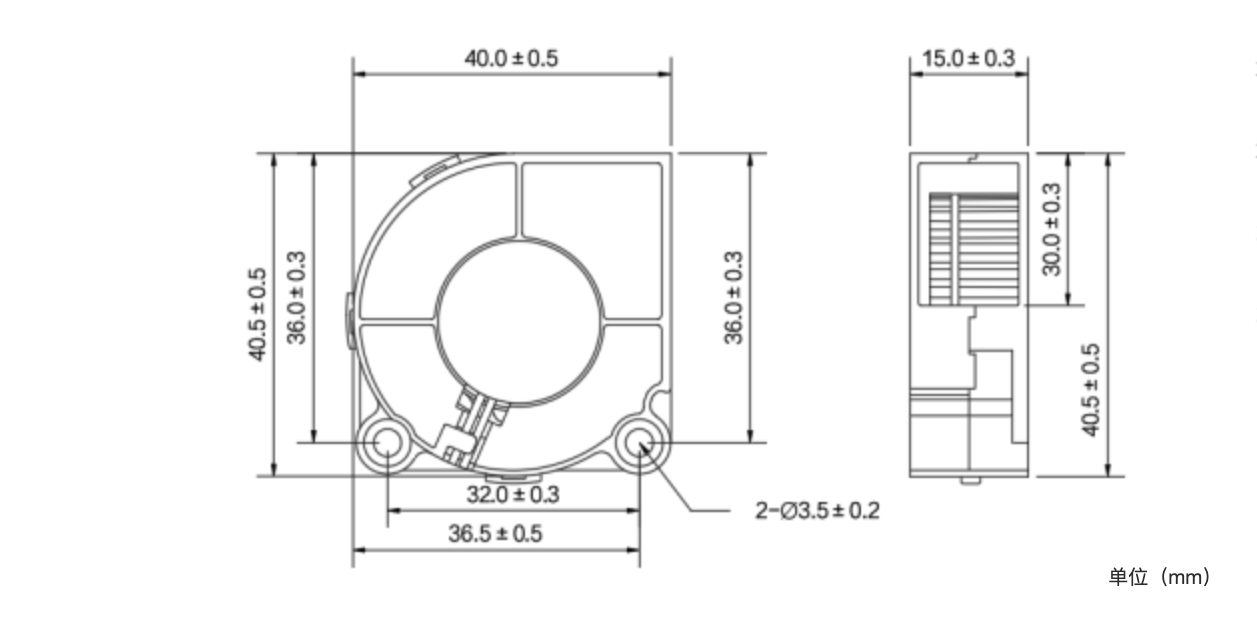

PBT(black) UL94-V0(40*40*15.0mm)
Optional voltage : 5v,12v,24v
Optional Bearing : ball bearing, hydraulic bearing
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)

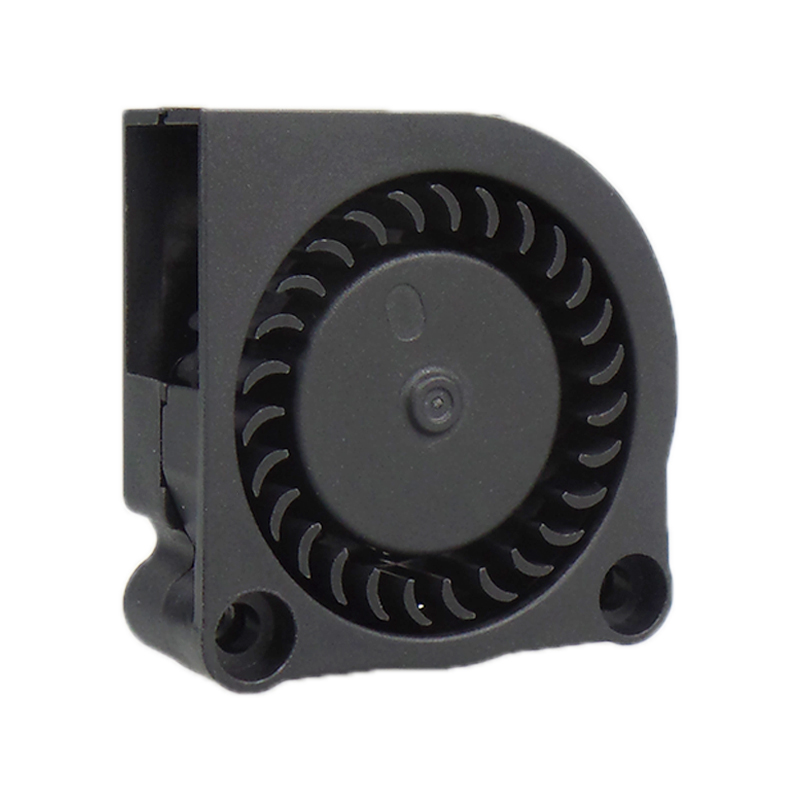

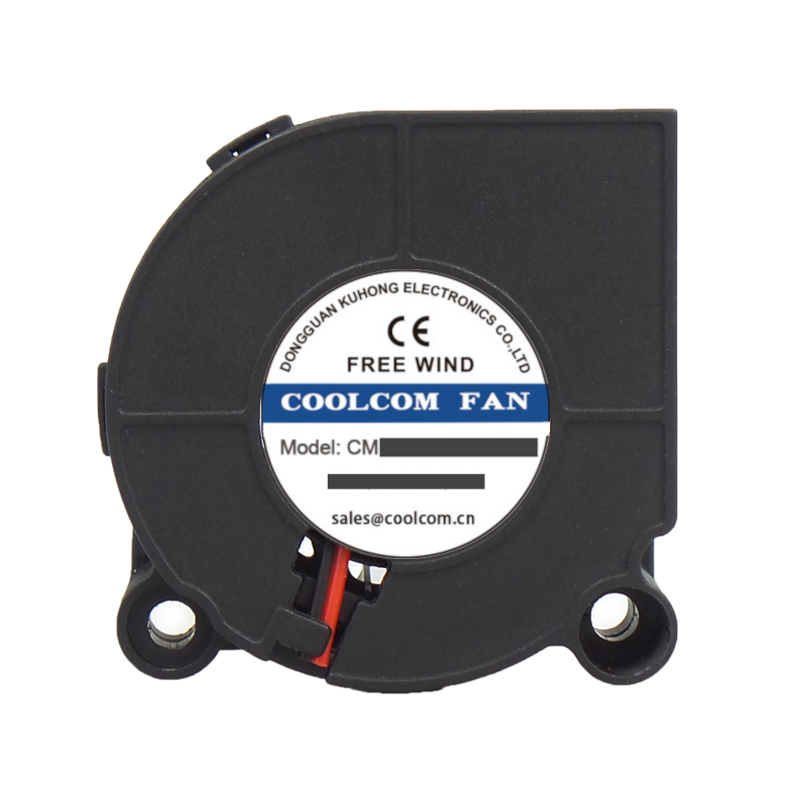

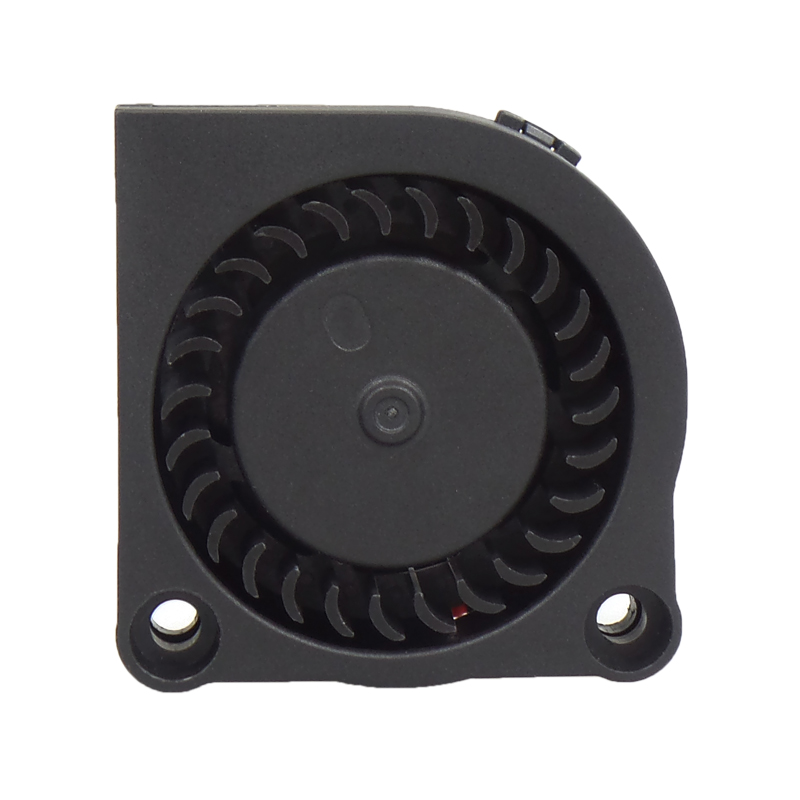

Coolcom burshless DC axial fans offer a wide range of cooling solutions. with large air flow value and low noise level
Suitable for: hair remover,Projector, etc.

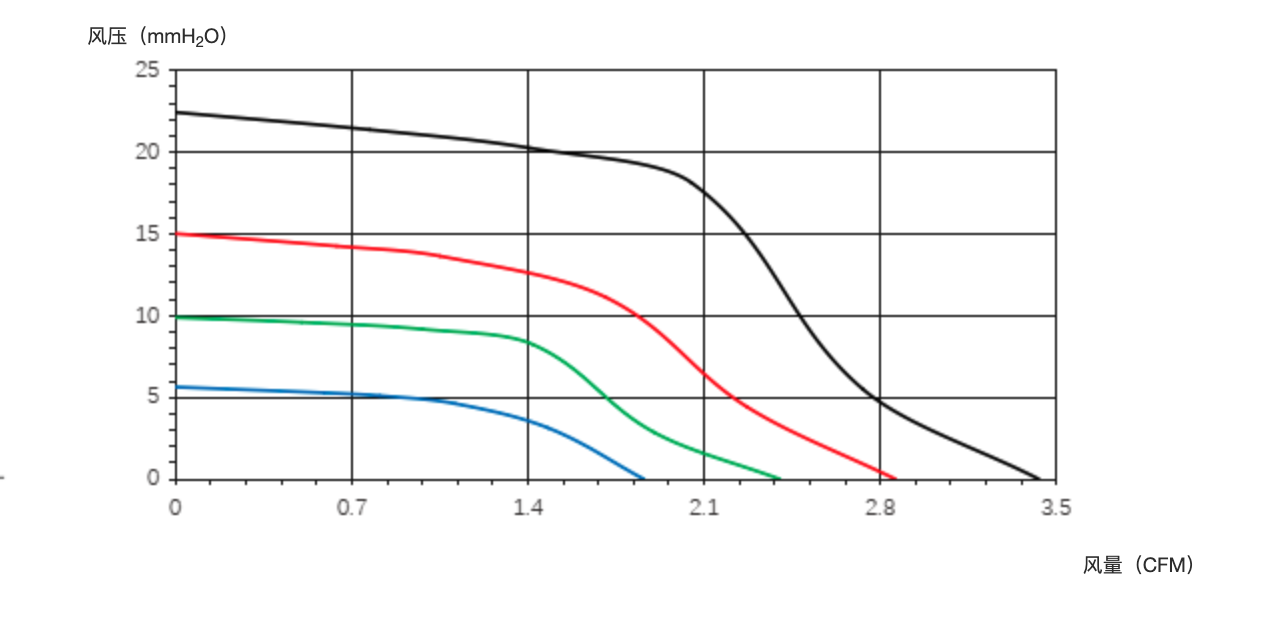

| Model | Size | Curve Color | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CFM) | Pressure(mmho2) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM4015NKB24U | 40*40*15 | black | 24 | 0.18 | 10000 | 3.43 | 22.43 | 48.8 | 20 | |
| CM4015NKB24H | 40*40*15 | red | 24 | 0.10 | 8500 | 2.86 | 15.01 | 42.8 | 20 | |
| CM4015NKB24M | 40*40*15 | green | 24 | 0.05 | 7000 | 2.40 | 9.88 | 37.1 | 20 | |
| CM4015NKB24L | 40*40*15 | blue | 24 | 0.03 | 5500 | 1.86 | 5.63 | 31.7 | 20 | |
| CM4015NKB12U | 40*40*15 | black | 12 | 0.28 | 10000 | 3.43 | 22.43 | 48.8 | 20 | |
| CM4015NKB12H | 40*40*15 | red | 12 | 0.12 | 8500 | 2.86 | 15.01 | 42.8 | 20 | |
| CM4015NKB12M | 40*40*15 | green | 12 | 0.08 | 7000 | 2.40 | 9.88 | 37.1 | 20 | |
| CM4015NKB12L | 40*40*15 | blue | 12 | 0.06 | 5500 | 1.86 | 5.63 | 31.7 | 20 | |
| CM4015NKB05U | 40*40*15 | black | 5 | 0.40 | 10000 | 3.43 | 22.43 | 48.8 | 20 | |
| CM4015NKB05H | 40*40*15 | red | 5 | 0.30 | 8500 | 2.86 | 15.01 | 42.8 | 20 | |
| CM4015NKB05M | 40*40*15 | green | 5 | 0.20 | 7000 | 2.40 | 9.88 | 37.1 | 20 | |
| CM4015NKB05L | 40*40*15 | blue | 5 | 0.10 | 5500 | 1.86 | 5.63 | 31.7 | 20 |
