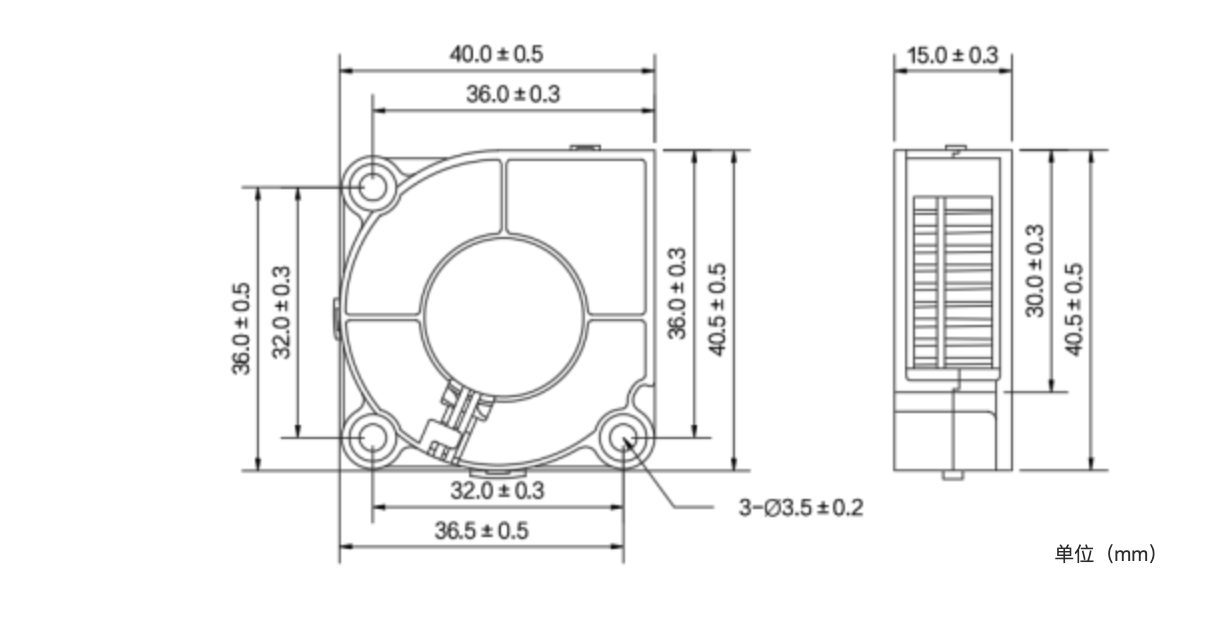

PBT(black) UL94-V0(40*40*15.0mm)
Optional voltage : 5v,12v,24v
Optional Bearing : ball bearing, hydraulic bearing
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)

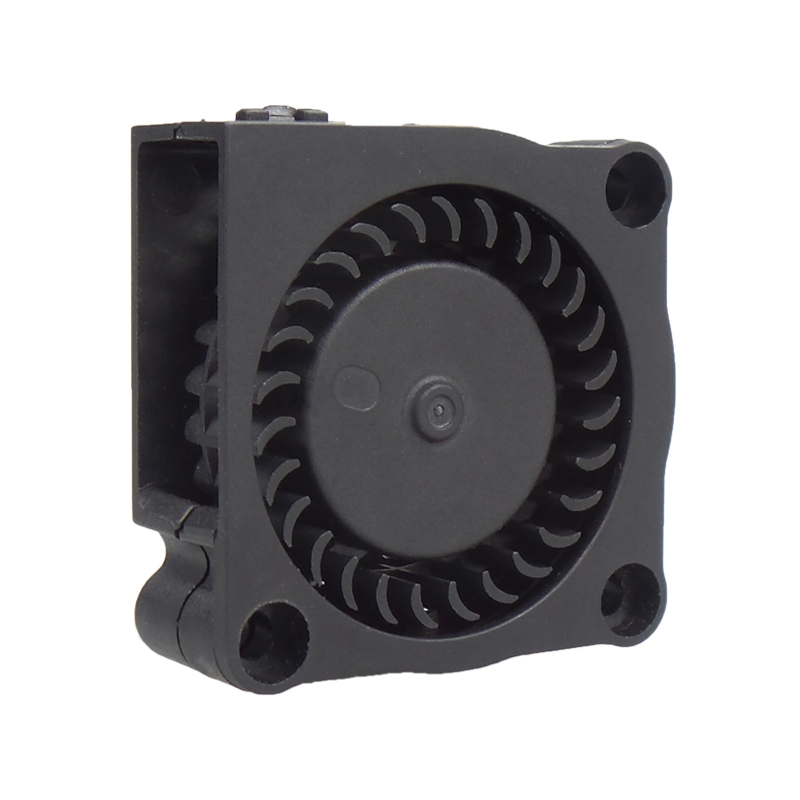

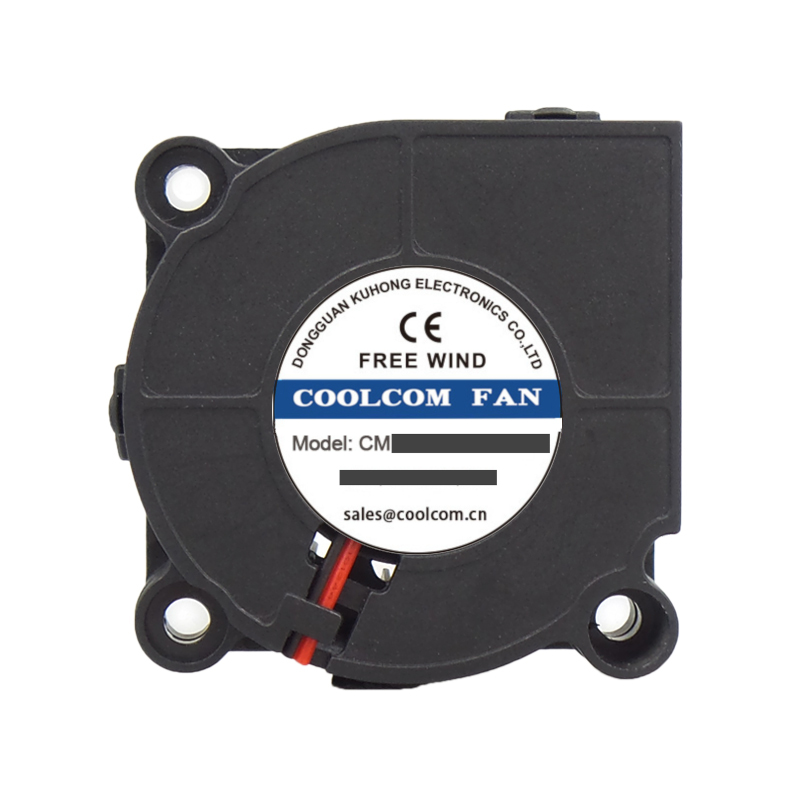

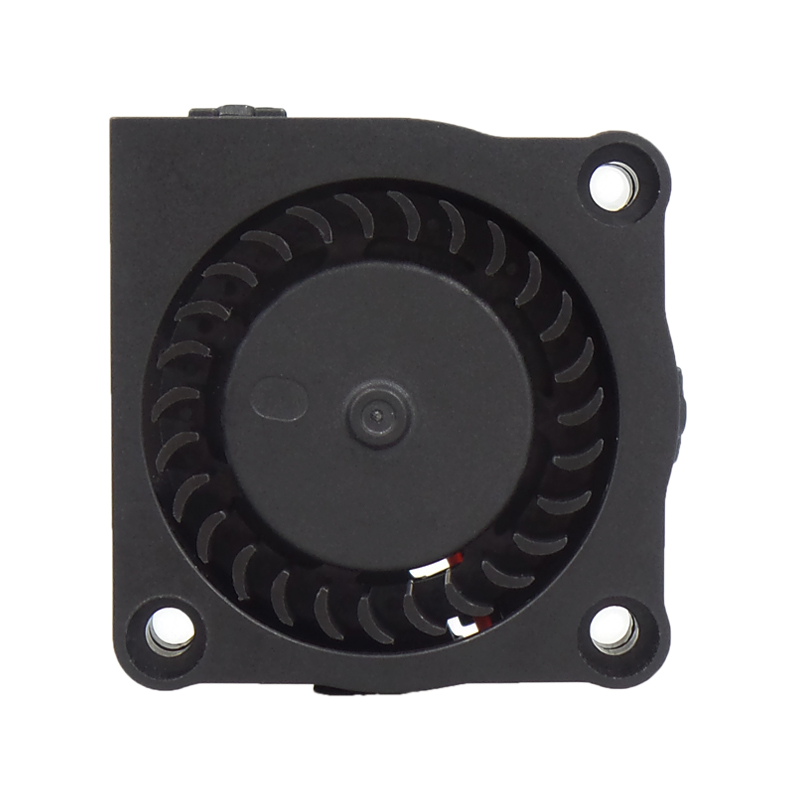

Coolcom burshless DC axial fans offer a wide range of cooling solutions. with large air flow value and low noise level
Suitable for: hair remover,Projector, etc.

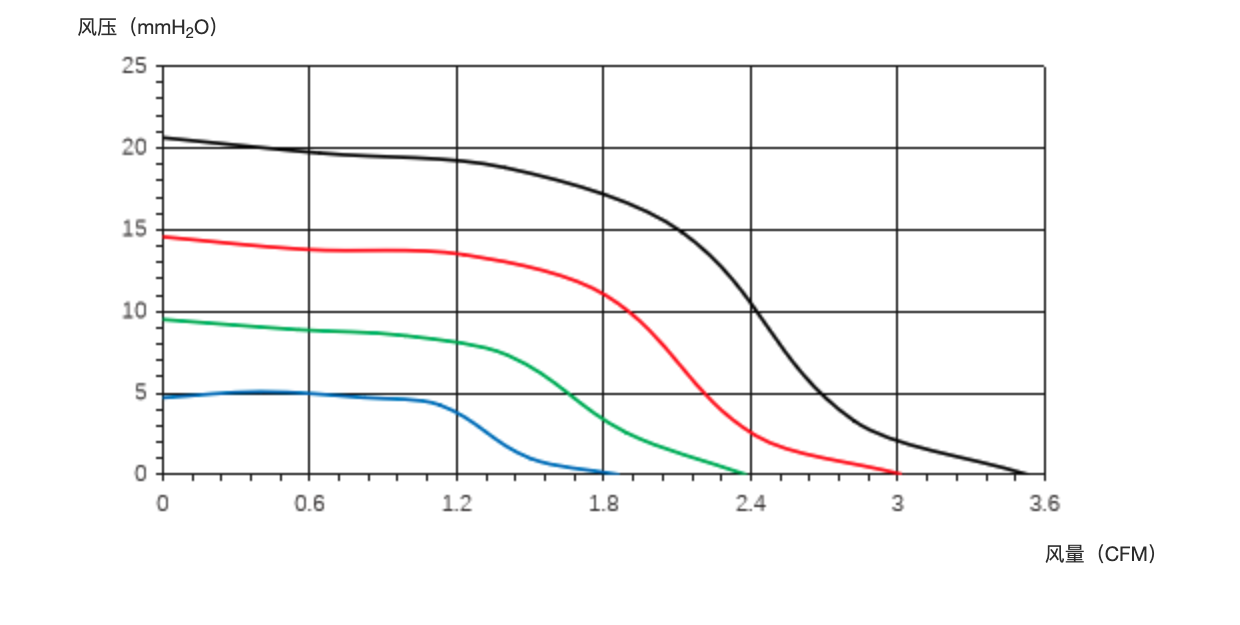

| Model | Size(mm) | Curve Color | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(cfm) | Pressure(mmh2o) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM4015LKB24U | 40*40*15 | black | 24 | 0.18 | 10000 | 3.53 | 20.63 | 47.3 | 21 | |
| CM4015LKB24H | 40*40*15 | red | 24 | 0.10 | 8500 | 3.02 | 14.56 | 41.2 | 21 | |
| CM4015LKB24M | 40*40*15 | green | 24 | 0.05 | 7000 | 2.38 | 7.92 | 35.6 | 21 | |
| CM4015LKB24L | 40*40*15 | blue | 24 | 0.03 | 5500 | 1.86 | 4.71 | 30.2 | 21 | |
| CM4015LKB12U | 40*40*15 | black | 12 | 0.25 | 10000 | 3.53 | 20.63 | 47.3 | 21 | |
| CM4015LKB12H | 40*40*15 | red | 12 | 0.12 | 8500 | 3.02 | 14.56 | 41.2 | 21 | |
| CM4015LKB12M | 40*40*15 | green | 12 | 0.08 | 7000 | 2.38 | 7.92 | 35.6 | 21 | |
| CM4015LKB12L | 40*40*15 | blue | 12 | 0.06 | 5500 | 1.86 | 4.71 | 30.2 | 21 | |
| CM4015LKB05U | 40*40*15 | black | 5 | 0.4 | 10000 | 3.53 | 20.63 | 47.3 | 21 | |
| CM4015LKB05H | 40*40*15 | red | 5 | 0.3 | 8500 | 3.02 | 14.56 | 41.2 | 21 | |
| CM4015LKB05M | 40*40*15 | green | 5 | 0.2 | 7000 | 2.38 | 7.92 | 35.6 | 21 | |
| CM4015LKB05L | 40*40*15 | blue | 5 | 0.1 | 5500 | 1.86 | 4.71 | 30.2 | 21 |
