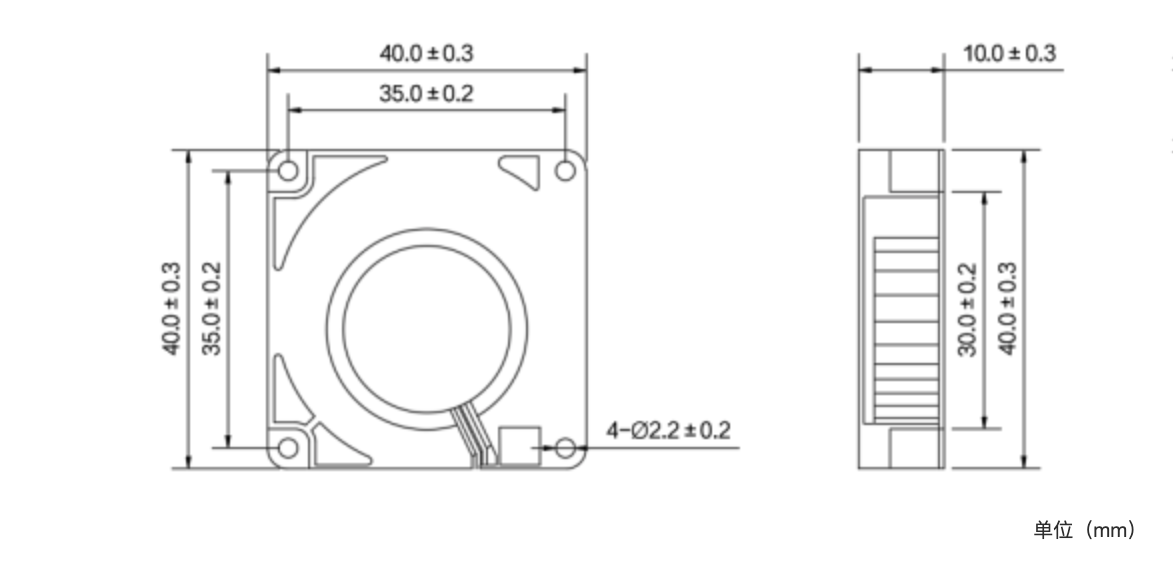

PBT(black) UL94-V0(40*40*10.0mm)
Optional voltage : 5v,12v,24v
Optional Bearing : ball bearing, hydraulic bearing
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)

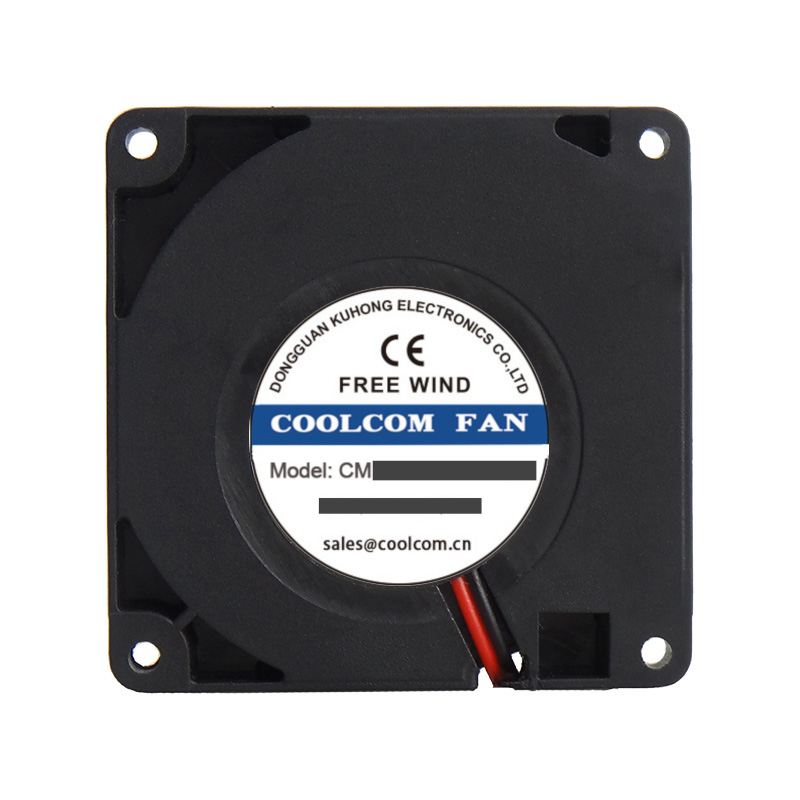

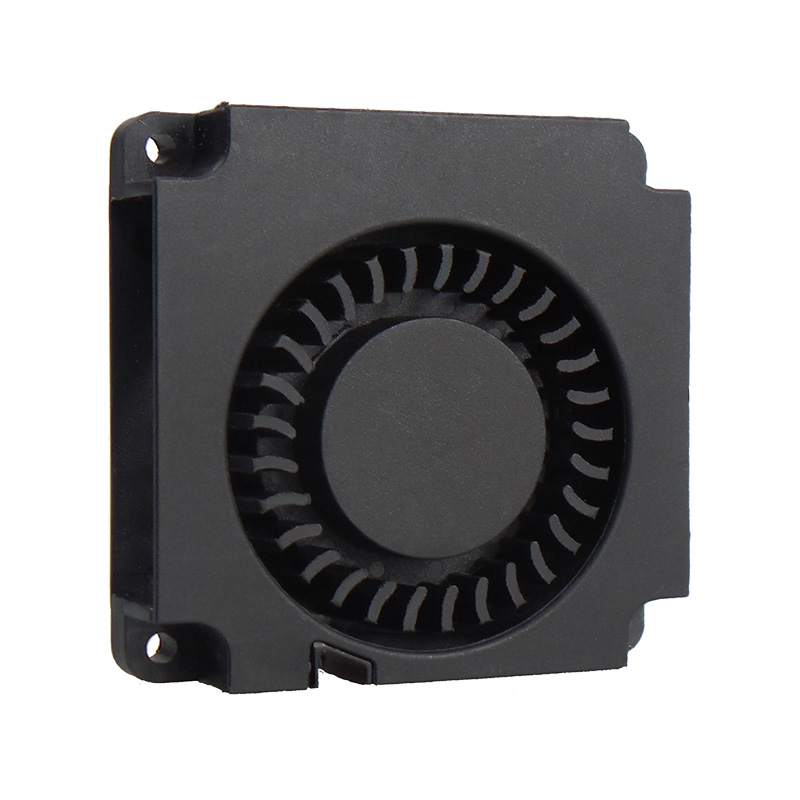

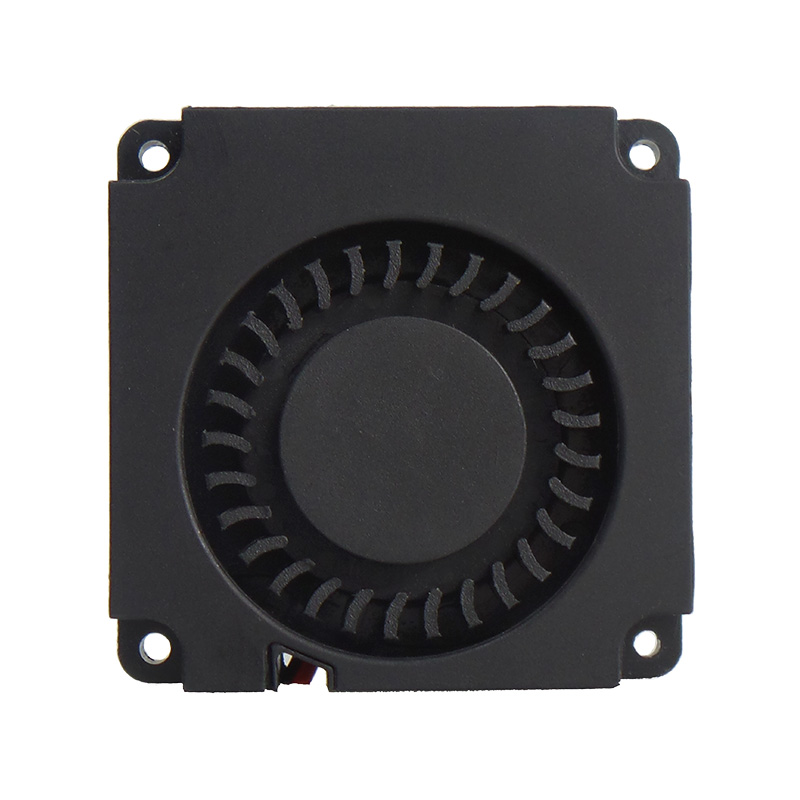

Coolcom burshless DC axial fans offer a wide range of cooling solutions. with large air flow value and low noise level
Suitable for: Mini motherboard, hair remover, etc.

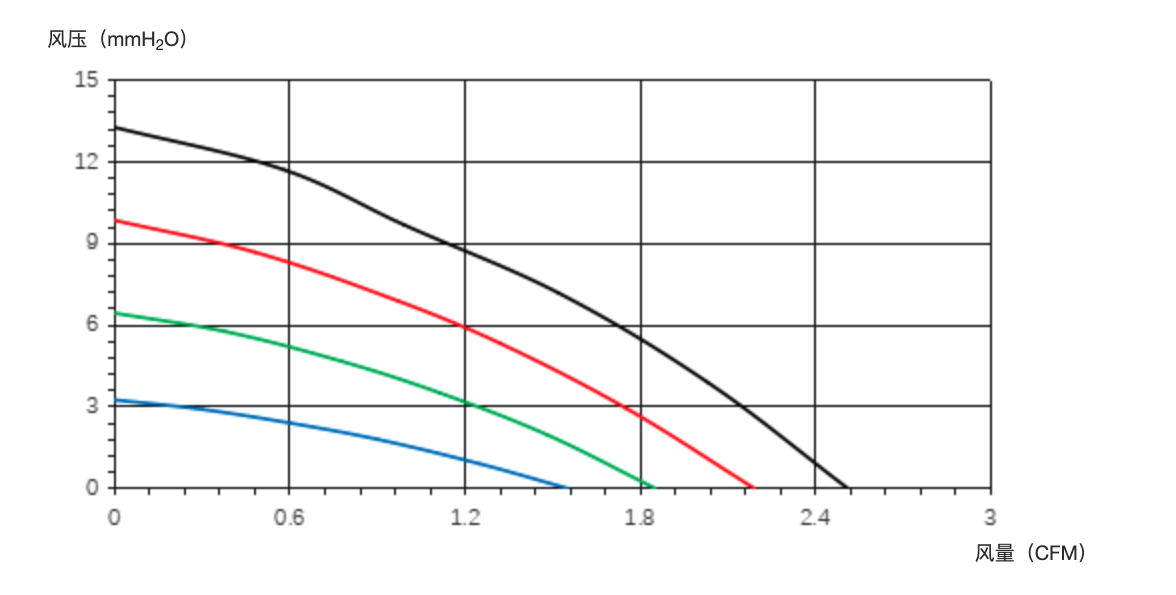

| Model | Size(mm) | Curve Color | Rated Voltage(V) | Current(A) | Speed(rpm) | Air Flow(cfm) | Pressure(mmho2) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM4010KB24U | 40*40*10 | black | 24 | 0.12 | 8000 | 2.51 | 13.27 | 35.2 | 11 | |
| CM4010KB24H | 40*40*10 | red | 24 | 0.06 | 7000 | 2.19 | 9.85 | 30.4 | 11 | |
| CM4010KB24M | 40*40*10 | green | 24 | 0.04 | 6000 | 1.85 | 6.44 | 26.6 | 11 | |
| CM4010KB12M | 40*40*10 | blue | 24 | 0.02 | 5000 | 1.55 | 3.25 | 22.7 | 11 | |
| CM4010KB12U | 40*40*10 | black | 12 | 0.15 | 8000 | 2.51 | 13.27 | 35.2 | 11 | |
| CM4010KB12H | 40*40*10 | red | 12 | 0.08 | 7000 | 2.19 | 9.85 | 30.4 | 11 | |
| CM4010KB12M | 40*40*10 | green | 12 | 0.06 | 6000 | 1.85 | 6.44 | 26.6 | 11 | |
| CM4010KB12L | 40*40*10 | blue | 12 | 0.04 | 5000 | 1.55 | 3.25 | 22.7 | 11 | |
| CM4010KB05U | 40*40*10 | black | 5 | 0.24 | 8000 | 2.51 | 13.27 | 35.2 | 11 | |
| CM4010KB05H | 40*40*10 | red | 5 | 0.18 | 7000 | 2.19 | 9.85 | 30.4 | 11 | |
| CM4010KB05M | 40*40*10 | green | 5 | 0.12 | 6000 | 1.85 | 6.44 | 26.6 | 11 | |
| CM4010KB05L | 40*40*10 | blue | 5 | 0.08 | 5000 | 1.55 | 3.25 | 22.7 | 11 |
