PBT with 30% glass filled UL94-V0
Optional voltage : 5v,12v
Optional Bearing : ball bearing, hydraulic bearing
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)

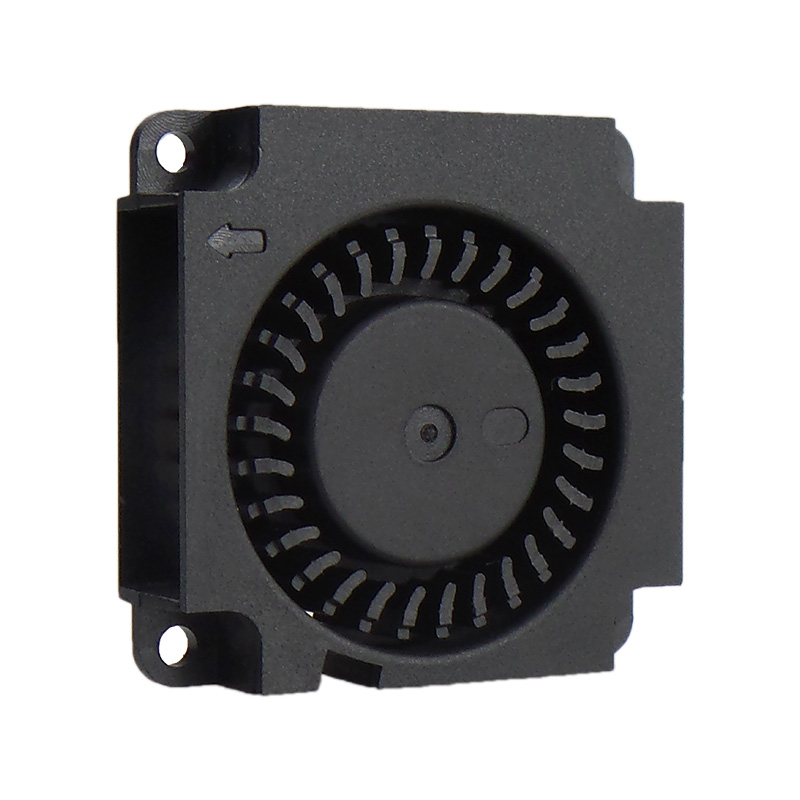

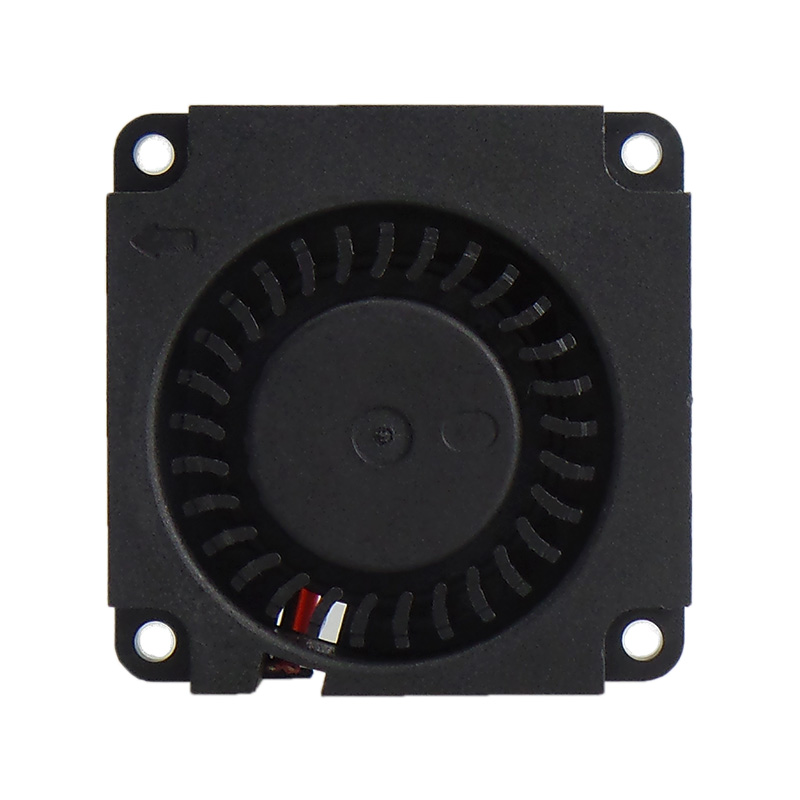

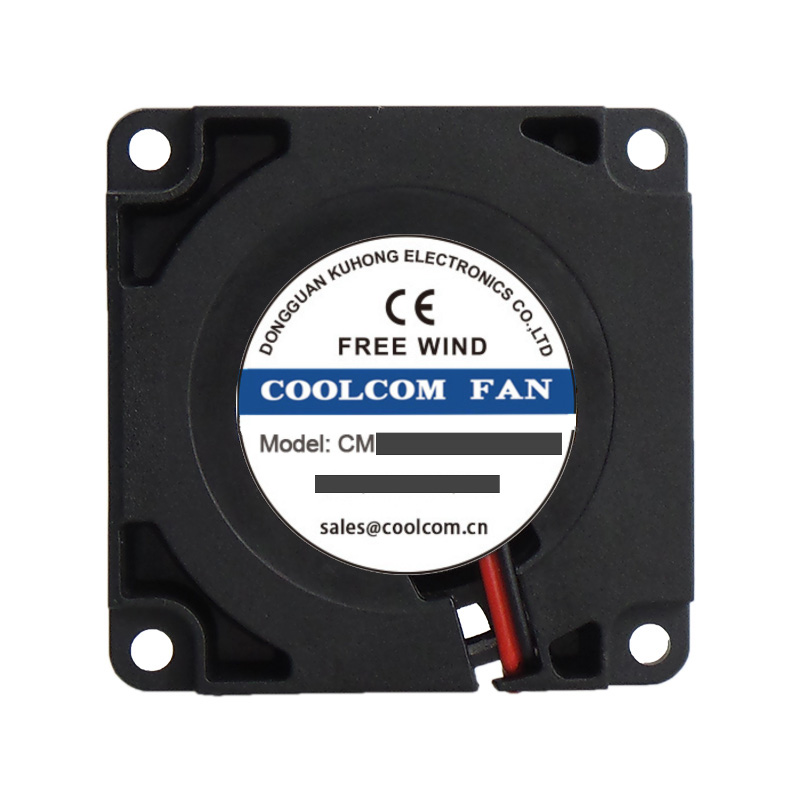

Coolcom burshless DC axial fans offer a wide range of cooling solutions. with large air flow value and low noise level
Suitable for: Mini motherboard, hair remover, etc.

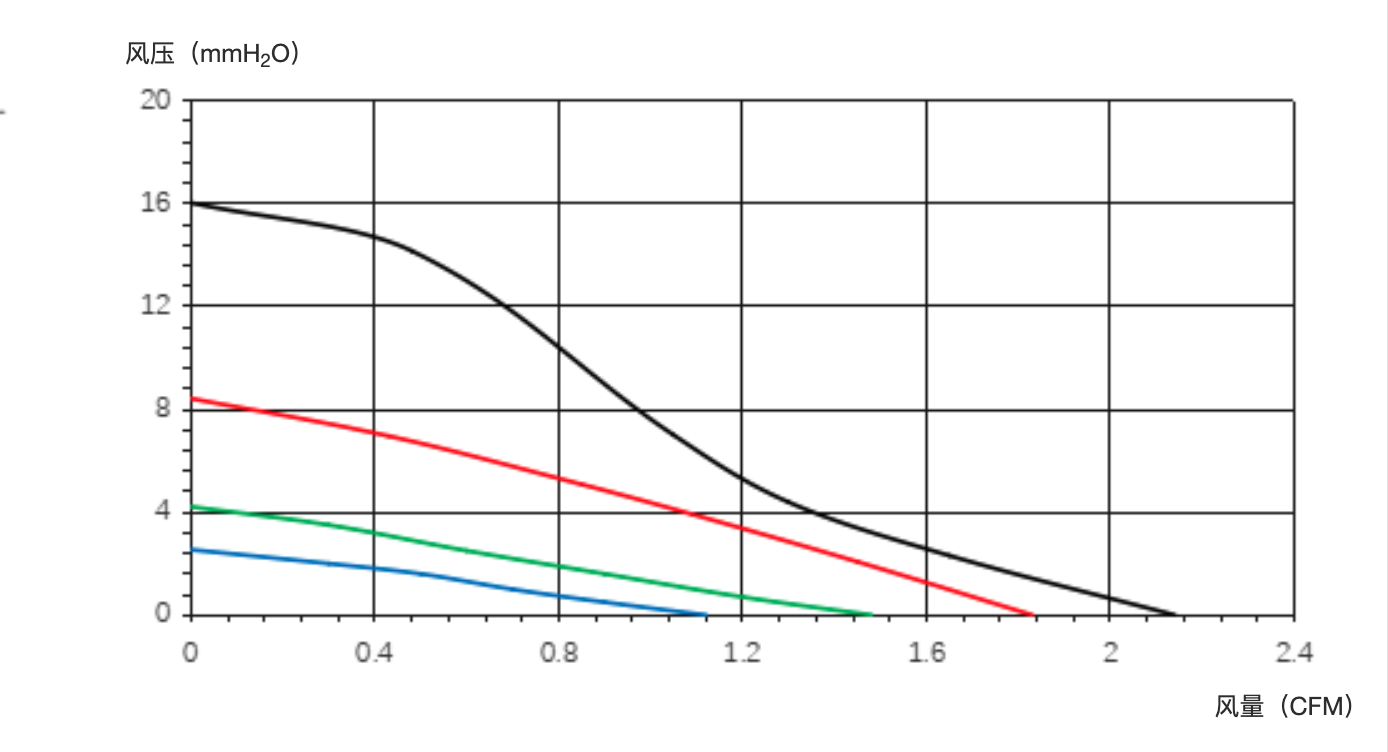

| Model | Size | Curve Color | Rated Voltage(v) | Current(A) | Speed(rpm) | Air Flow(cfm) | Pressure(mmh2o) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM3510KB12U | 35*35*10 | black | 12 | 0.2 | 11000 | 2.14 | 16.03 | 41.8 | 10 | |
| CM3510KB12H | 35*35*10 | red | 12 | 0.12 | 9000 | 1.83 | 8.42 | 35.3 | 10 | |
| CM3510KB12M | 35*35*10 | green | 12 | 0.08` | 7000 | 1.48 | 4.21 | 28.6 | 10 | |
| CM3510KB12L | 35*35*10 | blue | 12 | 0.04 | 5000 | 1.12 | 2.54 | 22.4 | 10 | |
| CM3510KB05U | 35*35*10 | black | 5 | 0.25 | 11000 | 2.14 | 16.03 | 21.8 | 10 | |
| CM3510KB05H | 35*35*10 | red | 5 | 0.15 | 9000 | 1.83 | 8.42 | 35.3 | 10 | |
| CM3510KB05M | 35*35*10 | green | 5 | 0.10 | 7000 | 1.48 | 4.21 | 28.6 | 10 | |
| CM3510KB05L | 35*35*10 | blue | 5 | 0.07 | 5000 | 1.12 | 2.54 | 22.4 | 10 |
