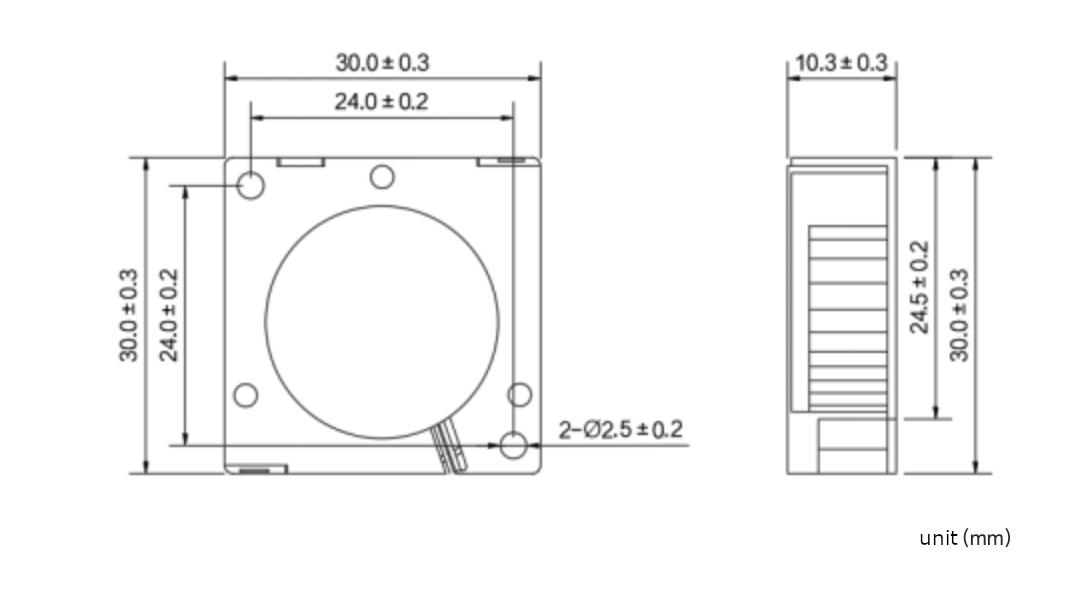

PBT(black) UL94-V0(30*30*10.3mm)
Optional voltage : 5v,12v
Optional Bearing : ball bearing, hydraulic bearing
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)

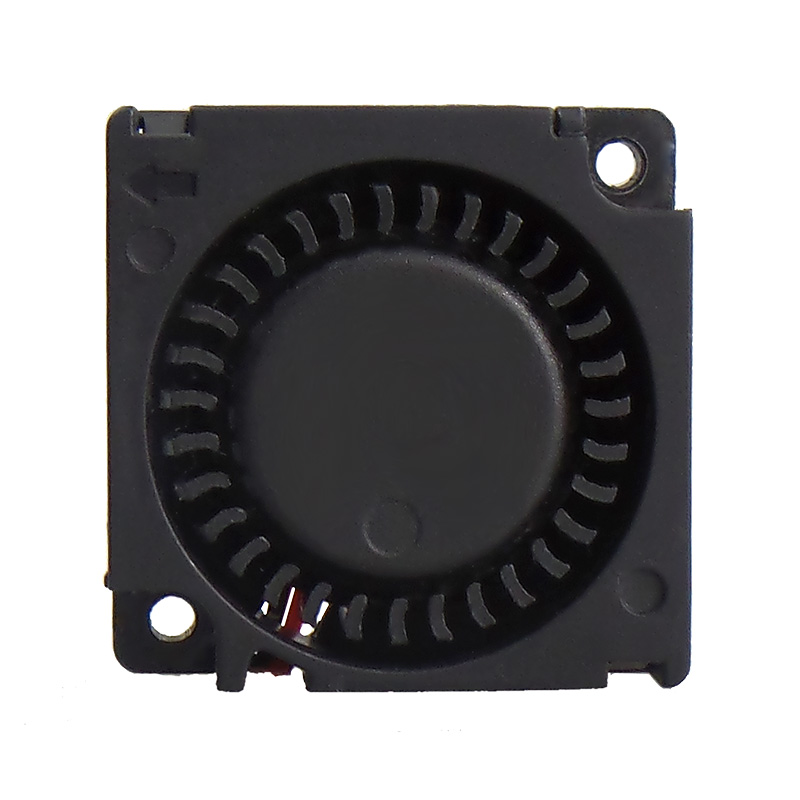

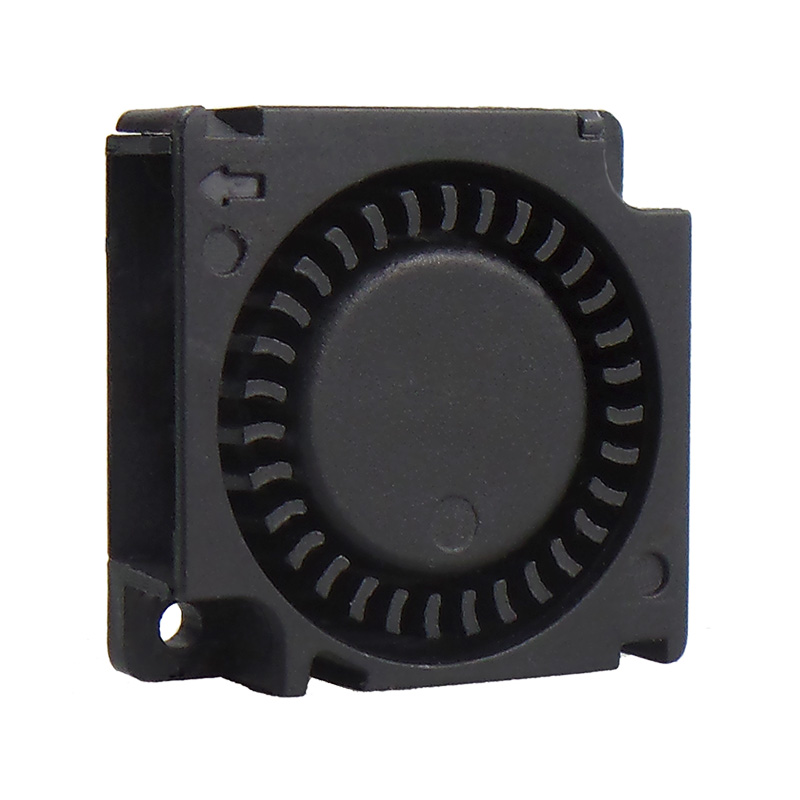

Coolcom burshless DC axial fans offer a wide range of cooling solutions. with large air flow value and low noise level
Suitable for: Mini motherboard, beauty device, etc.

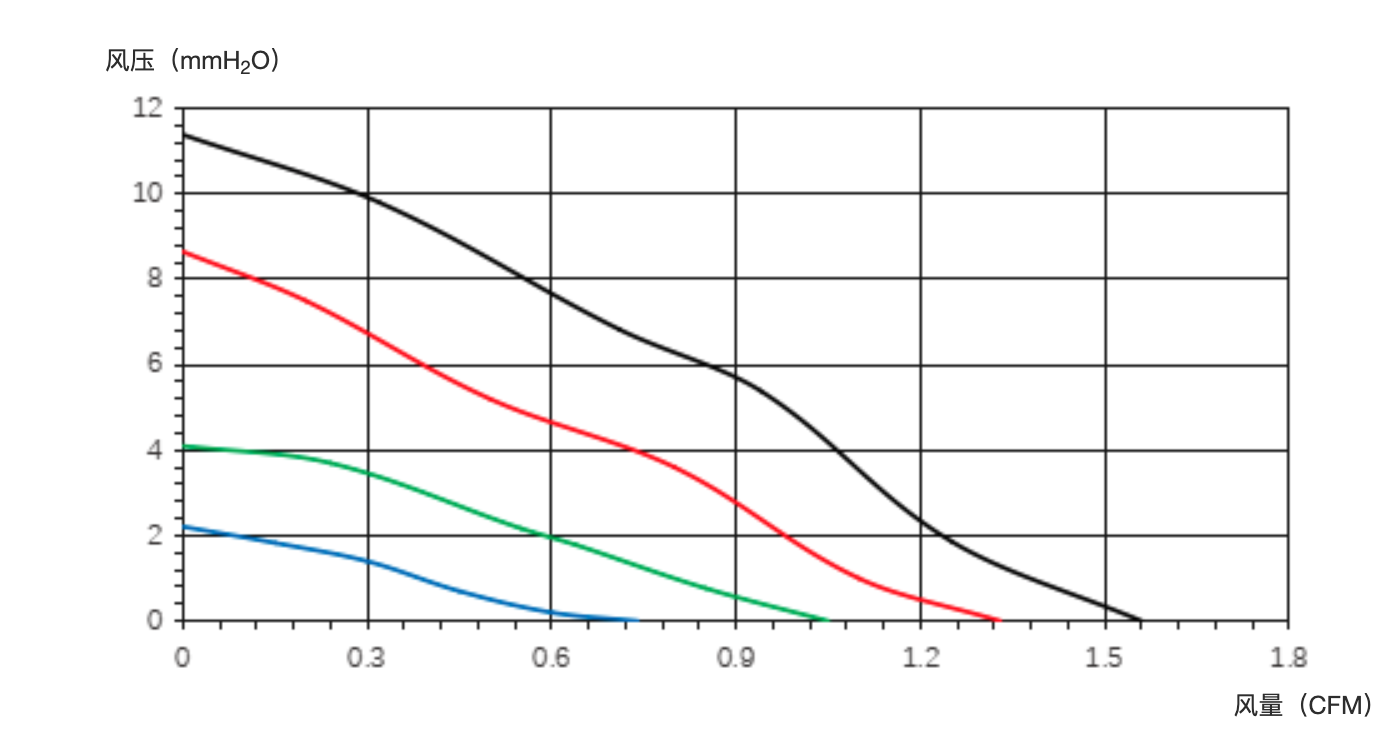

| Model | Size(mm) | Curve Color | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CFM) | Pressure(mmh2o) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM3010KB12U | 30*30*10.3 | black | 12 | 0.12 | 11000 | 1.56 | 11.39 | 37.6 | 9 | |
| CM3010KB12H | 30*30*10.3 | red | 12 | 0.08 | 9000 | 1.33 | 8.65 | 33.3 | 9 | |
| CM3010KB12M | 30*30*10.3 | green | 12 | 0.05 | 7000 | 1.05 | 4.10 | 27.4 | 9 | |
| CM3010KB12L | 30*30*10.3 | blue | 12 | 0.03 | 5000 | 0.74 | 2.21 | 22.1 | 9 | |
| CM3010KB05U | 30*30*10.3 | black | 5 | 0.22 | 11000 | 2.65 | 11.39 | 37.6 | 9 | |
| CM3010KB05H | 30*30*10.3 | red | 5 | 0.14 | 9000 | 1.33 | 8.65 | 33.3 | 9 | |
| CM3010KB05M | 30*30*10.3 | green | 5 | 0.10 | 7000 | 1.05 | 4.10 | 27.4 | 9 | |
| CM3010KB05L | 30*30*10.3 | blue | 5 | 0.07 | 5000 | 0.74 | 2.21 | 22.1 | 9 |
