material : steel + aluminum
tachoutput, PWM speed control, soft start, auto-restart ...

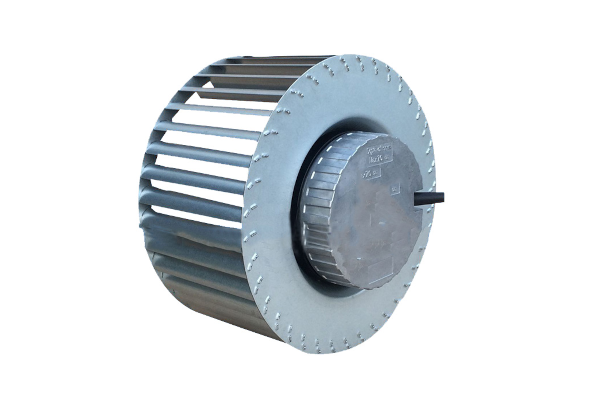

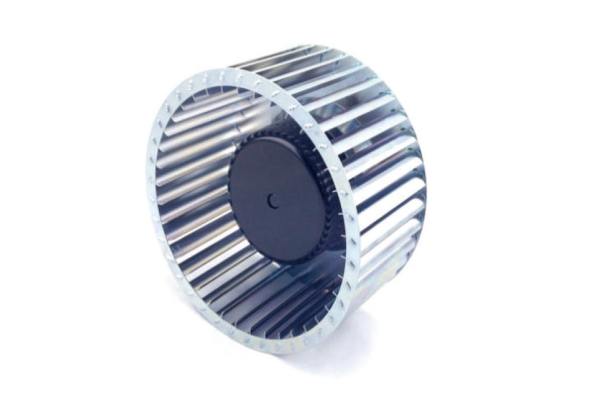

Coolcom Centrifugal fans from are available with forward- or backward-curved blades. Energy savings, convenient control and low noise -motor available with GreenTech EC technology or DC 24V and 48V . With integrated motor electronics, the DC or EC fans can be easily speed controlled via a 0-10 V signal or by the use of a potentiometer.
a customised solution is available for virtually any application, including compact air handling units, air curtains, fan coil units, air heaters for factory buildings or as a cooling fan for forced cooling of power converters, generators or telecommunications systems.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM14039KB12M | 140*39 | ball | 12 | 4.6 | 1900 | 327.4 M3/h | 517.8 pa | 59db | 1.4kg | |
| CM14039KB12L | 140*39 | ball | 12 | 2.2 | 1500 | 258.4 M3/h | 323.6 pa | 53db | 1.4kg | |
| CM14039KB24H | 140*39 | ball | 24 | 3.5 | 2300 | 396.6 M3/h | 761.7 pa | 64db | 1.4kg | |
| CM14039KB24M | 140*39 | ball | 24 | 2.2 | 1900 | 327.4 M3/h | 517.8 pa | 59db | 1.4kg | |
| CM14039KB24L | 140*39 | ball | 24 | 1.0 | 1500 | 258.4 M3/h | 323.6 pa | 53db | 1.4kg | |
| CM14039KB48H | 140*39 | ball | 48 | 1.7 | 2300 | 396.6 M3/h | 761.7 pa | 64db | 1.4kg | |
| CM14039KB48M | 140*39 | ball | 48 | 1.0 | 1900 | 327.4 M3/h | 517.8 pa | 59db | 1.4kg | |
| CM14039KB48L | 140*39 | ball | 48 | 0.5 | 1500 | 258.4 M3/h | 323.6 pa | 53db | 1.4kg |
