PBT with 30% glass filled UL94-V0
tachometer output or locked rotor alarm signal; PWM speed control

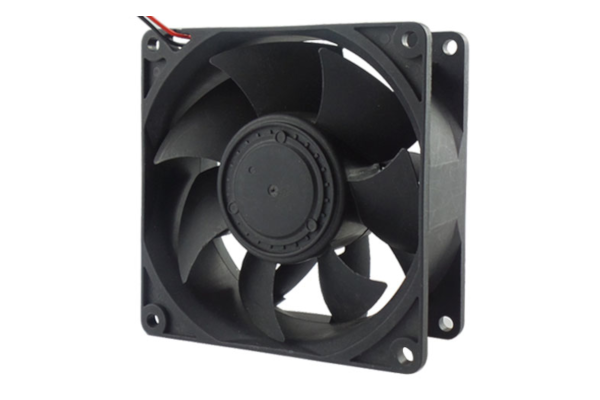

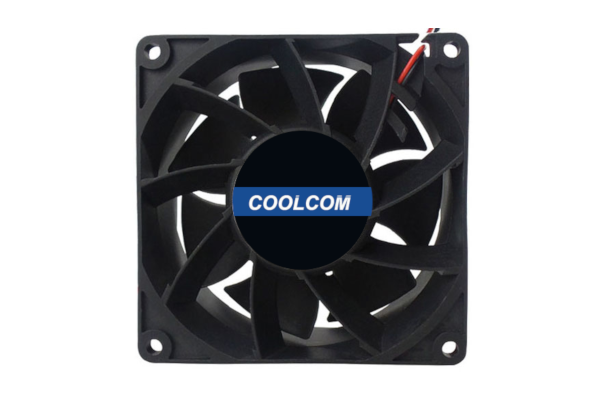

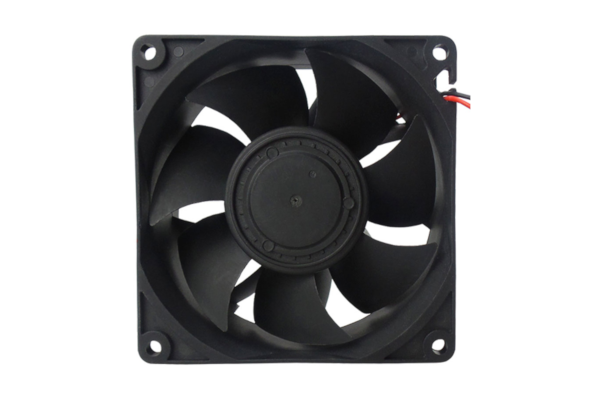

Coolcom burshless DC axial fans with large air flow value , low noise level and long life span , voltage available for 12v ,24v and 48v .provide many optional function to meet with customer's rquirement
| Model | Size | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM9238AS12X | 92*38 | ball or sleeve | 12 | 0.21 | 3000 | 65.95 cfm | 5.44 mmAq | 40.9 | 92g | |
| CM9238AS12L | 92*38 | ball or sleeve | 12 | 0.38 | 3600 | 79.14cfm | 7.83mmAq | 45.1 | 92g | |
| CM9238AS12M | 92*38 | ball or sleeve | 12 | 0.5 | 4000 | 87.94cfm | 9.67mmAq | 48 | 92g | |
| CM9238AS12H | 92*38 | ball or sleeve | 12 | 0.62 | 4400 | 96.73cfm | 11.70mmAq | 50.8 | 92g | |
| CM9238AS12U | 92*38 | ball or sleeve | 12 | 0.84 | 4800 | 105.52cfm | 13.92mmAq | 53 | 92g | |
| CM9238AS24X | 92*38 | ball or sleeve | 24 | 0.11 | 3000 | 65.95 cfm | 5.44mmAq | 40.9 | 92g | |
| CM9238AS24L | 92*38 | ball or sleeve | 24 | 0.19 | 3600 | 79.14cfm | 7.83mmAq | 45.1 | 92g | |
| CM9238AS24M | 92*38 | ball or sleeve | 24 | 0.25 | 4000 | 87.94cfm | 9.67mmAq | 48 | 92g | |
| CM9238AS24H | 92*38 | ball or sleeve | 24 | 0.31 | 4400 | 96.73cfm | 11.70mmAq | 50.8 | 92g | |
| CM9238AS24U | 92*38 | ball or sleeve | 24 | 0.42 | 4800 | 105.52cfm | 13.92mmAq | 53 | 92g | |
| CM9238AS48X | 92*38 | ball or sleeve | 48 | 0.05 | 3000 | 65.95 cfm | 5.44mmAq | 40.9 | 92g | |
| CM9238AS48L | 92*38 | ball or sleeve | 48 | 0.1 | 3600 | 79.14cfm | 7.83mmAq | 45.1 | 92g | |
| CM9238AS48M | 92*38 | ball or sleeve | 48 | 0.13 | 4000 | 87.94cfm | 9.67mmAq | 48 | 92g | |
| CM9238AS48H | 92*38 | ball or sleeve | 48 | 0.16 | 4400 | 96.73cfm | 11.70mmAq | 50.8 | 92g | |
| CM9238AS48U | 92*38 | ball or sleeve | 48 | 0.21 | 4800 | 105.52cfm | 13.92mmAq | 53 | 92g |
