PBT with 30% glass filled UL94-V0
tachometer output or locked rotor alarm signal; PWM speed control

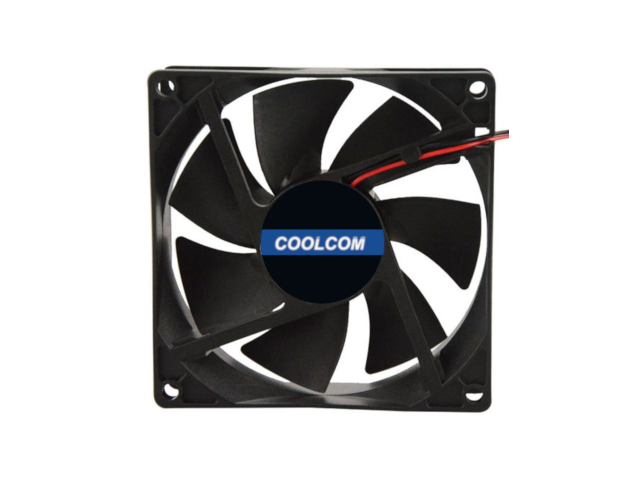

Coolcom burshless DC axial fans with large air flow value , low noise level and long life span , voltage available for 12v ,24v and 48v .provide many optional function to meet with customer's rquirement
| Model | Size | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM9228AS12L | 92*28 | ball or sleeve | 12 | 0.16 | 2400 | 58.00 CFM | 3.05 mmAq | 34.4 | 88g | |
| CM9228AS12M | 92*28 | ball or sleeve | 12 | 0.25 | 2800 | 67.67CFM | 4.15 mmAq | 38 | 88g | |
| CM9228AS12H | 92*28 | ball or sleeve | 12 | 0.41 | 3200 | 77.33CFM | 5.42 mmAq | 41.6 | 88g | |
| CM9228AS12U | 92*28 | ball or sleeve | 12 | 0.54 | 3600 | 87.00CFM | 6.86 mmAq | 44.8 | 88g | |
| CM9228AS24L | 92*28 | ball or sleeve | 24 | 0.08 | 2400 | 58.00CFM | 3.05 mmAq | 34.4 | 88g | |
| CM9228AS24M | 92*28 | ball or sleeve | 24 | 0.12 | 2800 | 67.67CFM | 4.15 mmAq | 38 | 88g | |
| CM9228AS24H | 92*28 | ball or sleeve | 24 | 0.2 | 3200 | 77.33 | 5.42 mmAq | 41.6 | 88g | |
| CM9228AS24U | 92*28 | ball or sleeve | 24 | 0.27 | 3600 | 87.00 | 6.86 mmAq | 44.8 | 88g |
