PBT with 30% glass filled UL94-V0
tachometer output or locked rotor alarm signal; PWM speed control

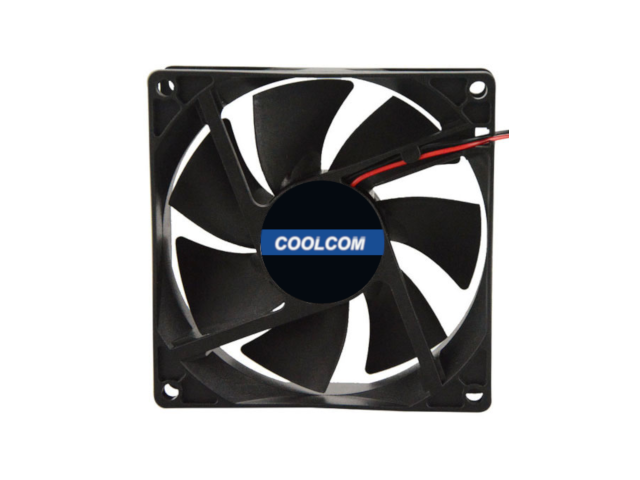

Coolcom burshless DC axial fans with large air flow value , low noise level and long life span , voltage available for 12v ,24v and 48v .provide many optional function to meet with customer's rquirement
| Model | Size | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM9225AS12X | 92*25 | ball or sleeve | 12 | 0.12 | 2000 | 39.14 CFM | 1.76 mmAq | 30.3 | 85g | |
| CM9225AS12L | 92*25 | ball or sleeve | 12 | 0.20 | 2800 | 54.05CFM | 3.35 mmAq | 36.7 | 85g | |
| CM9225AS12M | 92*25 | ball or sleeve | 12 | 0.26 | 3200 | 61.51CFM | 4.34 mmAq | 39.1 | 85g | |
| CM9225AS12H | 92*25 | ball or sleeve | 12 | 0.30 | 3600 | 68.97CFM | 5.46 mmAq | 42.8 | 85g | |
| CM9225AS12U | 92*25 | ball or sleeve | 12 | 0.44 | 4000 | 76.42CFM | 6.71 mmAq | 46.7 | 85g | |
| CM9225AS24X | 92*25 | ball or sleeve | 24 | 0.06 | 2000 | 39.14 CFM | 1.76 mmAq | 30.3 | 85g | |
| CM9225AS24L | 92*25 | ball or sleeve | 24 | 0.10 | 2800 | 54.05CFM | 3.35 mmAq | 36.7 | 85g | |
| CM9225AS24M | 92*25 | ball or sleeve | 24 | 0.13 | 3200 | 61.51CFM | 4.34 mmAq | 39.1 | 85g | |
| CM9225AS24H | 92*25 | ball or sleeve | 24 | 0.15 | 3600 | 68.97CFM | 5.46 mmAq | 42.8 | 85g | |
| CM9225AS24U | 92*25 | ball or sleeve | 24 | 0.20 | 4000 | 76.42CFM | 6.71 mmAq | 46.7 | 85g | |
| CM9225AS48M | 92*25 | ball or sleeve | 48 | 0.07 | 3200 | 61.51CFM | 4.34 mmAq | 39.1 | 85g | |
| CM9225AS48H | 92*25 | ball or sleeve | 48 | 0.08 | 3600 | 68.97CFM | 5.46 mmAq | 42.8 | 85g | |
| CM9225AS48U | 92*25 | ball or sleeve | 48 | 0.10 | 4000 | 76.42CFM | 6.71 mmAq | 46.7 | 85g |
