PBT with 30% glass filled UL94-V0
tachometer output or locked rotor alarm signal; PWM speed control

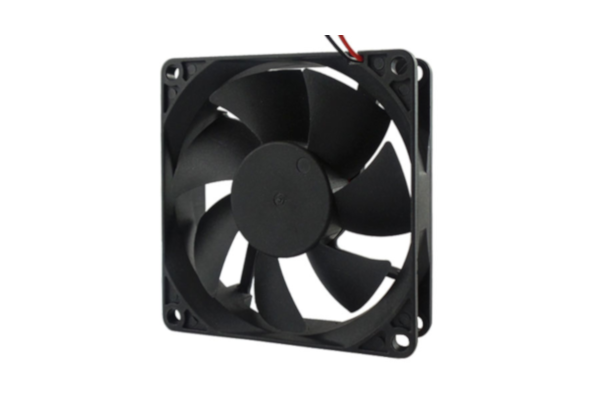

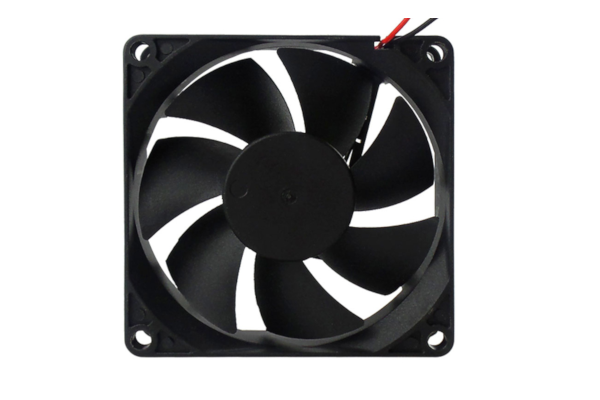

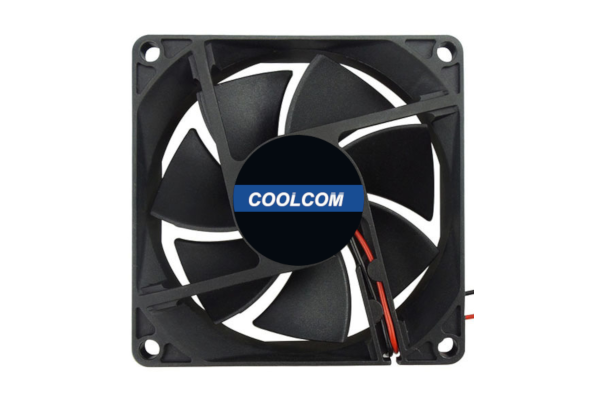

Coolcom burshless DC axial fans with large air flow value , low noise level and long life span , voltage available for 12v ,24v and 48v .provide many optional function to meet with customer's rquirement
| Model | Size | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM8025AS12X | 80*25 | ball or sleeve | 12 | 0.20 | 3000 | 43.23 CFM | 3.77mmAq | 31.5 | 75g | |
| CM8025AS12L | 80*25 | ball or sleeve | 12 | 0.22 | 3600 | 51.59 CFM | 5.37 mmAq | 38.1 | 75g | |
| CM8025AS12M | 80*25 | ball or sleeve | 12 | 0.31 | 4200 | 59.96 CFM | 7.25 mmAq | 41.5 | 75g | |
| CM8025AS12H | 80*25 | ball or sleeve | 12 | 0.40 | 4800 | 68.33 CFM | 9.42 mmAq | 44.2 | 75g | |
| CM8025AS12D | 80*25 | ball or sleeve | 12 | 0.55 | 5200 | 73.91 CFM | 11.02 mmAq | 46.8 | 75g | |
| CM8025AS24X | 80*25 | ball or sleeve | 24 | 0.10 | 3000 | 43.23 CFM | 3.77mmAq | 31.5 | 75g | |
| CM8025AS24L | 80*25 | ball or sleeve | 24 | 0.11 | 3600 | 51.59 CFM | 5.37 mmAq | 38.1 | 75g | |
| CM8025AS24M | 80*25 | ball or sleeve | 24 | 0.15 | 4200 | 59.96 CFM | 7.25 mmAq | 41.5 | 75g | |
| CM8025AS24H | 80*25 | ball or sleeve | 24 | 0.20 | 4800 | 68.33 CFM | 9.42 mmAq | 44.2 | 75g | |
| CM8025AS24D | 80*25 | ball or sleeve | 24 | 0.28 | 5200 | 73.91 CFM | 11.02 mmAq | 46.8 | 75g | |
| CM8025AS48X | 80*25 | ball or sleeve | 48 | 0.05 | 3000 | 43.23 CFM | 3.77mmAq | 31.5 | 75g | |
| CM8025AS48L | 80*25 | ball or sleeve | 48 | 0.06 | 3600 | 51.59 CFM | 5.37 mmAq | 38.1 | 75g | |
| CM8025AS48M | 80*25 | ball or sleeve | 48 | 0.08 | 4200 | 59.96 CFM | 7.25 mmAq | 41.5 | 75g | |
| CM8025AS48H | 80*25 | ball or sleeve | 48 | 0.10 | 4800 | 68.33 CFM | 9.42 mmAq | 44.2 | 75g | |
| CM8025AS48D | 80*25 | ball or sleeve | 48 | 0.14 | 5200 | 73.91 CFM | 11.02 mmAq | 46.8 | 75g |
