PBT with 30% glass filled UL94-V0
tachometer output or locked rotor alarm signal; PWM speed control

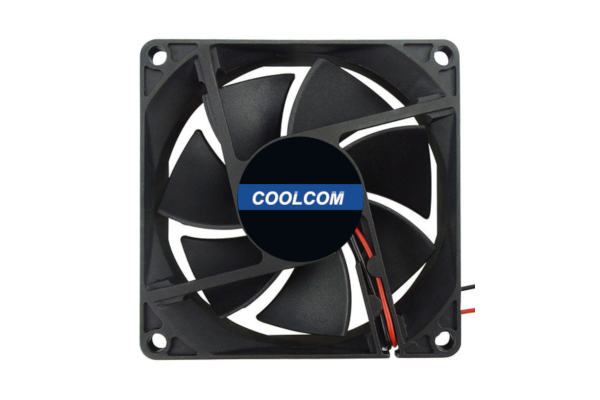

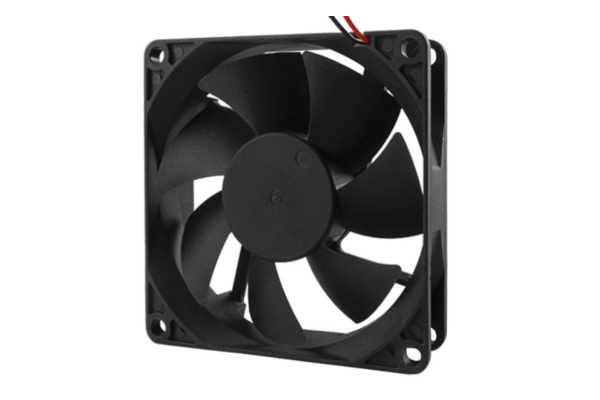

Coolcom burshless DC axial fans with large air flow value , low noise level and long life span , voltage available for 12v ,24v and 48v .provide many optional function to meet with customer's rquirement
| Model | Size | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM8020AS12X | 80*20 | ball or sleeve | 12 | 0.12 | 2500 | 26.08 CFM | 2.34 mmAq | 27.2 | 70 g | |
| CM8020AS12L | 80*20 | ball or sleeve | 12 | 0.16 | 3000 | 31.10 CFM | 3.33 mmAq | 32.8 | 70g | |
| CM8020AS12M | 80*20 | ball or sleeve | 12 | 0.22 | 3500 | 36.12 CFM | 4.49 mmAq | 36.0 | 70g | |
| CM8020AS12H | 80*20 | ball or sleeve | 12 | 0.28 | 4000 | 41.13 CFM | 5.83 mmAq | 40.4 | 70g | |
| CM8020AS12D | 80*20 | ball or sleeve | 12 | 0.24 | 4500 | 46.15 CFM | 7.32mmAq | 43.3 | 70g | |
| CM8020AS24X | 80*20 | ball or sleeve | 24 | 0.06 | 2500 | 26.8 CFM | 2.34 mmAq | 27.2 | 70g | |
| CM8020AS24L | 80*20 | ball or sleeve | 24 | 0.08 | 3000 | 31.10 CFM | 3.33mmAq | 32.8 | 70g | |
| CM8020AS24M | 80*20 | ball or sleeve | 24 | 0.11 | 3500 | 36.12 CFM | 4.49mmAq | 36.0 | 70g | |
| CM8020AS24H | 80*20 | ball or sleeve | 24 | 0.14 | 4000 | 41.13 CFM | 5.83mmAq | 40.4 | 70g | |
| CM8020AS24D | 80*20 | ball or sleeve | 24 | 0.17 | 4500 | 46.15 CFM | 7.32mmAq | 43.3 | 70g |
