PBT with 30% glass filled UL94-V0
tachometer output or locked rotor alarm signal; PWM speed control

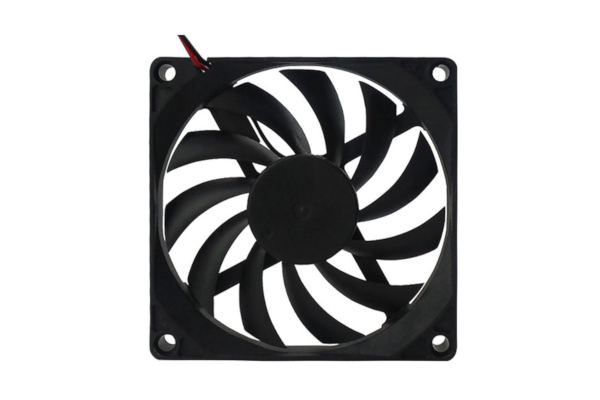

Coolcom burshless DC axial fans with large air flow value , low noise level and long life span , voltage available for 12v ,24v and 48v .provide many optional function to meet with customer's rquirement
| Model | Size | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM8010AS05X | 80*10 | ball | 05 | 0.08 | 1500 | 12.55 CFM | 0.65 mmAq | 20 DB | 35g | |
| CM8010AS05L | 80*10 | ball | 05 | 0.11 | 2000 | 16.73 CFM | 1.15 mmAq | 22.6 DB | 35g | |
| CM8010AS05M | 80*10 | ball | 05 | 0.21 | 2500 | 20.91 CFM | 1.79 mmAq | 26.6 DB | 35g | |
| CM8010AS12X | 80*10 | ball | 12 | 0.03 | 1500 | 12.55 CFM | 0.65mmAq | 20 DB | 35g | |
| CM8010AS12L | 80*10 | ball | 12 | 0.05 | 2000 | 16.73 CFM | 1.15 mmAq | 22.6DB | 35g | |
| CM8010AS12M | 80*10 | ball | 12 | 0.09 | 2500 | 20.91 CFM | 1.79 mmAq | 26.6 DB | 35g | |
| CM8010AS12H | 80*10 | ball | 12 | 0.15 | 3000 | 25.10 CFM | 2.58 mmAq | 31.3 DB | 35g | |
| CM8010AS12U | 80*10 | ball | 12 | 0.19 | 3500 | 29.28 CFM | 3.52 mmAq | 34.6 DB | 35g | |
| CM8010AS24M | 80*10 | ball | 24 | 0.05 | 2500 | 20.91 CFM | 1.79 mmAq | 26.6 DB | 35g | |
| CM8010AS24H | 80*10 | ball | 24 | 0.08 | 3000 | 25.10 CFM | 2.58 mmAq | 31.1 DB | 35g | |
| CM8010AS24U | 80*10 | ball | 24 | 0.10 | 3500 | 29.28 CFM | 3.52 mmAq | 34.6 DB | 35g |
