PBT with 30% glass filled UL94-V0
tachometer output or locked rotor alarm signal; PWM speed control

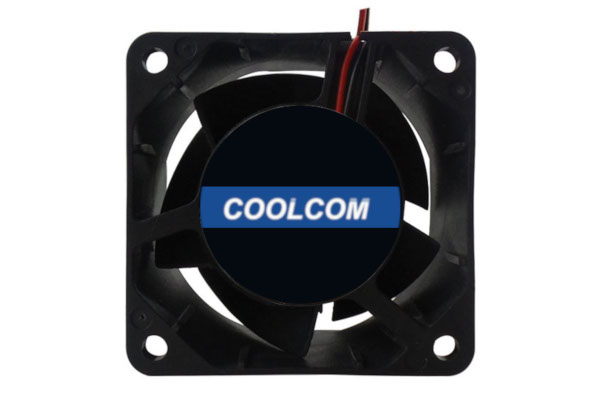

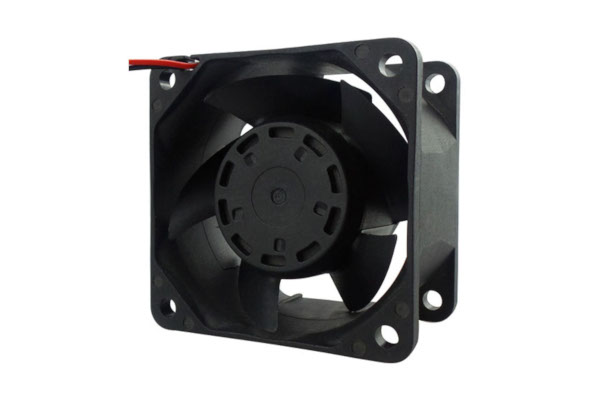

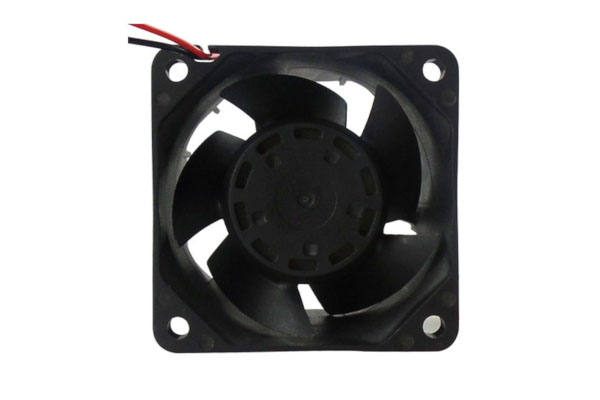

Coolcom burshless DC axial fans with large air flow value , low noise level and long life span , voltage available for 12v ,24v and 48v .provide many optional function to meet with customer's rquirement
| Model | Size | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM6038AB24U | 60*38 | ball or sleeve | 24V | 0.5 | 10000 | 49.83 cfm | 21.3 mmH2O | 57 | 106 | |
| CM6038AB24H | 60*38 | ball or sleeve | 24V | 0.37 | 9000 | 43.51 cfm | 16.4 mmH2O | 53.9 | 106 | |
| CM6038AB24M | 60*38 | ball or sleeve | 24V | 0.3 | 8000 | 36.72 cfm | 12.5 mmH2O | 49.3 | 106 | |
| CM6038AB24L | 60*38 | ball or sleeve | 24V | 0.2 | 7000 | 30.58 cfm | 8.77 mmH2O | 44.4 | 106 | |
| CM6038AB12U | 60*38 | ball or sleeve | 12V | 1 | 10000 | 49.83 cfm | 21.3 mmH2O | 57 | 106 | |
| CM6038AB12H | 60*38 | ball or sleeve | 12V | 0.65 | 9000 | 43.51 cfm | 16.4 mmH2O | 53.9 | 106 | |
| CM6038AB12M | 60*38 | ball or sleeve | 12V | 0.6 | 8000 | 36.72 cfm | 8.77 mmH2O | 49.3 | 106 | |
| CM6038AB12L | 60*38 | ball or sleeve | 12V | 0.4 | 7000 | 30.58 cfm | 8.77 mmH2O | 44.4 | 106 |
