PBT with 30% glass filled UL94-V0
Optional voltage : 5v,12v,24v,48v
Optional Bearing : ball, sleeve
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)
Coolcom burshless DC axial fans offer a wide range of cooling solutions. with large air flow value and low noise level

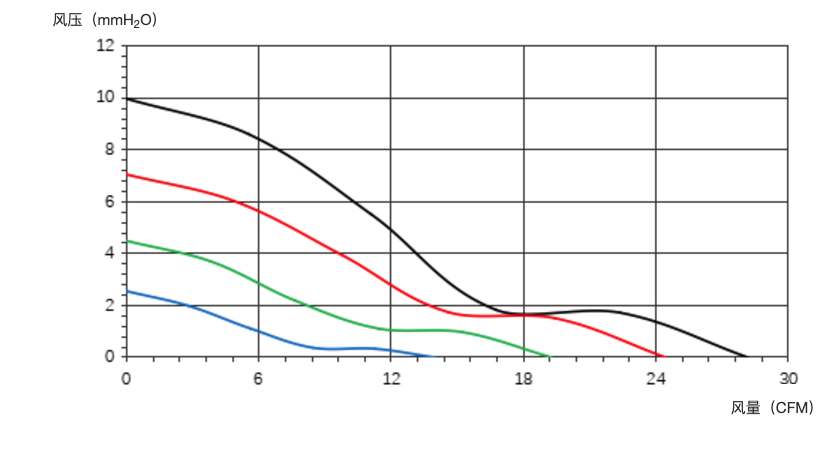

| Model | Size(MM) | Curve Color | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CFM) | Pressure(MMH2O) | Noise(DB) | Weight(G) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM6025AB48U | 60*60*25 | black | 48 | 0.12 | 6000 | 28.16 | 9.97 | 42.7 | 53 | |
| CM6025AB48H | 60*60*25 | red | 48 | 0.07 | 5000 | 24.43 | 7.04 | 36.3 | 53 | |
| CM6025AB48M | 60*60*25 | green | 48 | 0.04 | 4000 | 19.26 | 4.49 | 30.6 | 53 | |
| CM6025AB48L | 60*60*25 | blue | 48 | 0.02 | 3000 | 14.68 | 2.49 | 25.9 | 53 | |
| CM6025AB24U | 60*60*25 | black | 24 | 0.20 | 6000 | 28.16 | 9.97 | 42.7 | 53 | |
| CM6025AB24H | 60*60*25 | red | 24 | 0.12 | 5000 | 24.43 | 7.04 | 36.3 | 53 | |
| CM6025AB24M | 60*60*25 | green | 24 | 0.06 | 4000 | 19.26 | 4.49 | 30.6 | 53 | |
| CM6025AB24L | 60*60*25 | blue | 24 | 0.03 | 3000 | 14.68 | 2.49 | 25.9 | 53 | |
| CM6025AB12U | 60*60*25 | black | 12 | 0.30 | 6000 | 28.16 | 9.97 | 42.7 | 53 | |
| CM6025AB12H | 60*60*25 | red | 12 | 0.20 | 5000 | 24.43 | 7.04 | 36.3 | 53 | |
| CM6025AB12M | 60*60*25 | green | 12 | 0.12 | 4000 | 19.26 | 4.49 | 30.6 | 53 | |
| CM6025AB12L | 60*60*25 | blue | 12 | 0.08 | 3000 | 14.68 | 2.19 | 25.9 | 53 | |
| CM6025AB05U | 60*60*25 | black | 05 | 0.55 | 6000 | 28.16 | 9.97 | 42.7 | 53 | |
| CM6025AB05H | 60*60*25 | red | 05 | 0.35 | 5000 | 24.43 | 7.04 | 36.3 | 53 | |
| CM6025AB05M | 60*60*25 | green | 05 | 0.20 | 4000 | 19.26 | 4.49 | 30.6 | 53 | |
| CM6025AB12L | 60*60*25 | blue | 05 | 0.12 | 3000 | 14.68 | 2.19 | 25.9 | 53 |
