PBT with 30% glass filled UL94-V0
Optional voltage : 5v,12v,24v
Optional Bearing : ball, sleeve
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)
Coolcom burshless DC axial fans offer a wide range of cooling solutions. with large air flow value and low noise level

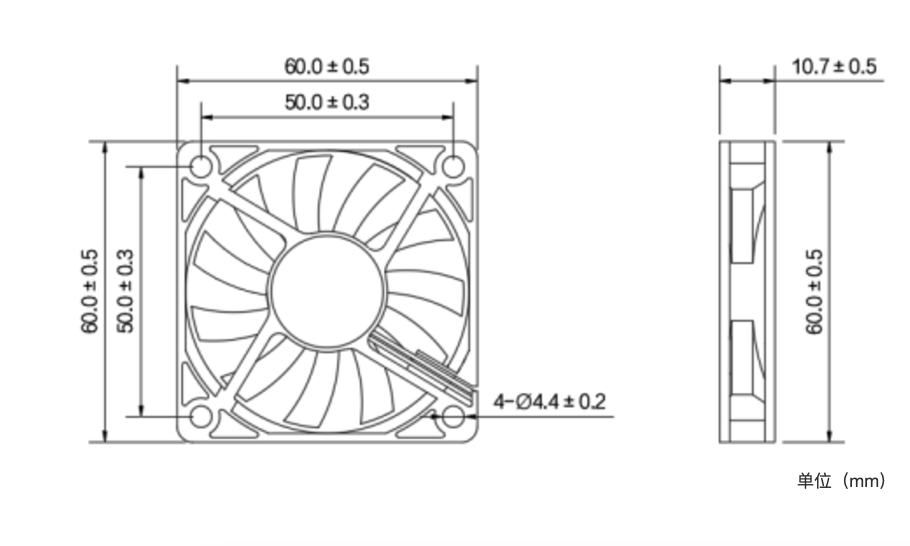

| Model | Size(mm) | Curve Color | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CFM) | Pressure(mmh2o) | Noise(DB) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM6010AB24U | 60*60*10 | black | 24 | 0.1 | 4500 | 16.76 | 2.82 | 36.5 | 23 | |
| CM6010AB24H | 60*60*10 | red | 24 | 0.04 | 4000 | 14.74 | 2.28 | 32.3 | 23 | |
| CM6010AB24M | 60*60*10 | green | 24 | 0.03 | 3500 | 12.94 | 1.70 | 29.2 | 23 | |
| CM6010AB24L | 60*60*10 | blue | 24 | 0.02 | 3000 | 10.77 | 1.22 | 26.7 | 23 | |
| CM6010AB12U | 60*60*10 | black | 12 | 0.15 | 4500 | 16.76 | 2.82 | 36.5 | 23 | |
| CM6010AB12H | 60*60*10 | red | 12 | 0.08 | 4000 | 14.74 | 2.28 | 32.3 | 23 | |
| CM6010AB12M | 60*60*10 | green | 12 | 0.06 | 3500 | 12.94 | 1.70 | 29.2 | 23 | |
| CM6010AB12L | 60*60*10 | blue | 12 | 0.04 | 3000 | 10.77 | 1.22 | 26.7 | 23 | |
| CM6010AB05U | 60*60*10 | black | 5 | 0.25 | 4500 | 16.76 | 2.82 | 36.5 | 23 | |
| CM6010AB05H | 60*60*10 | red | 5 | 0.20 | 4000 | 14.74 | 2.28 | 32.3 | 23 | |
| CM6010AB05M | 60*60*10 | green | 5 | 0.15 | 3500 | 12.94 | 1.70 | 29.2 | 23 | |
| CM6010AB05L | 60*60*10 | blue | 5 | 0.08 | 3000 | 10.77 | 1.22 | 29.2 | 23 |
