PBT with 30% glass filled UL94-V0
Optional voltage : 5v,12v
Optional Bearing : ball, sleeve
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)

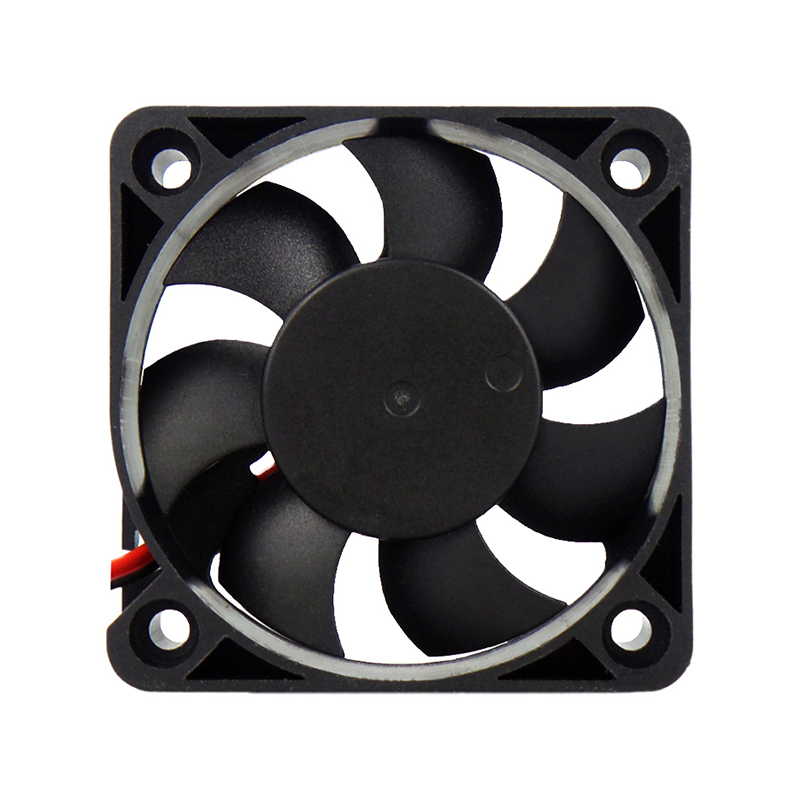

Coolcom burshless DC axial fans offer a wide range of cooling solutions. with large air flow value and low noise level
| Model | Size(mm) | Curve Color | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CFM) | Pressure(mmh2o) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM5010BAB24U | 50*50*10 | black | 24 | 0.05 | 7000 | 11.33 | 4.65 | 36.2 | 18 | |
| CM5010BAB24H | 50*50*10 | red | 24 | 0.04 | 6000 | 9.73 | 3.58 | 32.1 | 18 | |
| CM5010BAB24M | 50*50*10 | green | 24 | 0.03 | 5000 | 8.05 | 2.58 | 28.7 | 18 | |
| CM5010BAB24L | 50*50*10 | blue | 24 | 0.02 | 4000 | 6.36 | 1.73 | 23.8 | 18 | |
| CM5010BAB24U | 50*50*10 | black | 12 | 0.10 | 7000 | 11.33 | 4.65 | 36.2 | 18 | |
| CM5010BAB24H | 50*50*10 | red | 12 | 0.08 | 6000 | 9.73 | 3.58 | 32.1 | 18 | |
| CM5010BAB24M | 50*50*10 | green | 12 | 0.06 | 5000 | 8.05 | 2.58 | 28.7 | 18 | |
| CM5010BAB24L | 50*50*10 | blue | 12 | 0.04 | 4000 | 6.36 | 1.73 | 23.8 | 18 | |
| CM5010BAB24U | 50*50*10 | black | 5 | 0.20 | 7000 | 11.33 | 4.65 | 36.2 | 18 | |
| CM5010BAB24H | 50*50*10 | red | 5 | 0.16 | 6000 | 9.73 | 3.58 | 32.1 | 18 | |
| CM5010BAB24M | 50*50*10 | green | 5 | 0.10 | 5000 | 8.05 | 2.58 | 28.7 | 18 | |
| CM5010BAB24L | 50*50*10 | blue | 5 | 0.06 | 4000 | 6.36 | 2.58 | 23.8 | 18 |
