PBT with 30% glass filled UL94-V0
Optional voltage : 5v,12v,24v
Optional Bearing : ball bearing, hydraulic bearing
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)

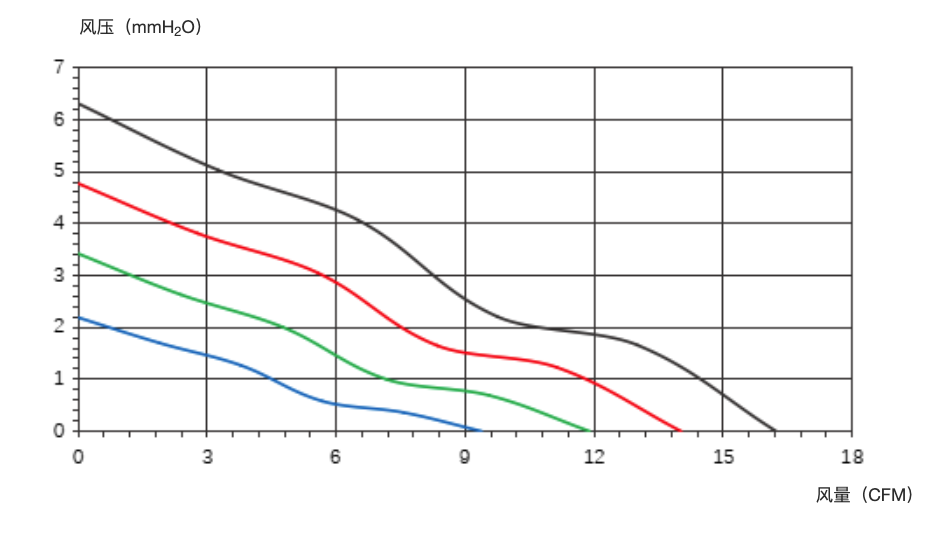

| Model | Size | Curve Color | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CFM) | Pressure(mmh2o) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM45010AAB24U | 50*50*10 | black | 24 | 0.15 | 7000 | 16.23 | 6.31 | 38.1 | 20 | |
| CM45010AAB24H | 50*50*10 | red | 24 | 0.10 | 6000 | 14.02 | 4.77 | 33.7 | 20 | |
| CM45010AAB24M | 50*50*10 | green | 24 | 0.08 | 5000 | 11.89 | 3.42 | 30.4 | 20 | |
| CM45010AAB24L | 50*50*10 | blue | 24 | 0.04 | 4000 | 9.38 | 2.19 | 25.2 | 20 | |
| CM45010AAB12U | 50*50*10 | black | 12 | 0.18 | 7000 | 16.23 | 6.31 | 38.1 | 20 | |
| CM45010AAB12H | 50*50*10 | red | 12 | 0.15 | 6000 | 14.02 | 4.77 | 33.7 | 20 | |
| CM45010AAB12M | 50*50*10 | green | 12 | 0.10 | 5000 | 11.89 | 3.42 | 30.4 | 20 | |
| CM45010AAB12L | 50*50*10 | blue | 12 | 0.06 | 4000 | 9.38 | 2.19 | 25.2 | 20 | |
| CM45010AAB05U | 50*50*10 | black | 5 | 0.50 | 7000 | 16.23 | 6.31 | 38.1 | 20 | |
| CM45010AAB05M | 50*50*10 | red | 5 | 0.35 | 6000 | 14.02 | 4.77 | 33.7 | 20 | |
| CM45010AAB05M | 50*50*10 | green | 5 | 0.24 | 5000 | 11.89 | 3.42 | 30.4 | 20 | |
| CM45010AAB05L | 50*50*10 | blue | 5 | 0.16 | 4000 | 9.38 | 2.19 | 25.2 | 20 |
