PBT with 30% glass filled UL94-V0
Optional voltage : 5v,12v
Optional Bearing : ball bearing, hydraulic bearing
Optional functions : tachometer output or locked rotor alarm signal; PWM speed control;automatic restart, reverse protection;
Speed Control : PWM control
Speed :Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Resistance: Measured with DC 500V megohmmeter, above 10 MΩ
Insulation Withstand Voltage: AC 500V for 1 minute
Insulation Class: Class B
Permissible Ambient Temperature Range:
During operation: -10°C to +70°C (oil-lubricated); -20°C to +80°C (ball bearing)
During storage: -20°C to +75°C (oil-lubricated); -40°C to +85°C (ball bearing)
Expected Lifespan: 40°C, 20,000 hours (oil-lubricated) , 40°C, 50,000 hours (ball bearing)

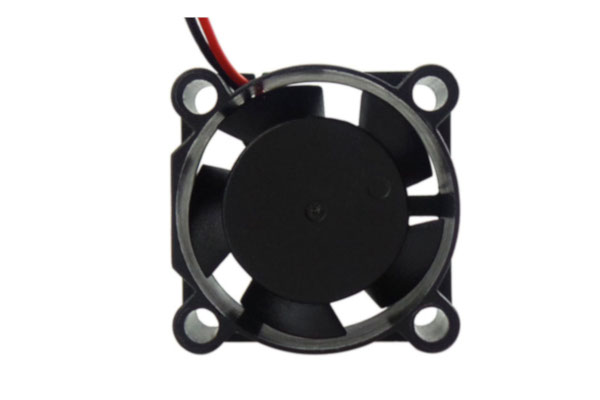

Coolcom burshless DC axial fans offer a wide range of cooling solutions. with large air flow value and low noise level
Suitable for: VR devices, smart rearview mirrors, smart masks, air quality monitors, beauty devices, etc.
| Model | Size(mm) | Curve Color | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CFM) | Pressure(mmh2o) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM2510AB12U | 25*25*10 | black | 12 | 0.06 | 12000 | 2.05 | 7.82 | 32.2 | 7 | |
| CM2510AB12H | 25*25*10 | red | 12 | 0.05 | 10000 | 1.69 | 4.95 | 26.9 | 7 | |
| CM2510AB12M | 25*25*10 | green | 12 | 0.04 | 8000 | 1.35 | 1.81 | 22.7 | 7 | |
| CM2510AB12L | 25*25*10 | blue | 12 | 0.03 | 6000 | 1.04 | 1.32 | 20.8 | 7 | |
| CM2510AB05U | 25*25*10 | black | 5 | 0.14 | 12000 | 2.05 | 7.82 | 32.2 | 7 | |
| CM2510AB05H | 25*25*10 | red | 5 | 0.09 | 10000 | 1.69 | 4.95 | 26.9 | 7 | |
| CM2510AB05M | 25*25*10 | green | 5 | 0.07 | 8000 | 1.35 | 1.81 | 22.7 | 7 | |
| CM2510AB05L | 25*25*10 | blue | 5 | 0.05 | 6000 | 1.04 | 1.32 | 20.8 | 7 |
