Material:

PBT with 30% glass filled UL94-V0

Optional functions:

Motor type : Three-phase BLDC
Optional voltage : 12v,24v,48v

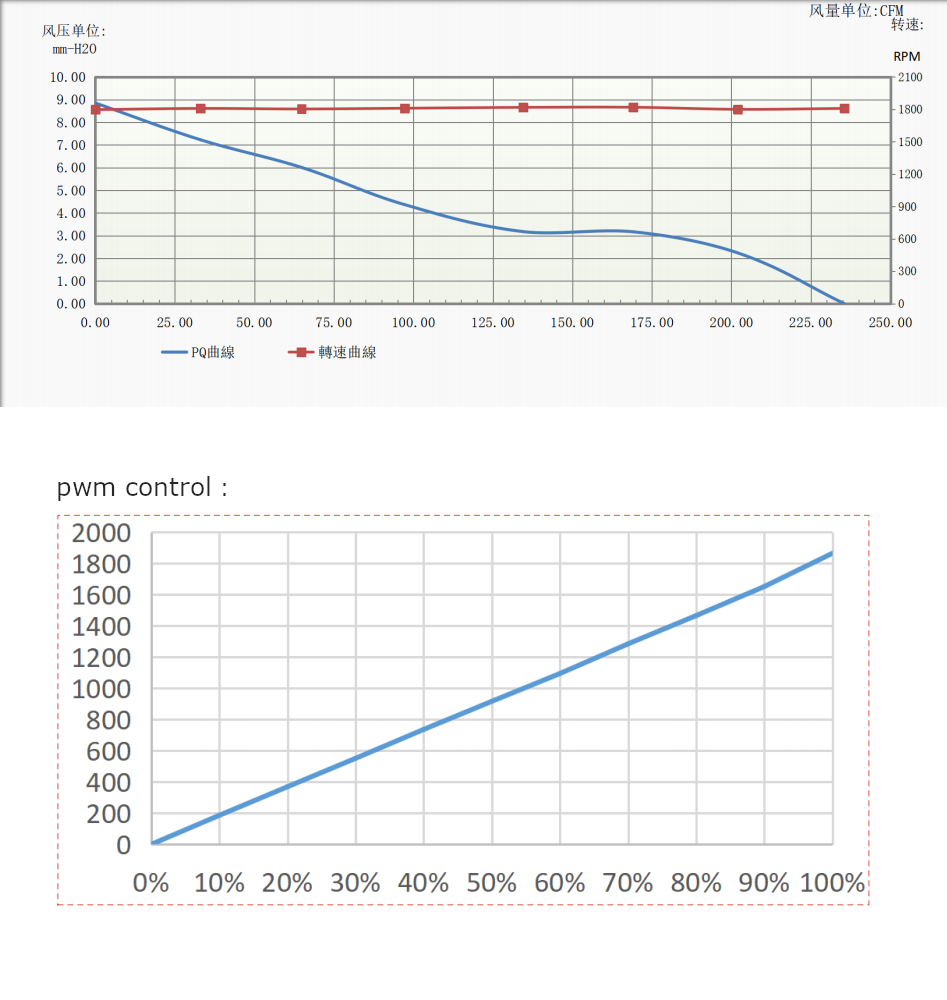

Speed Control : 0-10V / PWM control
Speed : 1800rpm,Customizable according to customer requirements
Certifications: UL, CE, CCC
Insulation Class: Class A
Insulation Strength: 10 MEG OHM MIN. AT 500 VDC(BETWEEN FRAME AND (+) TERMINAL)
DIELECTRIC STRENGTH: 5 mA MAX. AT 500 VAC 60 Hz ONE MINUTE, (BETWEEN FRAME AND (+) TERMINAL
EXTERNAL COVER: OPEN TYPE
LIFE EXPECTANCE: 30,000 HOURS CONTINUOUS OPERATION AT 40 °C WITH 15 ~ 65 %RH
