PBT with 30% glass filled UL94-V0
tachometer output or locked rotor alarm signal; PWM speed control

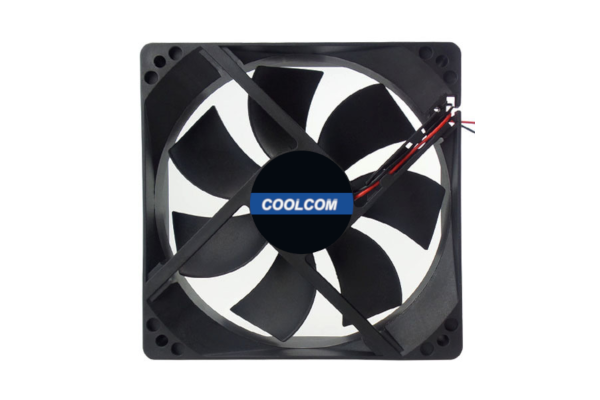

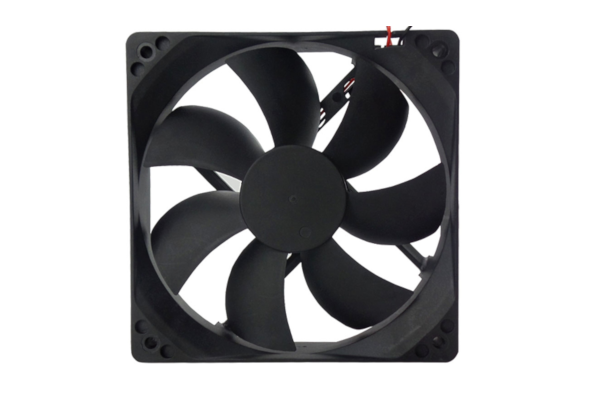

Coolcom burshless DC axial fans with large air flow value , low noise level and long life span , voltage available for 12v ,24v and 48v .provide many optional function to meet with customer's rquirement
| Model | Size | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM1225AS12X | 120*25 | ball or sleeve | 12 | 0.12 | 1500 | 51.39 CFM | 1.63 mmAq | 27 | 92g | |
| CM1225AS12L | 120*25 | ball or sleeve | 12 | 0.16 | 1800 | 61.03 CFM | 2.30 mmAq | 32.2 | 92g | |
| CM1225AS12M | 120*25 | ball or sleeve | 12 | 0.23 | 2100 | 70.69 CFM | 3.08 mmAq | 35.5 | 92g | |
| CM1225AS12H | 120*25 | ball or sleeve | 12 | 0.30 | 2400 | 80.31 CFM | 3.98 mmAq | 39 | 92g | |
| CM1225AS12U | 120*25 | ball or sleeve | 12 | 0.38 | 2700 | 89.94 CFM | 5.00 mmAq | 42.3 | 92g | |
| CM1225AS24X | 120*25 | ball or sleeve | 24 | 0.06 | 1500 | 51.39 CFM | 1.63 mmAq | 27 | 92g | |
| CM1225AS24L | 120*25 | ball or sleeve | 24 | 0.08 | 1800 | 61.03 CFM | 2.30 mmAq | 32.2 | 92g | |
| CM1225AS24M | 120*25 | ball or sleeve | 24 | 0.12 | 2100 | 70.69 CFM | 3.08 mmAq | 35.5 | 92g | |
| CM1225AS24H | 120*25 | ball or sleeve | 24 | 0.15 | 2400 | 80.31 CFM | 3.98 mmAq | 39 | 92g | |
| CM1225AS24U | 120*25 | ball or sleeve | 24 | 0.19 | 2700 | 89.94 CFM | 5.00 mmAq | 42.3 | 92g |
