housing:steel ,impelller:aluminium
FG,PWM or 0-10V voltage speed control

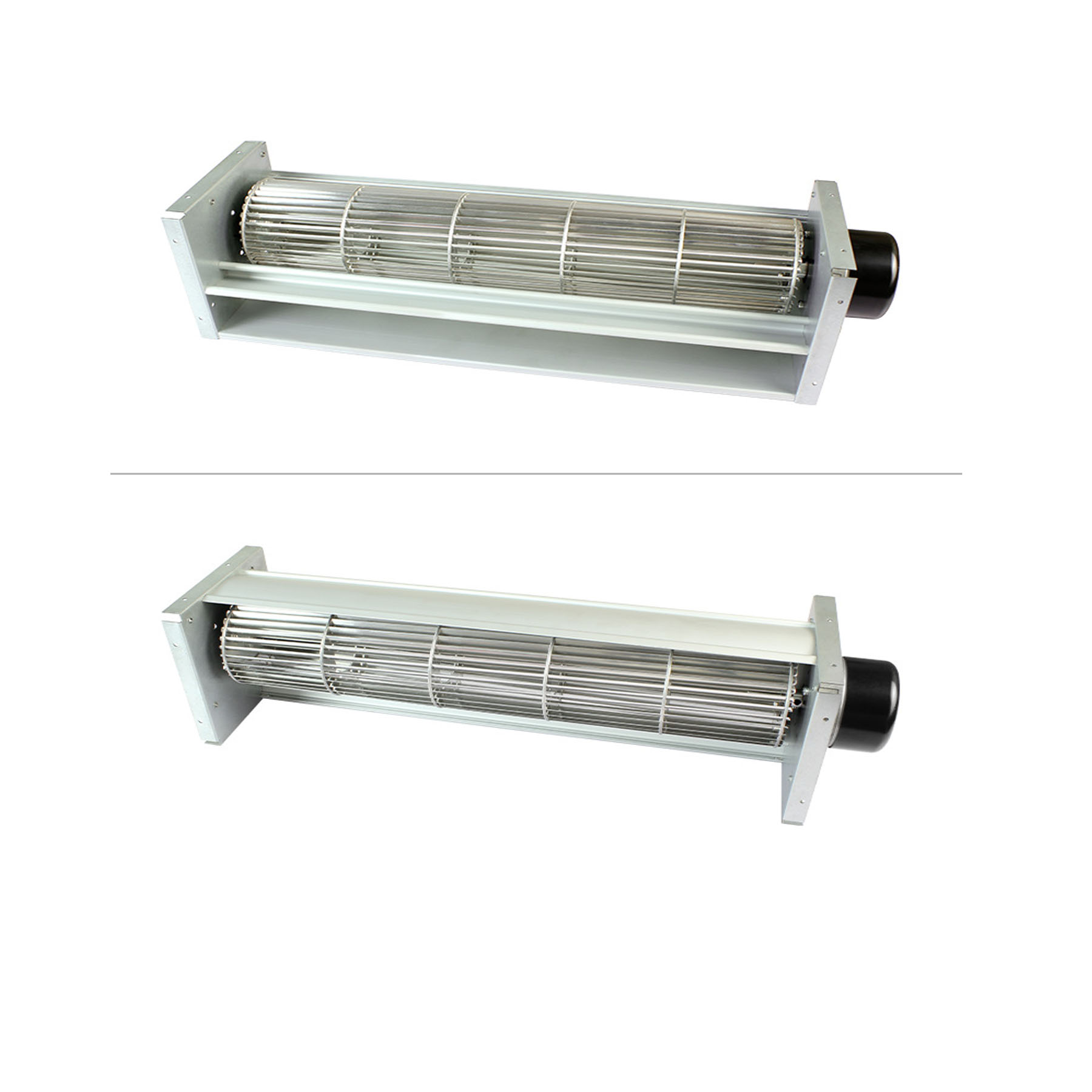

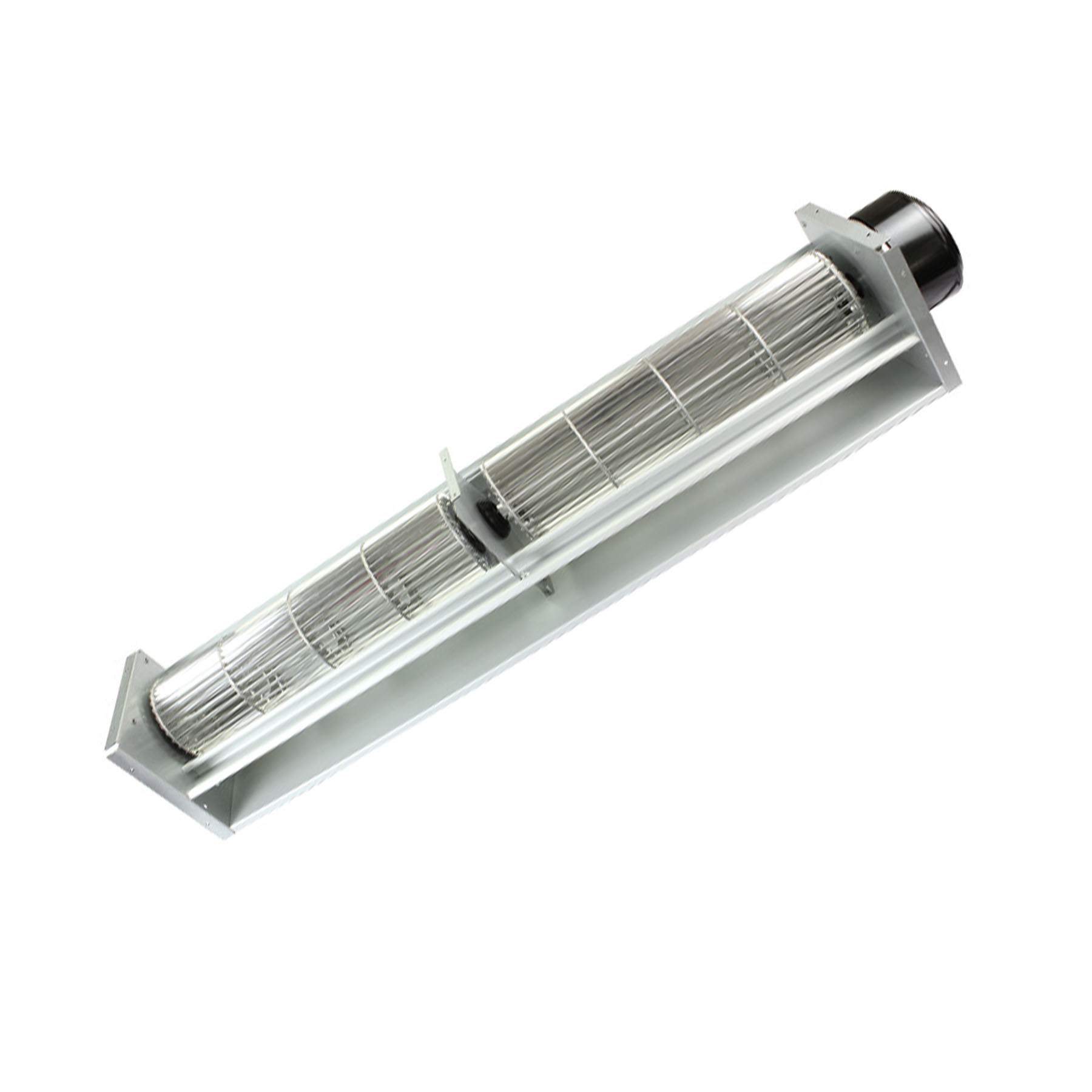

the housing of COOLCOM DC Tangential fan was punching by precision tooling, electrophoresis treatment, delicacy appearance, dynamic balance testing for the aluminum impeller, stable dynamic running, large air volume. cross flow fans produce a laminar airflow and allow for horizontal or vertical mounting. are frequently used in diverse applications ranging from HVAC, electronic systems, heater ,green-house, Radiator, air curtain ,food preparation equipment...
D72 or D92 DC brushless motor ,3phase ,very quiet impeller diameter :80mm fan length ,can be customization ,standard length from 250mm to 1270mm
| Model | Size | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM80250HB24-LL | 80*250 | NMB ball | 24V | 0.8 | 1800 | 380m3/h | 68Pa | 54 | 1.8 | |
| CM80300HB24-LL | 80*300 | NMB ball | 24V | 1.0 | 1800 | 460m3/h | 68Pa | 54 | 1.9 | |
| CM80360HB24-LL | 80*360 | NMB ball | 24V | 1.35 | 1800 | 550m3/h | 68Pa | 54 | 2.0 | |
| CM80420HB24-LL | 80*420 | NMB ball | 24V | 1.5 | 1800 | 650m3/h | 68Pa | 55 | 2.2 | |
| CM80440HB24-LL | 80*440 | NMB ball | 24V | 1.6 | 1800 | 680m3/h | 68Pa | 55 | 2.3 | |
| CM80520HB24-LL | 80*520 | NMB ball | 24V | 1.9 | 1800 | 800m3/h | 68Pa | 56 | 2.5 | |
| CM80620HB24-LL | 80*620 | NMB ball | 24V | 1.9 | 1800 | 960m3/h | 65Pa | 56 | 2.6 | |
| CM80720HB24-LL | 80*720 | NMB ball | 24V | 2.5 | 1600 | 920m3/h | 60Pa | 56 | 2.7 | |
| CM80750HB24-LL | 80*750 | NMB ball | 24V | 2.5 | 1600 | 980m3/h | 60Pa | 56 | 2.9 | |
| CM80820HB24-LL | 80*820 | NMB ball | 24V | 2.8 | 1600 | 1080m3/h | 60Pa | 57 | 3.0 | |
| CM80870HB24-LL | 80*870 | NMB ball | 24V | 3.0 | 1600 | 1115m3/h | 60Pa | 57 | 3.1 | |
| CM801070HB24-LL | 80*1070 | NMB ball | 24V | 3.0 | 1350 | 1400m3/h | 60Pa | 58 | 3.3 | |
| CM801270HB24-LL | 80*1270 | NMB ball | 24V | 3.0 | 1350 | 1680m3/h | 60Pa | 58 | 3.5 |
