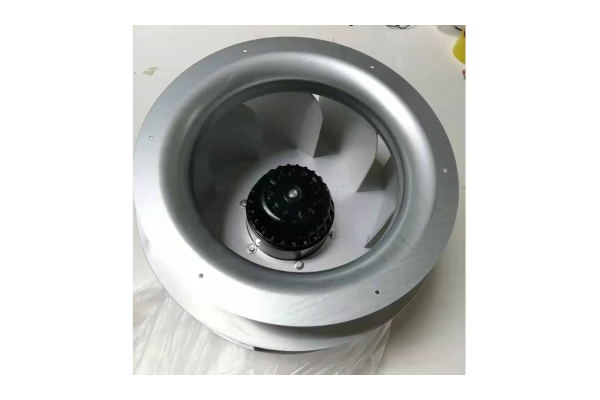

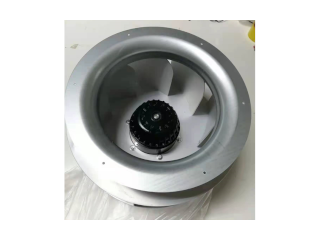

CM400175CB02H

video

Material:

steel

Optional functions:

low ,middle,high speed control
voltage available 110V or 230V or 380V

Features:

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion;

Specifications

Model123 Size1 Bearing Type2 Rated Voltage3 Current4 Speed5 Air Flow6 Pressure7 Noise8 Weight9 Buy it now
CM400175CB04H 400*175mm NMB 400V 0.75A 1380RPM 3950m3/h 400Pa 71dB 9KG
CM400175CB2H 400*175mm NMB 230V 1.8A 1360RPM 3800m3/h 355Pa 70dB 9KG
CM400175CB02M 400*175mm NMB 230V 0.65 910RPM 2680m3/h 190Pa 68dB 9KG

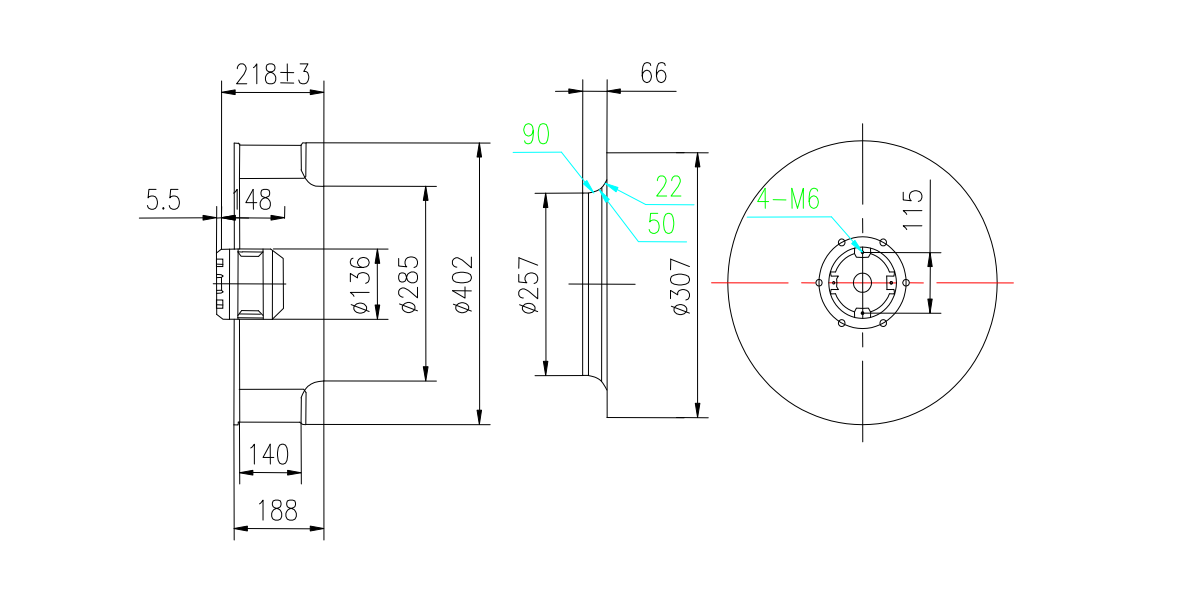

Dimensions

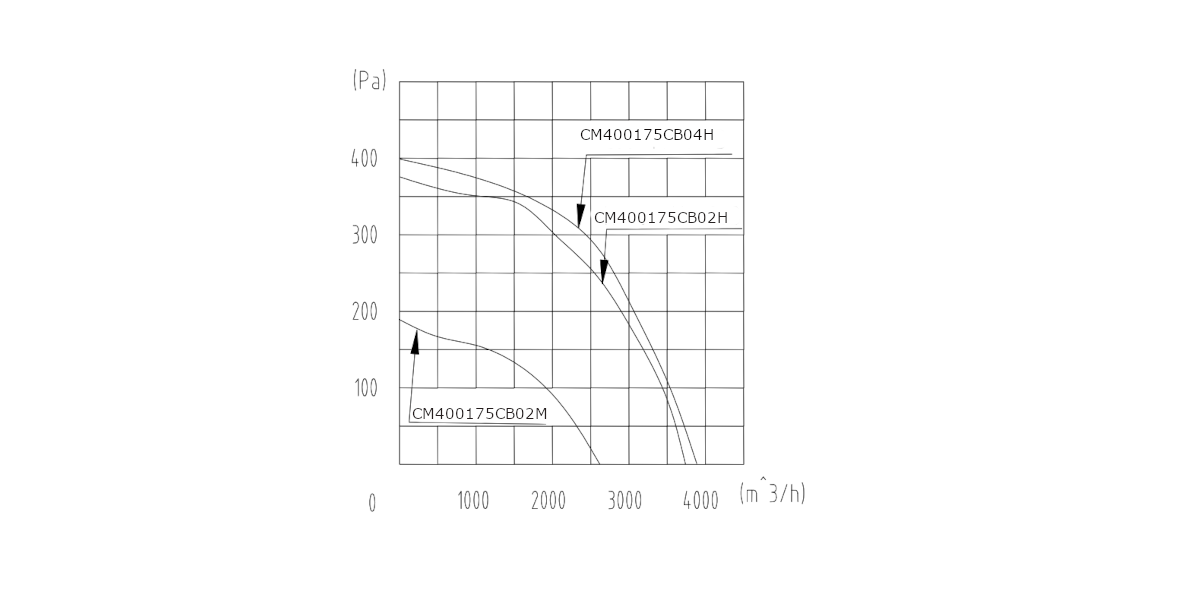

Fan Performance Curve
