impeller: PA66 UL 94-V0, Rotor:costed in black
protection of overland, overvoltage, locked-rotor and polarity, tach output, 0-10V PWM speed control, water proof IP44

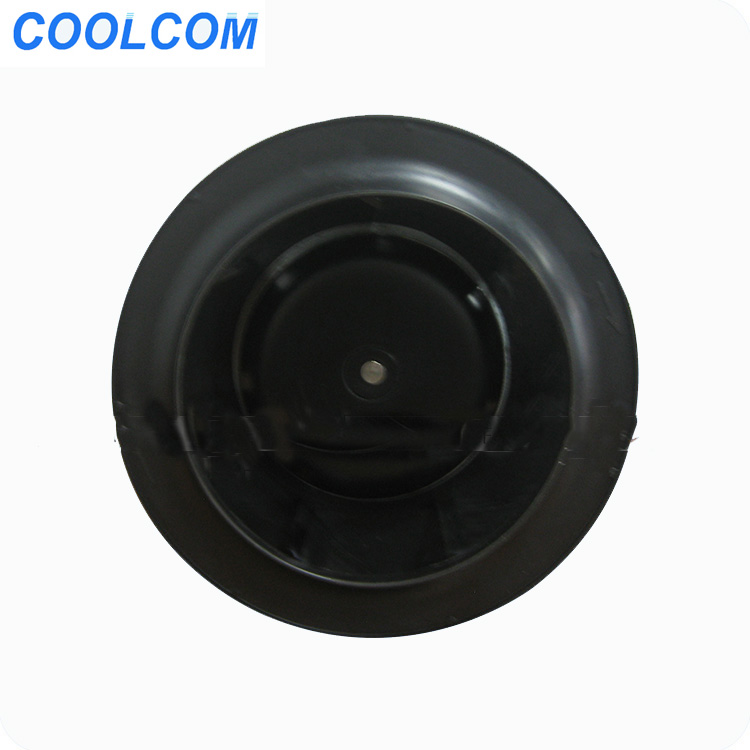

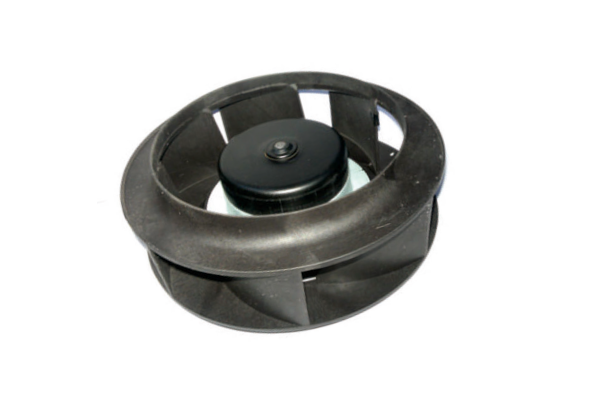

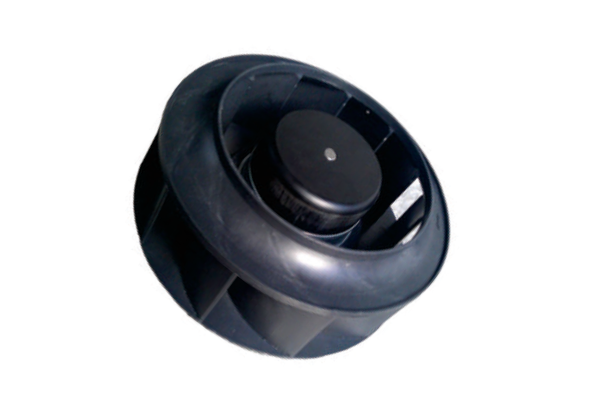

Coolcom backward Curved DC centrifugal fans offer exceptional airflow and pressure performance with a variety of voltage, speed control, and alarm output options.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM133062CB12HB | 133*62 | ball | 12 | 4.4 | 4500 | 230CFM | 470.5 Pa | 66 | 700 | |
| CM133062CB12MB | 133*62 | ball | 12 | 3.1 | 4000 | 205CFM | 368.4 pa | 63 | 700 | |
| CM133062CB12LB | 133*62 | ball | 12 | 2.1 | 3500 | 185CFM | 281.3 Pa | 59.5 | 700 | |
| CM133062CB24HB | 133*62 | ball | 24 | 2.1 | 4500 | 230CFM | 470.5 pa | 66 | 700 | |
| CM133062CB12MB | 133*62 | ball | 24 | 1.5 | 4000 | 205CFM | 368.4 pa | 63 | 700 | |
| CM133062CB12LB | 133*62 | ball | 24 | 1.0 | 3500 | 185CFM | 281.3 Pa | 59.5 | 700 | |
| CM133062CB48HB | 133*62 | ball | 48 | 1.0 | 4500 | 230CFM | 470.5 pa | 66 | 700 | |
| CM133062CB48MB | 133*62 | ball | 48 | 0.7 | 4000 | 205CFM | 368.4 pa | 63 | 700 | |
| CM133062CB48LB | 133*62 | ball | 48 | 0.5 | 3500 | 185CFM | 281.3 Pa | 59.5 | 700 |
