material : steel, aluminum
RD, PWM,FG, water proof, dust proof,

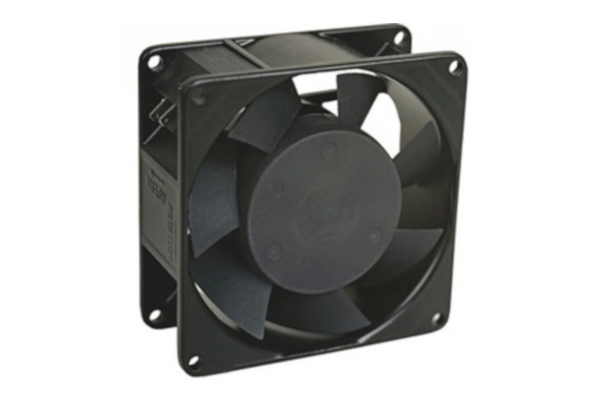

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM9225AS01H | 92*25 | sleeve | 100/125V, 50/60Hz | 0.18/0.16 | 2350/2800 | 30/37 cfm | 34/30 | 380 | ||
| CM9225AS02H | 92*25 | sleeve | 200/240V,50/60Hz | 0.09/0.08 | 2350/2800 | 30/37 cfm | 34/30 | 380 | ||
| CM9225AS02H | 92*25 | sleeve | 100/125V, 50/60Hz | 0.14 | 1800/2300 | 23/30 cfm | 23/30 | 380 | ||
| CM9225AS02M | 92*25 | sleeve | 200/240V,50/60Hz | 0.07 | 1800/2300 | 23/30 cfm | 23/30 | 380 | ||
| CM9225AB01H | 92*25 | ball | 100/125V, 50/60Hz | 200/240V,50/60Hz | 2350/2800 | 30/37 cfm | 34/30 | 380 | ||
| CM9225AB02H | 92*25 | ball | 200/240V,50/60Hz | 0.09/0.08 | 2350/2800 | 30/37 cfm | 34/30 | 380 | ||
| CM9225AB01M | 92*25 | ball | 100/125V, 50/60Hz | 0.14 | 1800/2300 | 23/30 cfm | 23/30 | 380 | ||
| CM9225AB02M | 92*25 | ball | 200/240V,50/60Hz | 0.07 | 1800/2300 | 23/30 cfm | 23/30 | 380 |
