material : steel, aluminum
RD, PWM,FG, water proof, dust proof,

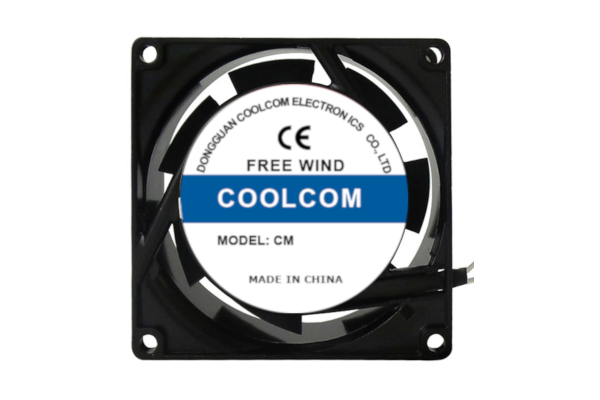

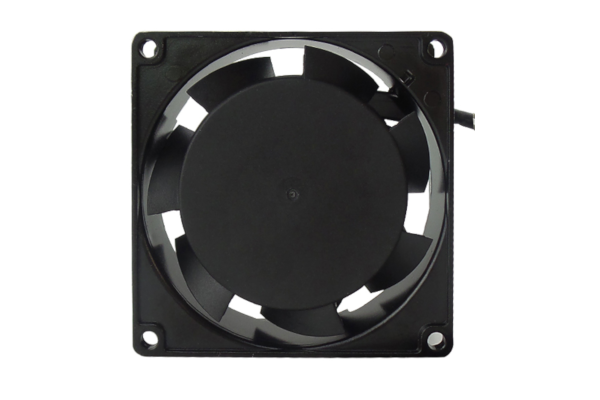

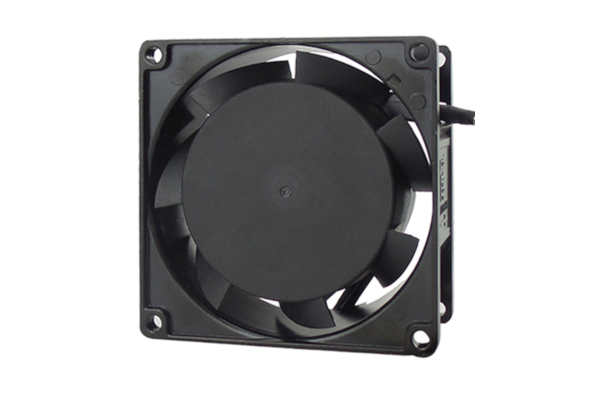

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM8038AS01H | 80*25 | sleeve | 100/125V, 50/60Hz | 0.2 | 2550/3100 | 23/28 cfm | 28/32 dBa | 360 | ||
| CM8038AS02H | 80*25 | sleeve | 200/240V,50/60Hz | 0.06/0.05 | 2550/3100 | 23/28 cfm | 28/32 dBa | 360 | ||
| CM8038AS01M | 80*25 | sleeve | 100/125V, 50/60Hz | 0.13 | 2300/2700 | 22/26 cfm | 26/30 dBA | 360 | ||
| CM8038AS02M | 80*25 | sleeve | 200/240V,50/60Hz | 0.065 | 2300/2700 | 22/26cfm | 26/30 dBA | 360 | ||
| CM8038AB01H | 80*25 | ball | 100/125V, 50/60Hz | 0.2 | 2550/3100 | 23/28 cfm | 28/32 dBa | 360 | ||
| CM8038AB02H | 80*25 | ball | 200/240V,50/60Hz | 0.06/0.05 | 2550/3100 | 23/28 cfm | 28/32 dBa | 360 | ||
| CM8038AB01M | 80*25 | ball | 100/125V, 50/60Hz | 0.13 | 2300/2700 | 22/26 cfm | 26/30 dBA | 360 | ||
| CM8038AB02M | 80*25 | ball | 200/240V,50/60Hz | 0.065 | 2300/2700 | 22/26 cfm | 26/30 dBA | 360 |
