material : steel, aluminum
RD, PWM,FG, water proof, dust proof,

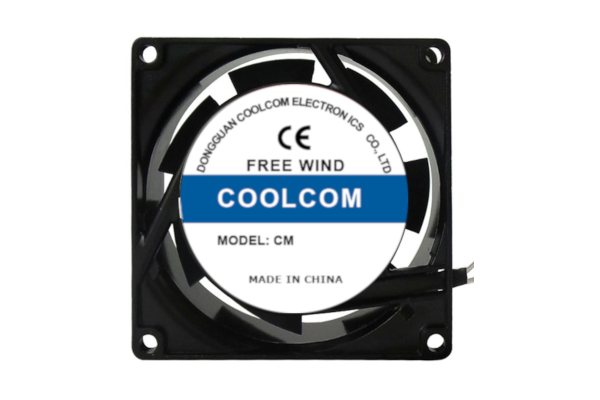

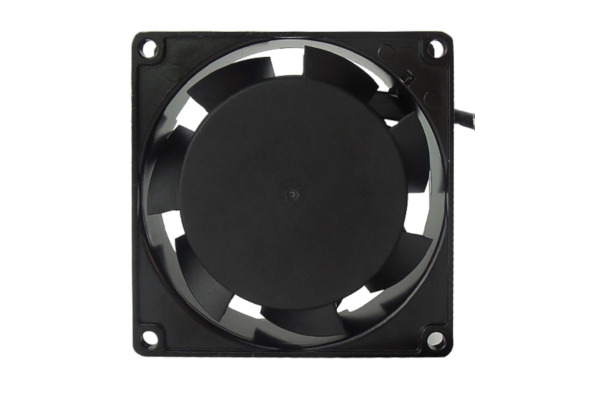

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM8025AS01H | 80*25 | sleeve | 110/125V, 50/60Hz | 0.09 | 2300/2750 | 19/23 cfm | 32/39 | 26/33 dBA | 320G | |
| CM8025AS02H | 80*25 | sleeve | 200/240V, 50/60Hz | 0.09 | 2300/2750 | 19/23 cfm | 32/39 | 26/33 dBA | 320G | |
| CM8025AB01H | 80*25 | ball | 110/125V, 50/60Hz | 0.09 | 2300/2750 | 19/23 cfm | 32/39 | 26/33 dBA | 320G | |
| CM8025AB02H | 80*25 | ball | 200/240V, 50/60Hz | 0.09 | 2300/2750 | 19/23 cfm | 32/39 | 26/33 dBA | 320G |
