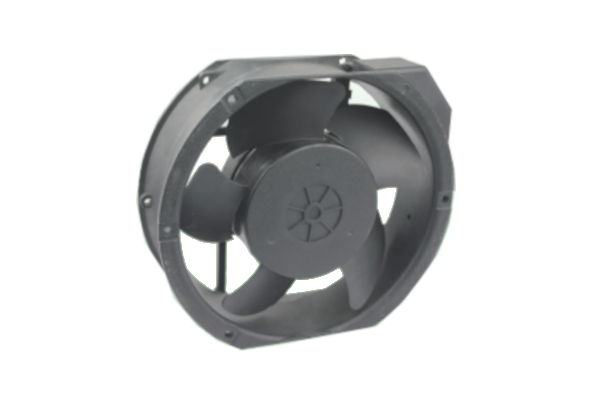

ACfan CM17050-AC series

video

Material:

material : steel, aluminum

Optional functions:

RD, PWM,FG, water proof, dust proof,

Features:

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.

Specifications

Model Size(mm) Bearing Type Rated Voltage(V) Current(A) Speed(RPM) Air Flow(CMF) Pressure(mmH2O) Noise(db) Weight(g) Buy it now
CM17050AB01H-C 172*150*51 ball 100/125,50/60Hz 0.22/0.25, 25/27W 2850/3300 210/245 CFM 51/58
CM17050AB02H-C 172*150*51 ball 200/240,50/60Hz 0.11/0.11,25/27W 2850/3300 210/245 CFM 51/58

Dimensions

Fan Performance Curve
