material : steel, aluminum
RD, PWM,FG, water proof, dust proof,

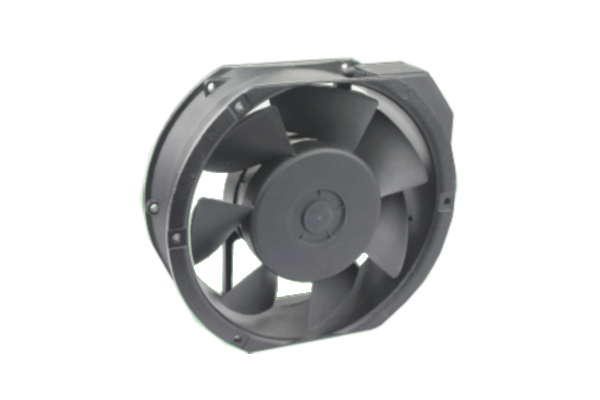

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM17050AB01H-7 | 172*150*51 | ball bearing | 100/125V,50/60Hz | 0.50/0.45A, 37/36W | 2600/3000 | 200/245 CFM | 46/52 | |||
| CM17050AB02H-7 | 172*150*51 | ball bearing | 200/240V,50,60Hz | 0.22/0.21A, 34/33W | 2600/3000 | 200/245 CFM | 46/52 | |||
| CM17050AB03H-7 | 172*150*51 | ball bearing | 380/420V, 50Hz | 0.11A, 34W | 2600 | 200 CFM | 46 |
