material : steel, aluminum
RD, PWM,FG, water proof, dust proof,

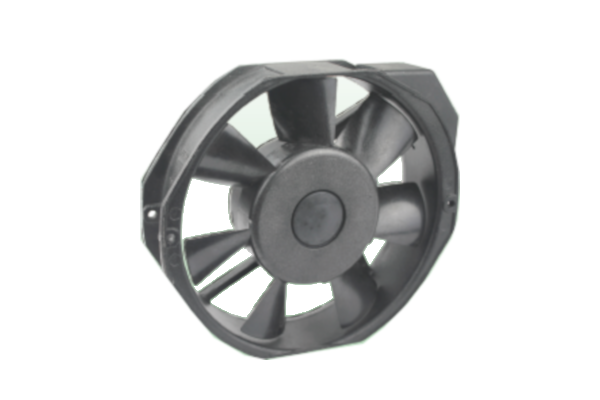

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM17040AB01H-7 | 170*40 | ball (1phase) | 100/125V, 50/60Hz | 0.31/0.3A, 29W | 2750/3000 | 220/235 CFM | 56/60 | |||
| CM17040AB02H-7 | 170*40 | ball (1phase) | 200/240V,50/60Hz | 0.18A, 33W | 2750/3000 | 220/235 CFM | 56/60 | |||
| CM17040AB03H-7 | 170*40 | ball (3phase) | 380/420V,50/60Hz | 0.1A,33W | 2600/3000 | 220/235 CFM | 56/60 | |||
| CM17040AB04H-7 | 170*40 | ball (1phase) | 380/420, 50/60Hz | 0.08A, 33W | 2600/3000 | 220/235 CFM | 56/60 |
