material : steel, aluminum
RD, PWM,FG, water proof, dust proof,

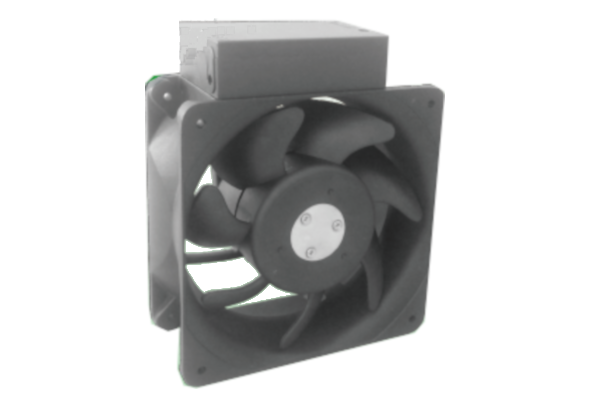

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM16062AB01H | 160*62 | ball bearing | 100/125,50/60Hz | 0.4A,40W | 2600/3000 | 260/300 CFM | 54/59 | |||
| CM16062AB02H | 160*62 | ball bearing | 200/240V,50/60Hz | 0.15A,32W | 2750/3000 | 260/300 CFM | 54/59 | |||
| CM16062AB01M | 160*62 | ball bearing | 100/125,50/60Hz | 0.35A,35W | 2300/2600 | 220/225 CFM | 50/54 | |||
| CM16062AB01M | 160*62 | ball bearing | 200/240V,50/60hz | 0.18A,35W | 2300/2600 | 220/225 CFM | 50/54 |
