material : steel, aluminum
RD, PWM,FG, water proof, dust proof,

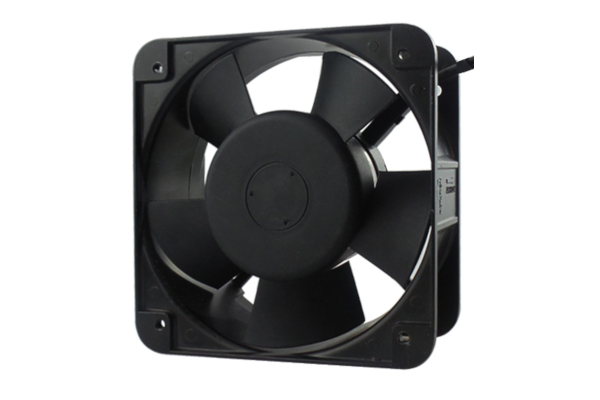

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM15050AS01H | 150*50 | sleeve | 100/125V, 50/60Hz | 0.40 | 2600/2900 | 190/210 CFM | 53/59 | 500g | ||
| CM15050AS02H | 150*50 | sleeve | 200/240V,50/60Hz | 0.19 | 2600/2900 | 190/210 CFM | 53/59 | 500g | ||
| CM15050AS01M | 150*50 | sleeve | 100/125V, 50/60Hz | 0.35 | 2200/2600 | 170/190 CFM | 49/54 | 500g | ||
| CM15050AS02M | 150*50 | sleeve | 200/240V,50/60Hz | 0.19 | 2200/2600 | 170/190 CFM | 49/54 | 500g | ||
| CM15050AB01H | 150*50 | ball | 100/125V, 50/60Hz | 0.40 | 2600/2900 | 190/210 CFM | 53/59 | 500g | ||
| CM15050AB02H | 150*50 | ball | 200/240V,50/60Hz | 0.19 | 2600/2900 | 190/210 CFM | 53/59 | 500g | ||
| CM15050AB01M | 150*50 | ball | 100/125V, 50/60Hz | 0.35 | 2200/2600 | 170/190 CFM | 49/54 | 500g | ||
| CM15050AB02M | 150*50 | ball | 200/240V,50/60Hz | 0.19 | 2200/2600 | 170/190 CFM | 49/54 | 500g |
