material : steel, aluminum
RD, PWM,FG, water proof, dust proof,

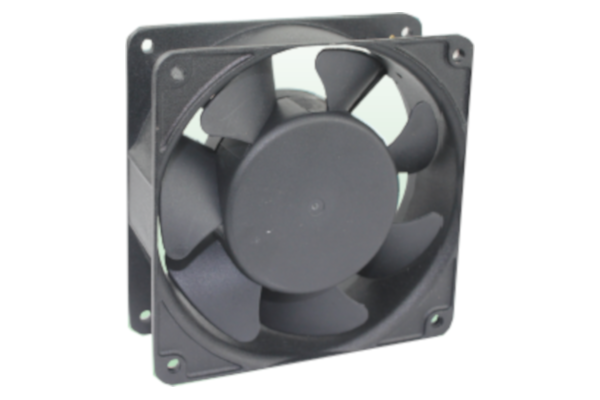

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM12038AS01H-7 | 120*38 | sleeve | 100/125V,50/60Hz | 0.30 | 2600/3000 | 99/112 CFM | 39/44 | 440g | ||
| CM12038AS02H-7 | 120*38 | sleeve | 200/240V, 50/60Hz | 0.18/0.15 | 2600/3000 | 99/112 CFM | 39/44 | 440g | ||
| CM12038AS01M-7 | 120*38 | sleeve | 100/125V,50/60Hz | 0.25 | 2450/2700 | 91/100 CFM | 38/42 | 440g | ||
| CM12038AS02M-7 | 120*38 | sleeve | 200/240V, 50/60Hz | 0.16 | 2450/2700 | 91/100 CFM | 38/42 | 440g | ||
| CM12038AS01L-7 | 120*38 | sleeve | 100/125V,50/60Hz | 0.20 | 2100/2450 | 78/91 CFM | 35/40 | 440g | ||
| CM12038AS02L-7 | 120*38 | sleeve | 200/240V, 50/60Hz | 0.10 | 2100/2450 | 78/91 CFM | 35/40 | 440g | ||
| CM12038AB01H-7 | 120*38 | ball | 100/125V,50/60Hz | 0.30 | 2600/3000 | 99/112 CFM | 39/44 | 440g | ||
| CM12038AB02H-7 | 120*38 | ball | 200/240V, 50/60Hz | 0.18/0.15 | 2600/3000 | 99/112 CFM | 39/44 | 440g | ||
| CM12038AB01M-7 | 120*38 | ball | 100/125V,50/60Hz | 0.25 | 2450/2700 | 91/100 CFM | 39/42 | 440g | ||
| CM12038AB02M-7 | 120*38 | ball | 200/240V, 50/60Hz | 0.26 | 2450/2700 | 91/100 CFM | 39/42 | 440g | ||
| CM12038AB01L-7 | 120*38 | ball | 100/125V,50/60Hz | 0.20 | 2100/2450 | 78/91 CFM | 35/38 | 440g | ||
| CM12038AB02L-7 | 120*38 | ball | 200/240V, 50/60Hz | 0.10 | 2100/2450 | 78/91 CFM | 35/38 | 440g |
