material : steel, aluminum
RD, PWM,FG, water proof, dust proof,

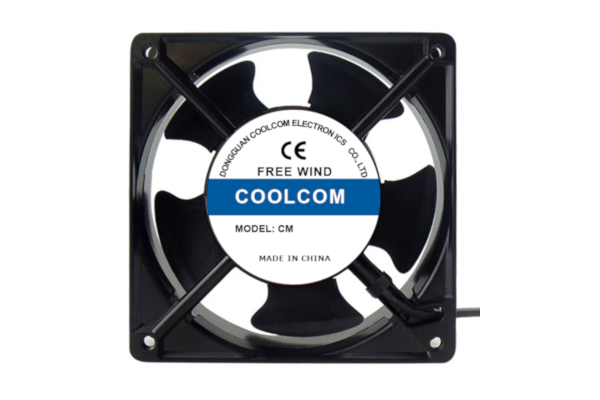

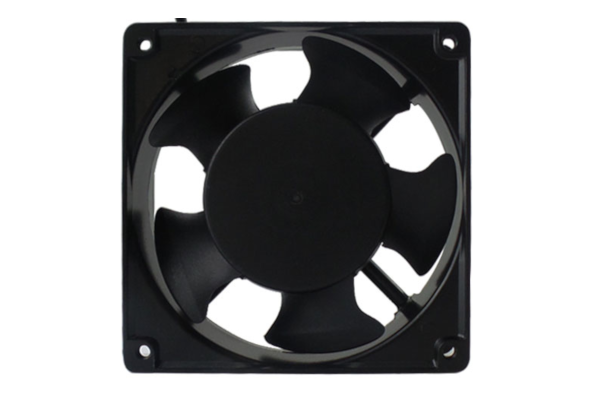

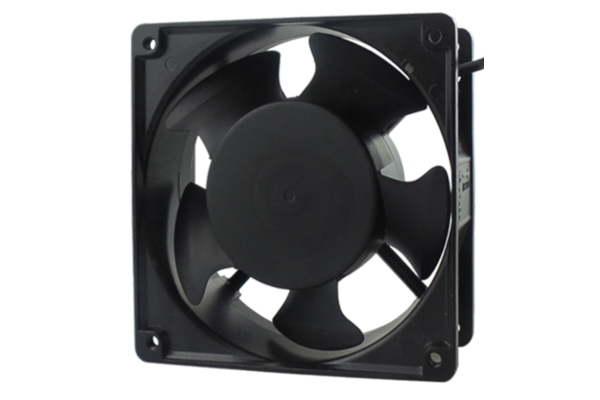

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM12038AB01H | 120*120*38 | ball bearing | 100/125v; 50/60Hz | 0.4/0.33A | 2600/3000RPM | 93/98CFM | / | 43/48DB | 800g | |
| CM12038AB02H | 120*120*38 | ball bearing | 200/240v;50/60Hz | 0.15/0.12A | 2600/3000RPM | 93/98CFM | / | 43/48DB | 800g | |
| CM12038AB03H | 120*120*38 | ball bearing | 380/420V;50/60Hz | 0.1A | 2600/3000RPM | 93/98CFM | / | 43/48DB | 800g | |
| CM12038AB01M | 120*120*38 | ball bearing | 100/125V;50/60Hz | 0.22A | 2200/2600RPM | 76/94CFM | / | 39/44DB | 800g | |
| CM12038AB02M | 120*120*38 | ball bearing | 200/240V;50/60Hz | 0.11 | 2200/2600RPM | 76/94CFM | / | 39/44DB | 800g |
