material : steel, aluminum
RD, PWM,FG, water proof, dust proof,

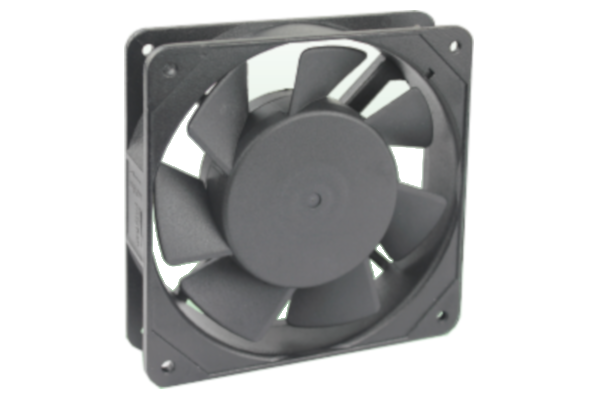

COOLCOM AC Axial fan with absolutely advantages on noise, air value and effciency , offering provides many options to meet your thermal management requirements. option function including : 1. multiple voltage applicatrion; 2, Environmental protection options available including conformal coating or IP55 encapsulation; 3. High temperature models for operation up to 90 degrees C. 4. Custom designs welcome.
| Model | Size(mm) | Bearing Type | Rated Voltage(V) | Current(A) | Speed(RPM) | Air Flow(CMF) | Pressure(mmH2O) | Noise(db) | Weight(g) | Buy it now |
|---|---|---|---|---|---|---|---|---|---|---|
| CM12025AS01H | 120*25 | sleeve | 100/125V,50/60Hz | 0.31/0.28 | 2300/2700 | 66/78 CFM | 38/41 | 420g | ||
| CM12025AS02H | 120*25 | sleeve | 200/240V,50/60Hz | 0.09/0.08 | 2300/2700 | 66/78 CFM | 38/41 | 420g | ||
| CM12025AS01M | 120*25 | sleeve | 100/125V,50/60Hz | 0.16 | 1800/2300 | 50/56 CFM | 30/38 | 420g | ||
| CM12025AS02M | 120*25 | sleeve | 200/240V,50/60Hz | 0.08 | 1800/2300 | 50/56 CFM | 30/38 | 420g | ||
| CM12025AB01H | 120*25 | ball | 100/125V,50/60Hz | 0.31/0.28 | 2300/2700 | 66/78 CFM | 38/41 | 420g | ||
| CM12025AB02H | 120*25 | ball | 200/240V,50/60Hz | 0.09/0.08 | 2300/2700 | 66/78 CFM | 38/41 | 420g | ||
| CM12025AB01M | 120*25 | ball | 100/125V,50/60Hz | 0.16 | 1800/2300 | 50/56 CFM | 30/38 | 420g | ||
| CM12025AB02M | 120*25 | ball | 200/240V,50/60Hz | 0.08 | 1800/2300 | 50/56 CFM | 30/38 | 420g |
